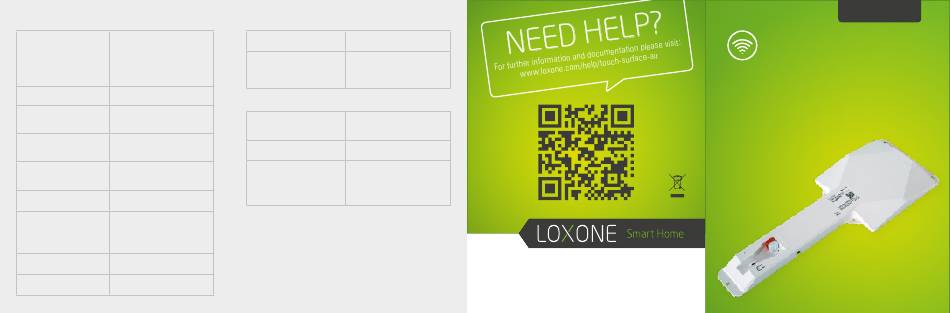

Technical Specifications
Stone, Wood, Ceramic or Glass
– Please note that this product
Surface Material
will not work with conductive
materials.
Surface Thickness
max. 30mm / 1 3/16"
9...28VDC SELV or Battery Pack
Power Supply
(Not included)
Power Consumption
typ. 67mW, max. 133mW
SELV Powered
(when LEDs on)
Power Consumption
typ. 0.25mW, max. 100mW
Battery Powered
(when LEDs on)
Battery Lifetime
Approx. 2 years
868MHz (SRD Band Europe),
Radio Frequency
915MHz (ISM Band Region 2)
Ambient Temperature
0...55°C / 32...131°F
Humidity
95% r. H. (non condensing)
Safety Rating
IP20
This device is free of
Maintenance & Cleaning
maintenance and may only be
cleaned with a dry cloth.
Connection
0.14...1mm
/
2
Wire Diameter
AWG18...AWG25
Exposed Wire Length
7mm / 9/32"
To make a connection, insert
the wire; to remove the wire
Push-In-Technology
twist and pull at the same
time.
Information
Contains FCC ID: COR-ZWIR4512AC1
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including
interference that may cause undesired operation
Get in touch!
office@loxone.com
www.loxone.com/contact
www.loxone.com

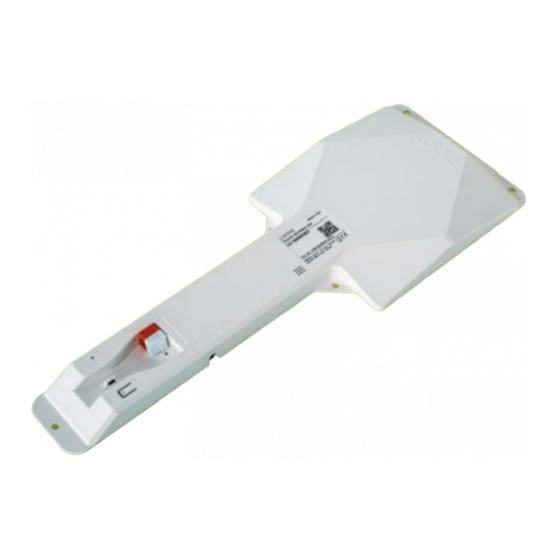

touch
surface air
part no.: 100285
