User Manual EtherCAT Slave / PROFINET Slave
Document code: MN67E23_ENG
Revision 1.000
Page 11 of 28
Industrial Electronic Devices
ETHERNET:

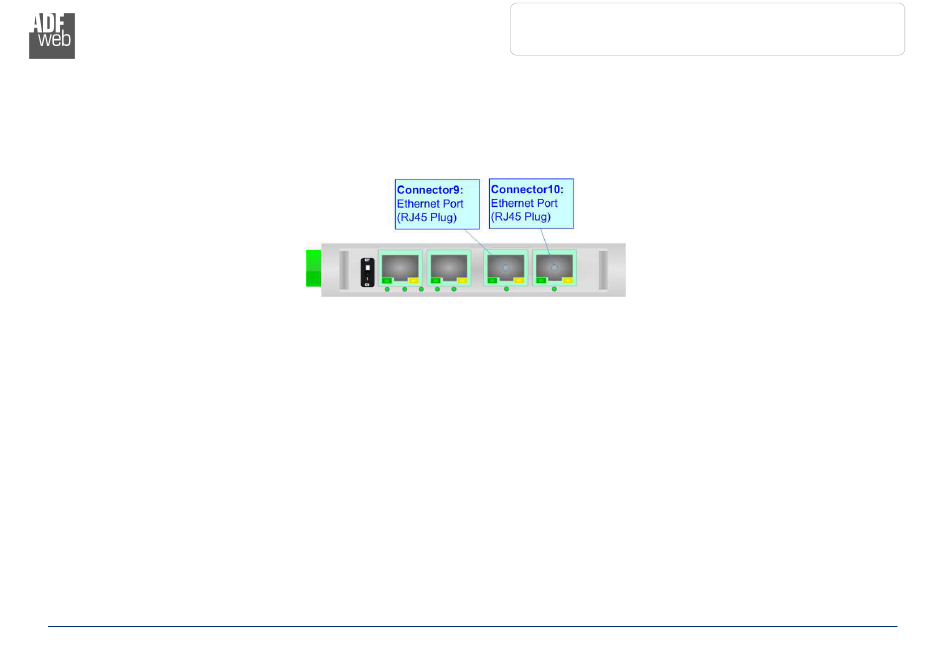

PROFINET connection and the updating of the converter must be made using Connector9 and/or Connector10 of the HD67E23-A1 with at
least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative
to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the
device to a PC/PLC/other is recommended the use of a cross cable.
