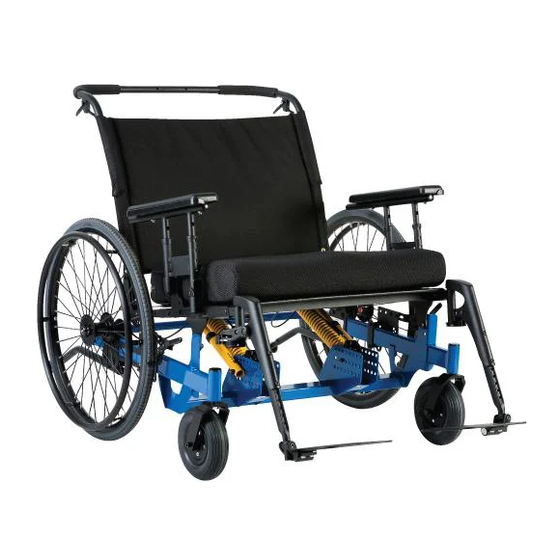

Eclipse Tilt – bariatric wheelchair with tilt
Manuel wheelchair in timeless design intended for users up to 270 kg.
Equipped with tilt function, which ensures individual optimal comfort
and positioning. Possibility of adjusting height and seat depth.
Eclipse Tilt Wheelchair is intended users in need of a comfort wheelchair in care
centers, hospitals and private homes.
•
Used in rehabilitation of the mobile user.
•
Possible to adjust the seat depth and angle
of the backrest.
•
Tilt function up to 30
˚.
Cobi Rehab and Cobi Rehab suppliers comply with the UN conventions
UP TO 270 kg
•
Extended armrests (accessory) make it
easier to get in or out the wheelchair.
•
Disinfectable.
•
Fits through most doorways.
on child labour and forced labour as well as ILO 029, C132 and C182.
Advertisement
Table of Contents
Related Manuals for Cobi Rehab Eclips Tilt
Summary of Contents for Cobi Rehab Eclips Tilt
- Page 1 Disinfectable. • • Tilt function up to 30 Fits through most doorways. ˚. Cobi Rehab and Cobi Rehab suppliers comply with the UN conventions on child labour and forced labour as well as ILO 029, C132 and C182.
-
Page 2: Table Of Contents
Table of content 1. Safety ......................................... 3 2. Symbols ......................................5 3. General comments ..................................6 4. Use ........................................6 5. Construction ....................................7 6. Assembly and adjustment ............................... 9 7. Component overview ................................14 8. Cleaning and maintenance ..............................15 9. -
Page 3: Safety
Read this user manual carefully before using the Eclipse Tilt Wheelchair. Pay particular attention to Safety Instructions marked Cobi Rehab assumes no responsibility for any damage to the product nor for personal injury caused by incorrect installation, incorrect mounting, or incorrect use of the Eclipse Tilt Wheelchair. - Page 4 SAFETY INSTRUCTIONS, continued Only use the Eclipse Tilt Wheelchair on even surface. Do not use the Eclipse Tilt Wheelchair on ramps or slopes that slope more than 10°. Do not drive on ramps or slopes covered with ice, oil, or water. Do not lift the Eclipse Tilt Wheelchair in the detachable parts (armrests, wheels, backrests, footrests, etc.).
-
Page 5: Symbols
2. Symbols The following symbols are used in this user manual and/or on the product label. Caution! Declaration of conformity, Medical Device Regulation, EU 2017/745 Manufacturer Medical device CE label on the product is located on frame. See example of labels below. | 2021-08 User manual Eclipse Tilt Wheelchair... -
Page 6: General Comments
3. General comments This user manual contains important information Cobi Rehab reserves the right to change the about the use of Eclipse Tilt Wheelchair and the product specifications without providing prior target group for the wheelchair. It also includes a notice. -
Page 7: Construction
5. Construction Eclipse Tilt Wheelchair is a manual fixed frame wheelchair built with a strong steel frame, which provides maximum strength, rigidity, and long durability. It is designed so most of the user's weight rests on the rear wheels. The tires are massive making propulsion and steering easy. - Page 8 Stability and balance Always keep the wheelchair as stable as possible, so proper balance is maintained. The wheelchair is designed to stay upright during normal everyday activities if user do not move beyond the centre of gravity. Safe handling of Eclipse Tilt Wheelchair Many activities will require user to reach, lean or transfer in and out of the wheelchair.
-
Page 9: Assembly And Adjustment
Make damp. sure the bolts are the same on both sides. Cobi Rehab or other professionals can adjust the height of the back frame by shortening the pipes to the desired length with a scraper or pipe cutter. - Page 10 Assembly and adjustment, continued 6.3 Armrests Adjusting Armrests Height Armrest upholstery Unlock the armrest by pressing the black release If the padding is cracked or the mounting screws button at the top of the front of the armrest while are not covered, replace the padding immediately. moving the armrest up or down.
- Page 11 Assembly and adjustment, continued 6.5 Removing/Installing the Rear Wheels/Axles The rear wheels are removed with a 3/4 ”socket wrench and a 3/4” fork wrench. When the wheelchair is equipped with axle bolts, the heads of the axle bolts must be located on the inside of the frame with the nuts mounted on the outside of the rear wheel hubs.
- Page 12 Assembly and adjustment, continued 6.7 Seat-to-Floor Height 1. Remove the grub bolts that secure the upper All screws and nuts must be assembled seat frame to the lower base frame; there are two correctly. Allen bolts located on the outside of the seating plate (one screw on each side).
- Page 13 6.10 Adjustable gas strut and cable assembly Adjusting the cable tension If the wheelchair tilts (while the user is sitting in it), even if the tilt lever is not activated and if the wheelchair does not tilt, even if the tilt lever is activated, it is because the cable "stretches"...
-
Page 14: Component Overview
7. Component overview 1. Removable Armrest 8. Rear Wheels 2. Wheel Lock 9. Push handle 3. Gas Strut Assembly (yellow spring) 10. Backrest 4. Swing Away Front Rigging 11. Rear Axle Bolt 5. Footrest 12. Lower frame 6. Front Castors 13. -
Page 15: Cleaning And Maintenance
8. Cleaning and maintenance Eclipse Tilt Wheelchair’s seat, frame, backrest Maintenance upholstery and push handles can be cleaned with 1. Check all nuts and bolts are tight before using water and an ordinary detergent. the Eclipse Tilt Wheelchair. Check all parts for Wet or damp backrest upholstery will reduce wear and damage and replace parts where... -
Page 16: Recycling And Disposal
Cobi Rehab can always make such an assessment. cannot guarantee the suitability and safety of the product, as Cobi Rehab has no control over how the product is used and wear and tear. The overall assessment of the product must be... -
Page 17: Specifications
12. Specifications Maximum user weight 270 kg Risk class Basic UDI 13829 Expected product service life Minimum years Crash tested Yes, according to ISO 7176-19 Seat depth 410 - 560 mm Seat width 550 - 820 mm Seat height 410 – 510 mm Strap back rest Polypropylene Back angle... -
Page 18: Accessories And Spare Parts
Armrest 50 cm, left 0120-999-008 Footrest swing away left 0120-999-009 Footrest swing away right 0120-999-006 Footrest elevation, right 0120-999-007 Footrest elevation, left 0120-999-065 For other spare parts please contact Cobi Rehab +45 7025 2522 or cobi@cobi.dk | 2021-08 User manual Eclipse Tilt Wheelchair... -
Page 19: Troubleshooting
14. Troubleshooting Problems Solutions Slow turning or driving The front castors vibrate Check if nuts and screws are loose The wheelchair creaks and rattles The wheelchair seems loose The wheelchair pulls to the right The wheelchair pulls to the left Check the angle of the front castors Slow turning or driving The front castors vibrate... - Page 20 MANUFACTURER DEALER PDG Mobility PDG Product Design Group Inc. Cobi Rehab Fuglebækvej 1D #103-318 East Kent Avenue South, DK-2770 Kastrup Vancouver Denmark BC V5X 4N6 +45 7025 2522 Tel.: (604) 323-9220 cobirehab.com Fax: (604) 323-9097 E-mail: info@pdgmobility.com www.pdgmobility.com | 2021-08 User manual...
