Burner Head
for PRESTIGE SOLO 399
Kit Part Number: PSRKIT38
Parts List (Fig.1)
1. Burner Head
2. Burner Head Gasket
3. 8 -Stainless Steel Phillips Screws. (For attach-
ing the new burner head to the burner mounting
plate.)
Recommended tools:
A. Pipe Wrench.
B. Phillips Screw Driver.
C. 10 mm Socket and/or 10 mm Wrench.
D. Flat Blade Putty Knife.
WARNING
Indicates a potentially hazardous situation
which, if ignored, can result in serious
injury or substantial property damage.
WARNING
For your safety, turn off electrical power
supply at service panel and allow unit to cool
before proceeding. Failure to do so can cause
severe personal injury or death.
Replacement Kit
1

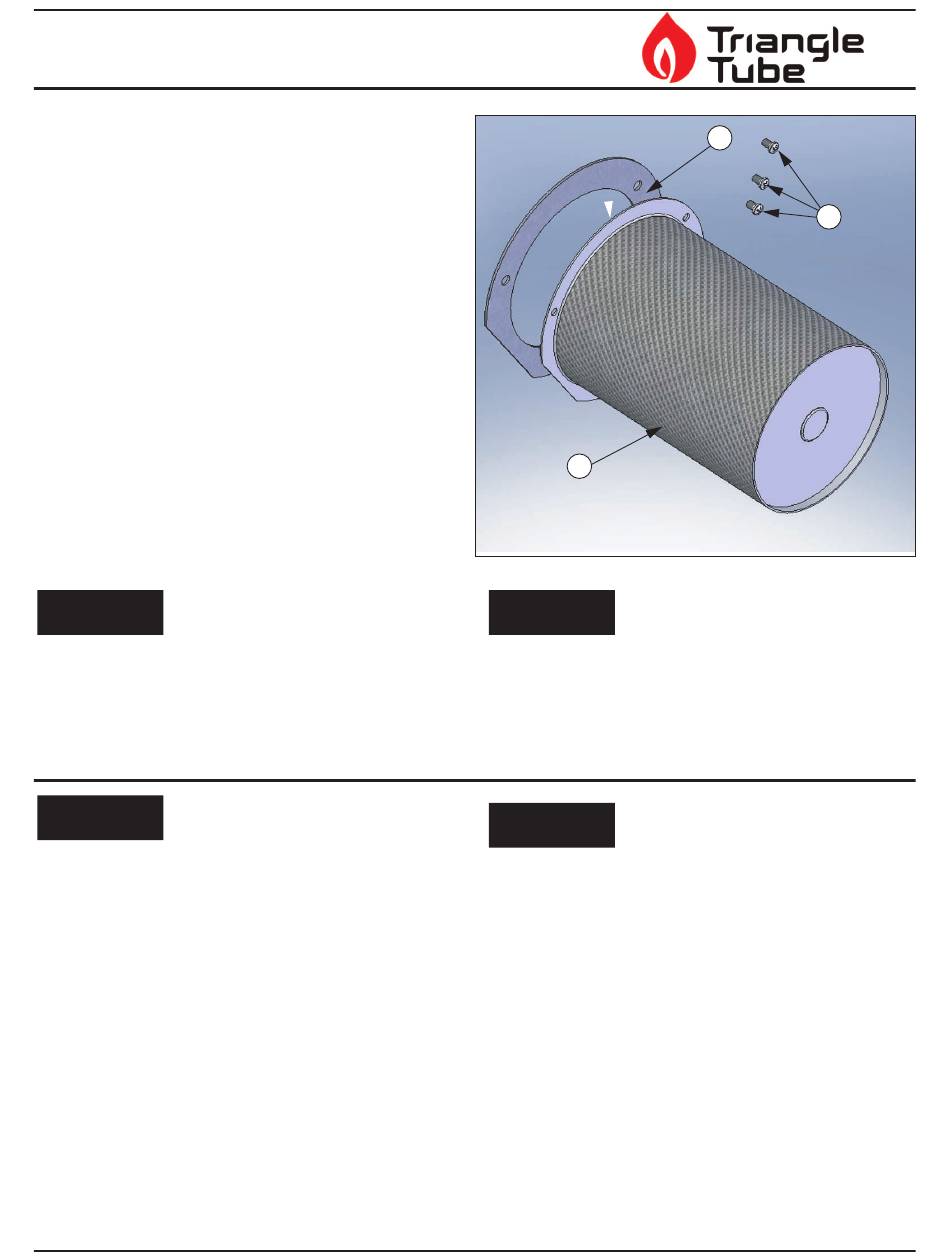

Fig. 1: Burner Head & Gasket
NOTICE
Indicates special instructions on installa-
tion, operation or maintenance, which are
important to equipment but not related to
personal injury hazards.
WARNING
Failure to follow instructions below can result
in severe personal injury or damage if ignored.
•
Instructions are for a qualified installer/ ser-
vice technician.
•
Read all instructions before proceeding.
•
Follow instructions in proper order.
1
2
3
Advertisement
Related Manuals for TriangleTube PSRKIT38
Summary of Contents for TriangleTube PSRKIT38
- Page 1 Burner Head Replacement Kit for PRESTIGE SOLO 399 Kit Part Number: PSRKIT38 Parts List (Fig.1) 1. Burner Head 2. Burner Head Gasket 3. 8 -Stainless Steel Phillips Screws. (For attach- ing the new burner head to the burner mounting plate.) Recommended tools: A.
-
Page 2: Burner Head
Burner Head Replacement Kit for PRESTIGE SOLO 399 Instructions: 7. Remove the six 10 mm nuts securing the burner mounting plate to the heat exchanger 1. Turn power to the unit “OFF” and allow unit body. Remove the burner, blower and gas to cool. -
Page 3: Replacement Kit
Burner Head Replacement Kit for PRESTIGE SOLO 399 NOTICE WARNING For the reassembly process do not use adhe- Do not check for gas leaks with an open flame. sives on ANY gasket surface. Use a bubble test. Failure to check for gas leaks can cause severe personal injury, death or substantial property damage. - Page 4 Burner Head Replacement Kit for PRESTIGE SOLO 399 20. Manually place the boiler into HIGH fire mode taneously on the control display while in the by pressing the MODE button with “+” button STANDBY (STBY) mode. simultaneously on the control panel display while in the STANDBY (STBY) mode.
- Page 5 Burner Head Replacement Kit for PRESTIGE SOLO 399 Handling of Previously Fired Combustion Chamber Insulation 2. Wear long sleeved, loose fitting clothing, gloves WARNING and eyes protection. The combustion chamber insulation contains 3. Assure adequate ventilation. ceramic fibers, which are classified as a pos- sible human carcinogen.
