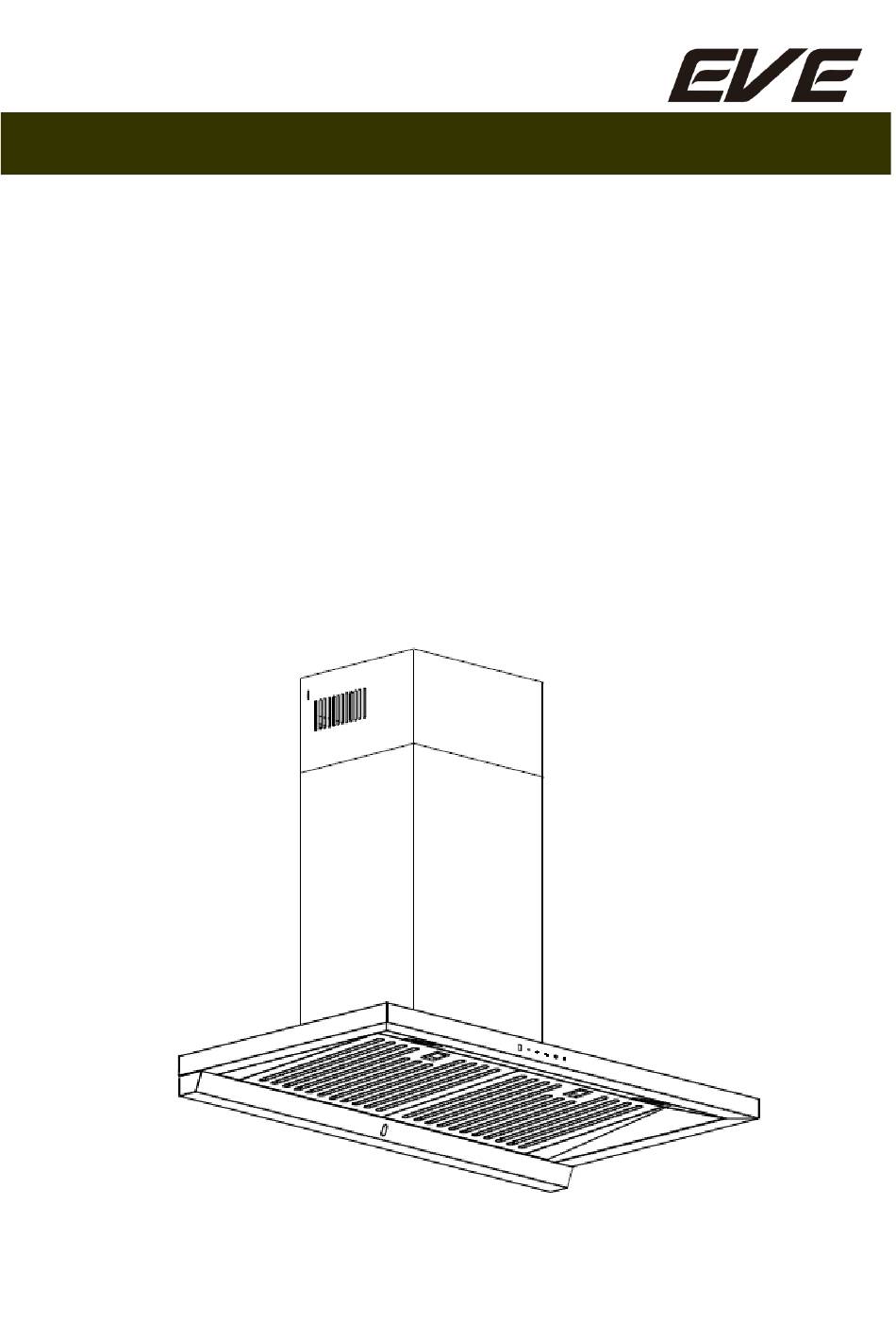

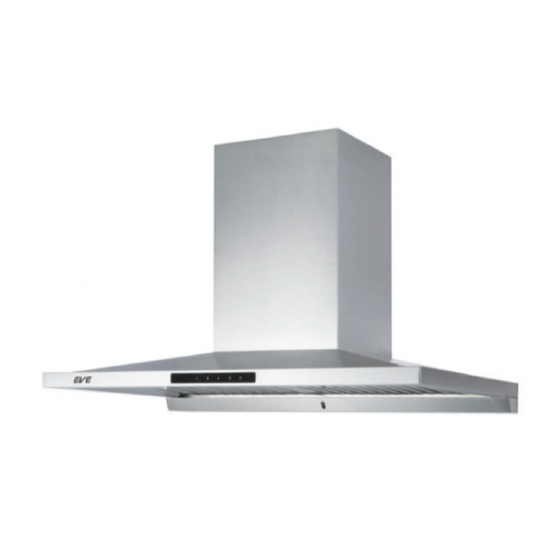

- Page 1 Instruction Manual Cooker Hood HC-HEE52TC-90...
-
Page 2: Table Of Contents
Content 1…………………………………..………………………………Safety instructions 2…………………………………..………………………………Installation 3…………………………………..………………………………Start using your cooker hood 4…………………………………..………………………………Troubleshooting 5…………………………………..………………………………Maintenance and cleaning 6…………………………………..………………………………Environment protection... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS his manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. of a range hood or other cooking fume Never to do: extractor, the operation of open flued... - Page 4 Always to do: Always to do: ● ● lways put lids on pots and pans aution: The appliance and its when cooking on a gas cooker. accessible parts can become hot during operation. Be careful to avoid ● hen in extraction mode, air in the touching the heating elements.
-
Page 5: Installation
INSTALLATION (VENT OUTSIDE) MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount the half- parts to its body. The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations. To mount the V-flap 1 you should: •... - Page 6 3. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the highest place of chimney. See pic 2. 4. Fix the outlet on the hood with 4pcs ST4*8mm screws. Then install the expansion pipe onto the outlet and fix it with a cable tie.
- Page 7 6. Adjust the height of the inside chimney to the suitable height, and fix the inside chimney to the inside chimney bracket with 2 pcs ST4*8mm screws. See pic 5. HINTS FOR EXHAUST DUCT INSTALLATION The following rules must be strictly followed to obtain optimal air extraction: •...
-
Page 8: Start Using Your Cooker Hood
WARNING: ➢ For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual. ➢ Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. - Page 9 starts to work at the low speed. the LED display will display “1”, 4.2 Press (Increase) button again when it is working on the low speed, the cooker hood works at the mid speed and the LED display will display “2”, 4.3 Press (Increase) button again when it is working on the mid speed, the cooker hood works at the high speed and the LED display will display “3”.
-
Page 10: Maintenance And Cleaning
Replace bulbs as per this Lights not working Broken or faulty bulbs instruction. The distance between the Refit the cooker hood to the Insufficient suction cooker hood and the gas top is correct distance. too far The Cooker hood The fixing screw is not tight Tighten the hanging screw and inclines enough... - Page 11 THE OIL CUP • Your cooker hood includes a unique oil cup which collects the oil that is deposited on the grease filters. • When the oil cup is about 2/3 full the oil cup needs to be cleaned. • Take away the oil cup as the diagram below shows, slightly pull the oil cup forwards to release it from the Cooker hood.
- Page 12 BULB REPLACEMENT The bulb must be replaced by the manufacturer, its Important : service agent or similarly qualified persons. Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands.
-
Page 13: Environment Protection
ENVIRONMENTAL PROTECTION This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU.
