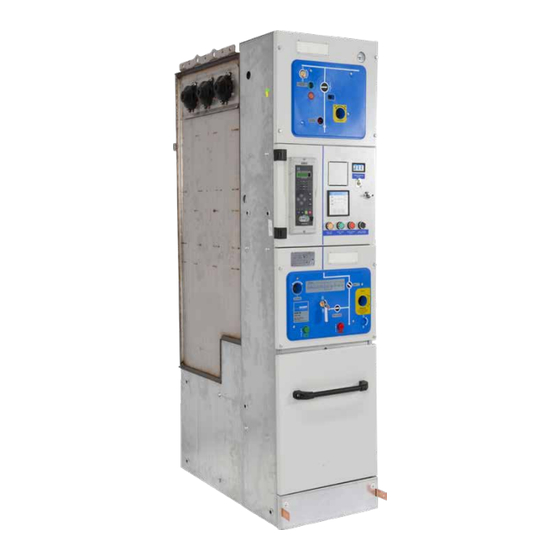

- Page 1 Ulusoy URING36 C - SF Insulated Incoming&Outgoing RMU Switchgear with Vacuum Circuit Breaker User Manual...
- Page 2 CONTENTS SWITCHGEAR INTRODUCTION & DIMENSIONS CHECKS BEFORE POWERING MIMIC PANEL AND PROTECTION ASSEMBLY BOARD POSITIONS AFTER ASSEMBLY POWERING THE SWITCHGEAR : TURNING THE EARTHING DISCONNECTOR ON POWERING THE SWITCHGEAR: TURNING THE DISCONNECTOR OFF - TURNING THE BREAKER OFF BREAKING THE POWER OF THE SWITCHGEAR: TURNING THE BREAKER ON BREAKING THE POWER OF THE SWITCHGEAR: TURNING THE DISCONNECTOR ON AND TURNING THE EARTHING DISCONNECTOR OFF REPLACING THE VOLTAGE INDICATOR AND ELECTRIC TERMINAL SCHEME...
- Page 3 GENERAL INTRODUCTION LOW VOLTAGE BREAKER LOCK LOW VOLTAGE BREAKER ON-OFF BUTTONS KİLİTL EMEK İÇİN AÇ MA BUT ONUNA BASIN ( 0 ) VE K İLİTL EYİN BREAKER SPRING STATUS INDICATOR RELAY YAY KURULU GÖST ERGESİ CLOSING SPRING ASSEMBLY HOUSING DISCONNECTOR SAFETY LOCK ON OFF BUTTONS CELL FRONT COVER EARTHING DISCONNECTOR ASSEMBLY HOUSING...
- Page 4 Checks Before Powering Check if there are foreign objects in the cells. Check the connections of the cells. Place the cell front cover. Check if the front cover is placed correctly. If the front cover is not fixed, assemble lever cannot be placed in spring assembly housing. Phase Conformity Test Serial light Voltage indicator...
- Page 5 MIMIC PANEL Disconnector Operation order safety lock label Load disconnector İŞLEM SIRASI Position indicator Switching spring assembly housing Earthing disconnector Assembly housing DİKKAT BU HÜCR E GİRİŞ HÜCR ESİ OLARAK KULLA NILIYOR İSE,BİRÖNC EKİ CBSG 36 MERKEZDEN ENERJİSİNİ KESMEDEN TOPRAK AYIRICISINI KAPATMAYINIZ.
- Page 6 MIMIC PANEL İŞLEM SIRASI DİKKAT BU HÜCRE GİRİŞ HÜCRESİ OLARAK KULLANILIYOR İSE,BİRÖNCEKİ CBSG 36 MERKEZDEN ENERJ İSİNİ KESMEDEN TOPRAK AYIRICISINI KAPATMAYINIZ. GİRİŞ ÇIKIŞ RMU 36kV / 630A / 16kA -3S Ud/Up :70/170kV IP3X IEC :62271-200 www.ulusoyelektrik.com.tr At the beginning after the assembly works are finished; Earthing disconnector is off, disconnector is on, cell front cover is open.
- Page 7 POWERING THE SWITCHGEAR Starting conditions: Earthing disconnector is off, disconnector is on, disconnector key safety lock is on, breaker on and locked, front cover is placed. İŞLEM SIRASI Turning the earthing disconnector on: Place the assembly lever into the earthing DİKKAT disconnector assembly housing as shown in BU HÜCRE GİRİŞ...
- Page 8 İŞLEM SIRASI Turning the disconnector off: DİKKAT BU HÜCRE GİRİŞ HÜCRESİ OLARAK KULLANILIYOR İ SE,BİRÖNCEKİ CBSG 36 MERKEZDEN ENERJİSİNİ KESMEDEN TOPRAK AYIRICISINI KAPATMAYINIZ. GİRİŞ ÇIKIŞ RMU Press the off button to turn the disconnector off. 36kV / 630A / 16kA -3S Ud/Up :70/170kV IP3X IEC :62271-200 www.ulusoyelektrik.com.tr...
- Page 9 BREAKING THE POWER OF THE SWITCHGEAR Starting conditions: Disconnector is off, breaker is off. İŞLEM SIRASI Breaker KİLİTLEMEK İÇİN button AÇMA BUTONUNA BASIN ( 0 ) VE KİLİTLEYİN DİKKAT BU HÜCRE GİRİŞ HÜCRESİ O LARAK KULLANILIYOR İ SE,BİRÖNCEKİ CBSG 36 MERKEZDEN ENERJİSİNİ...
- Page 10 Disconnector maneuvers İŞLEM SIRASI Turning the disconnector on: DİKKAT BU HÜCRE GİRİŞ HÜCRESİ OLARAK KULLANILIYOR İ SE,BİRÖNCEKİ CBSG 36 MERKEZDEN ENERJİSİNİ KESME DEN Press the on button to turn the disconnector on. TOPRAK AYIRICISINI KAPATMAYINIZ. GİRİŞ ÇIKIŞ RMU 36kV / 630A / 16kA -3S Ud/Up :70/170kV IP3X IEC :62271-200 www.ulusoyelektrik.com.tr...
- Page 11 ELECTRIC TERMINAL SCHEME REPLACING THE VOLTAGE INDICATOR To replace a faulty voltage indicator; Open the front cover of low voltage assembly board of the cell Remove the faulty indicator by dismantling its latches and replace it with a new one. This procedure can be performed when the cell is supplied with power.
- Page 12 TROUBLESHOOTING Voltage indicator light / lights are blown. Voltage indicator Voltage indicator connection cable socket may be fallen off. Light / lights are off. For output cell : Check if the disconnector and the breaker are off. For input cell: There is no voltage in medium voltage input cables. Check if the earthing disconnector is off.
- Page 13 Eaton’s mission is to improve the quality of life and the environment through the use of power management technologies and services. We provide sustainable solutions that help our customers effectively manage electrical, hydraulic, and mechanical power - more safely, more efficiently, and more reliably.
