Summary of Contents for Ciara Horizon D10170
-
Page 2: Table Of Contents

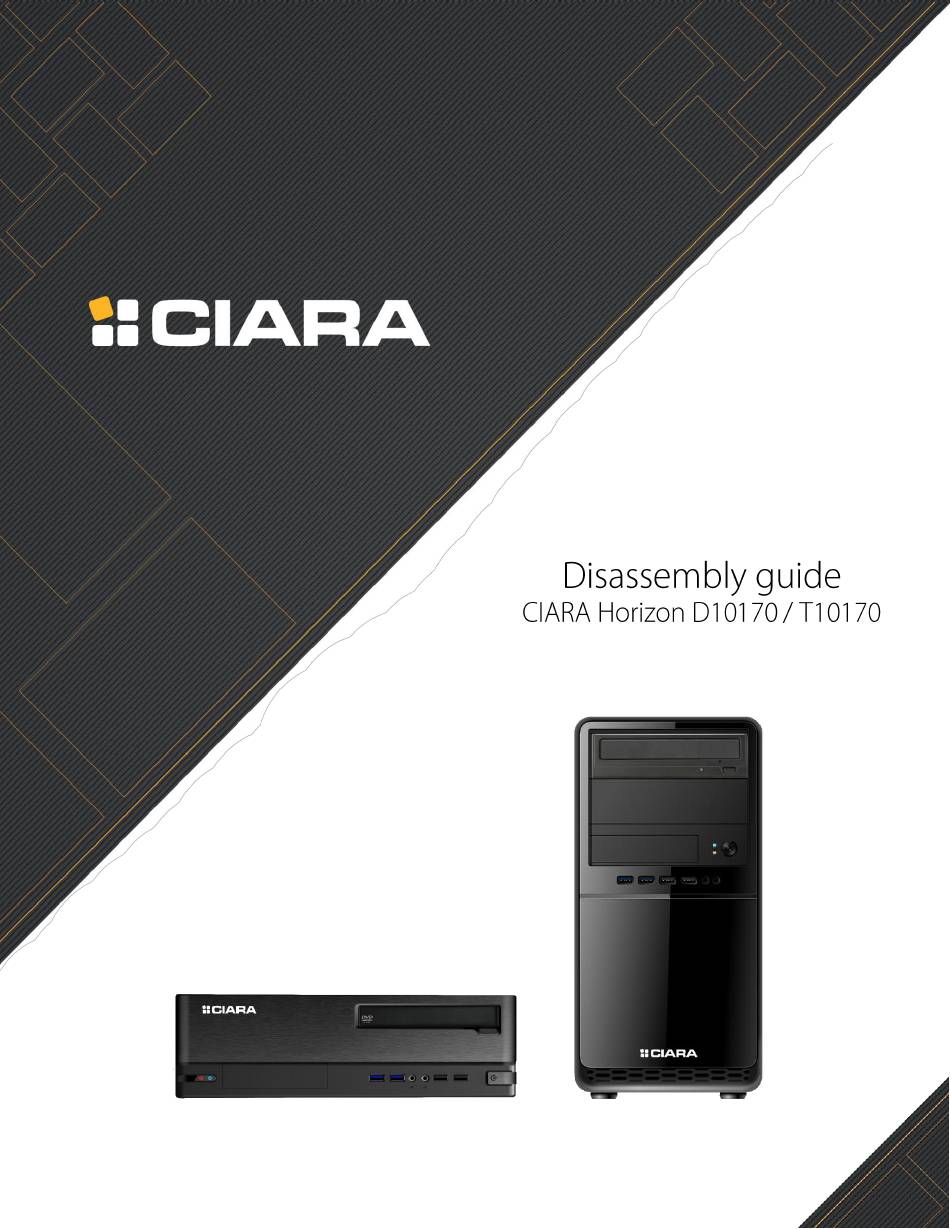

4.2 Horizon T10170 motherboard ..............................7 5. Motherboard battery ..........................8 6. Hard disk drive and SSD ........................... 9 6.1 Horizon D10170 hard disk drive and SSD ........................... 9 6.2 Horizon T10170 hard disk drive and SSD ..........................10 7. Optical drive ............................11 7.1 Horizon D10170 optical drive .............................. - Page 3 CIARA Horizon D10170 / T10170 disassembly guide Just about every part of the CIARA Horizon D10170 / T10170 is recyclable. This guide will show you how to disassemble the following various parts in order to bring them to a recycler: 1.
-
Page 4: Casing And Fpio
1. Casing and FPIO 1.1 Horizon D10170 casing and FPIO Recyclable, ROHS compliant, ABS bezel and SGCC metal sheet. To remove the FPIO, unscrew theses 2 screws, then unplug all cables. 1.2 Horizon T10170 casing and FPIO Recyclable, ROHS compliant, ABS bezel and SGCC metal sheet. -
Page 5: Casing Fan
2. Casing fan 2.1 Horizon D10170 casing fan To remove the casing fan, remove the bezel, then unscrew these 4 screws. Horizon T10170 casing fan To remove the casing fan, unscrew these 4 screws. -
Page 6: Power Supply
3. Power supply 3.1 Horizon D10170 power supply To remove the power supply, unscrew theses 3 screws, then unplug all cables. 3.2 Horizon T10170 power supply To remove the power supply, unscrew theses 4 screws, then unplug all cables. -
Page 7: Motherboard
4. Motherboard 4.1 Horizon D10170 motherboard To remove the motherboard, unscrew theses 8 screws. 4.2 Horizon T10170 motherboard To remove the motherboard, unscrew theses 8 screws. -
Page 8: Motherboard Battery
5. Motherboard battery The motherboard battery requires selective treatment per EU WEEE Directive Annex VII. -
Page 9: Hard Disk Drive And Ssd
6. Hard disk drive and SSD 6.1 Horizon D10170 hard disk drive and SSD To remove the 3.5” HDD, press the latch and pull out the drive. To remove the 2.5” HDD or SSD, press the latch and pull out the drive. -
Page 10: Horizon T10170 Hard Disk Drive And Ssd
6.2 Horizon T10170 hard disk drive and SSD To remove the 3.5” HDD, lift the tab and pull out the drive. To remove the 2.5” HDD or SSD, unscrew the retaining screw and remove the drive. To remove the M.2 SSD, unscrew the retaining screw, lift the drive and pull it out of the slot. -
Page 11: Optical Drive
7. Optical drive 7.1 Horizon D10170 optical drive To remove the optical drive, push the locking latch and pull the drive out. 7.2 Horizon T10170 optical drive To remove the optical drive, lift the locking tab and pull the drive out. -
Page 12: Memory
8. Memory 8.1 Horizon D10170 memory To remove a memory module, flip the latch and remove the module. 8.2 Horizon T10170 memory To remove a memory module, flip the latch and remove the module. -
Page 13: Processor
9. Processor 9.1 Horizon D10170 processor To remove the processor, turn the 4 latches counterclockwise, remove the heatsink, open the lever, lift the cover and remove the processor. 9.2 Horizon T10170 processor To remove the processor, turn the 4 latches... -
Page 14: Discrete Video Controller
10. Discrete video controller 10.1 Horizon D10170 discrete video controller To remove the video controller, tilt the cover of the PCI doors. it de dévisser ces 2 vis, puis de débrancher tous les câbles. You will then be able to pull out the controller.
