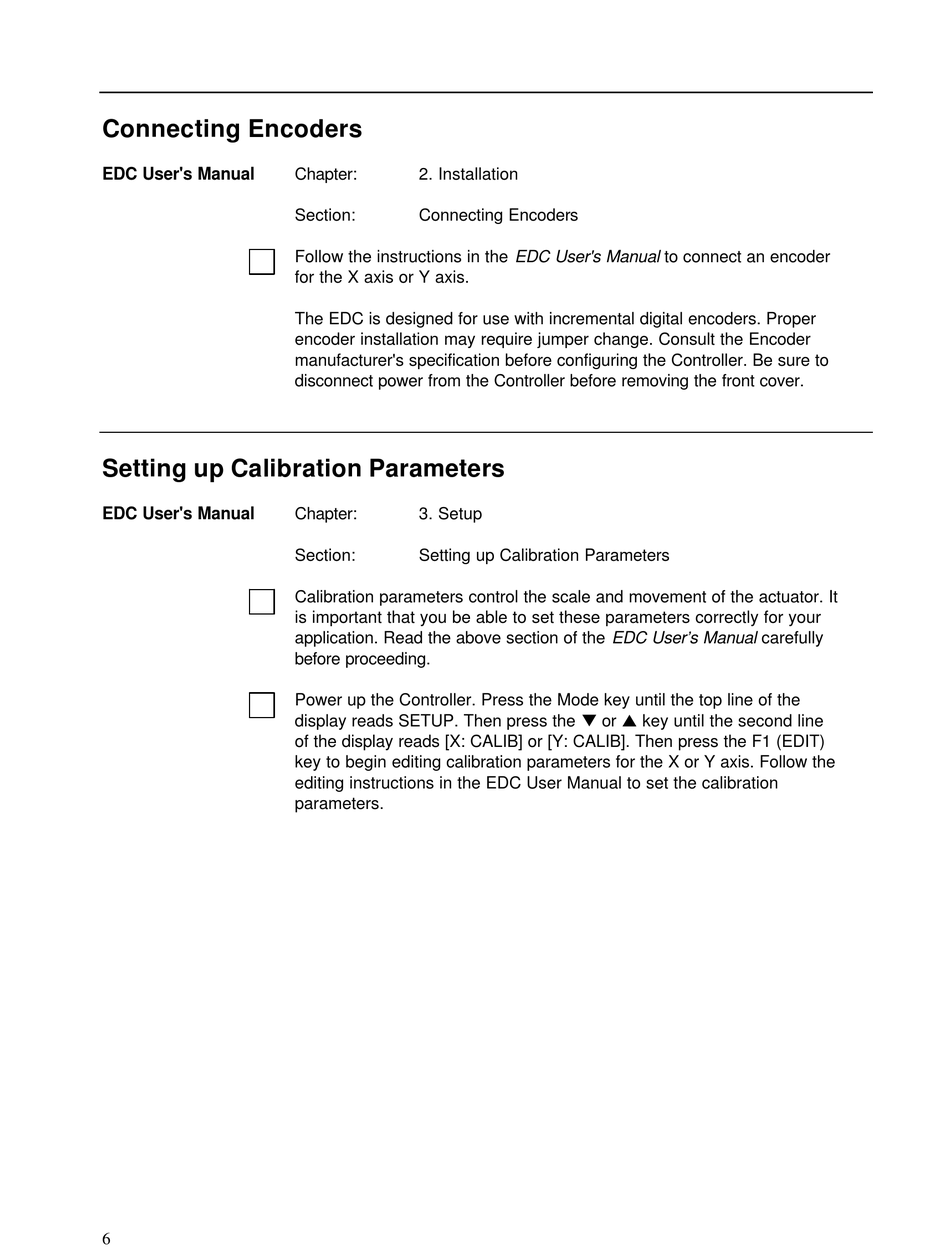

Connecting Encoders

EDC User's Manual
Setting up Calibration Parameters
EDC User's Manual
6
Chapter: 2. Installation
Section: Connecting Encoders
Follow the instructions in the EDC User's Manual to connect an encoder
for the X axis or Y axis.
The EDC is designed for use with incremental digital encoders. Proper
encoder installation may require jumper change. Consult the Encoder
manufacturer's specification before configuring the Controller. Be sure to
disconnect power from the Controller before removing the front cover.
Chapter: 3. Setup
Section: Setting up Calibration Parameters
Calibration parameters control the scale and movement of the actuator. It
is important that you be able to set these parameters correctly for your
application. Read the above section of the EDC User's Manual carefully
before proceeding.
Power up the Controller. Press the Mode key until the top line of the
display reads SETUP. Then press the t or s key until the second line
of the display reads [X: CALIB] or [Y: CALIB]. Then press the F1 (EDIT)
key to begin editing calibration parameters for the X or Y axis. Follow the
editing instructions in the EDC User Manual to set the calibration
parameters.
