Sunex Tools 1003AJ Manual

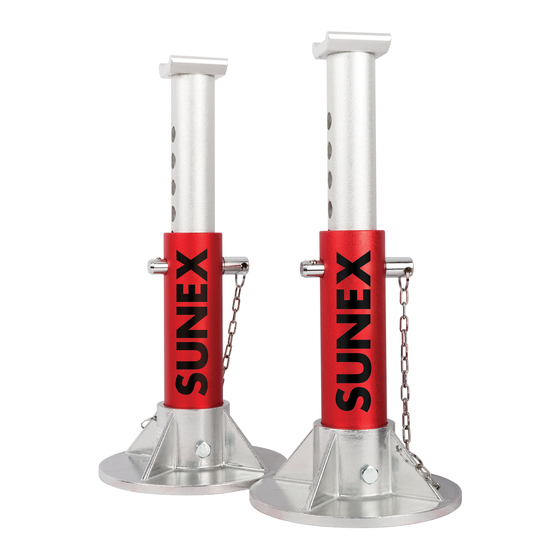

Jack stand (pair) 3 ton
Hide thumbs Also See for 1003AJ:
1
2
3
4

Advertisement

Table of Contents

MANUAL
CONTENTS:
Page 1 Specifications
2 Warning Information
3 Assembly Instructions and Operating Instructions
4 Exploded View Drawing and and Preventative Maintenance
5 Warranty Coverage
1003AJ

SPECIFICATIONS

Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Tons (2,721.5 kg)
Min Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.6" (26.9 cm)
Max Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15.4" (39.1 cm)
Saddle Size . . . . . . . . . . . . . . . . . . 2.2" x 2.0" (5.6 cm x 5.1 cm)
Base Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.1" (18.0 cm)
Weight (Pair) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 lbs (4.5 kg)
1
MODEL 1003AJ
CAPACITY: 3 TON
JACK STAND (PAIR)
