Sunex Tools 7752C Operating Manual

M 7752C O M & P B
ODEL PERATING ANUAL ARTS REAKDOWN
7752C
1-1/2 Ton Capacity
Heavy Duty
Transmission Jack

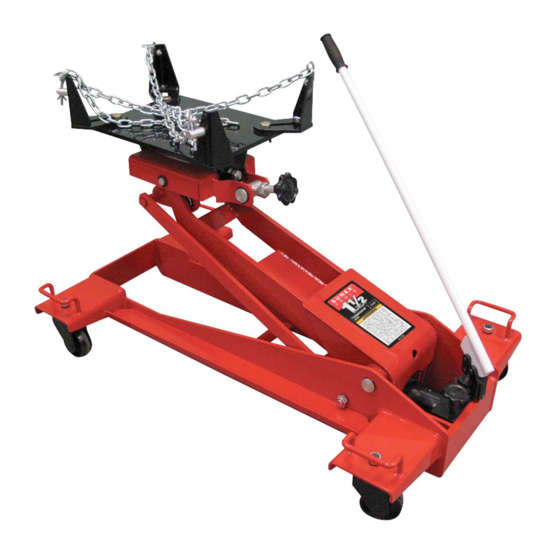

Model 7752C transmission
jack is a mobile lifting
device having a lift
platform assembly suited to
retaining an automotive
transmission, and other
driveline components such
as transfer cases and trans-
axles, and is designed to
support and stabilize the
component during its
installation or removal from
a vehicle.
Low Height . . . . . . . . . . . . . . . . . . . . . . 9"
Raised Height . . . . . . . . . . . . . . . . . . . 37"
Hydraulic Lift . . . . . . . . . . . . . . . . . . . . 28"
Saddle Forward Tilt . . . . . . . . . . . . . . . . 30°
Saddle Backward Tilt . . . . . . . . . . . . . . . 15°
Saddle Side Tilt . . . . . . . . . . . . . . . . . . ±12°
Base Size . . . 44-1/2" x 25-1/2" x 11-3/8"
Shipping Weight . . . . . . . . . . . . . . .300 Lbs.
P.O. Box 4215 • Greenville, SC 29608
1
Rev. 12/22/99
