Sunex Tools 6603 Operating Manual

Description
Model 6603 service jack is a self-contained device designed for lifting, but not sustaining, a partial vehicular
load. It consists of a frame with wheels and swivel casters supporting a mechanism that actuates a pivoting
lift arm equipped with a saddle. It is designed for use by professional auto mechanics.
Before Use
Air may become trapped in the hydraulic system during transit. To purge air:
1. Open release valve by turning handle counterclockwise.
2. Pump handle rapidly 4 full strokes. This will expel air that may have entered oil passages during transit.
3. Close release valve by rotating handle clockwise and pump handle.
4. If lift arm raises to full height, jack is ready for use. If not, repeat this procedure or follow the
troubleshooting instructions provided.
Inspection
Visual inspection should be made before each use of the jack, checking for leaking hydraulic fl uid and dam-
aged, loose or missing parts. Each jack must be inspected by a manufacturer's repair facility immediately,
if subjected
to an abnormal load or shock. Any jack which appears
to be damaged in any way, is found to be badly worn,
or operates abnormally MUST BE REMOVED FROM
SERVICE until necessary repairs are made by a manu-
facturer's authorized repair facility. It is recommended
that an annual inspection of the jack be made by a
manufacturer's authorized repair facility and that any
defective parts, decals or warning labels be replaced
with manufacturer's specifi ed parts.
A list of authorized repair facilities is available from
the manufacturer.

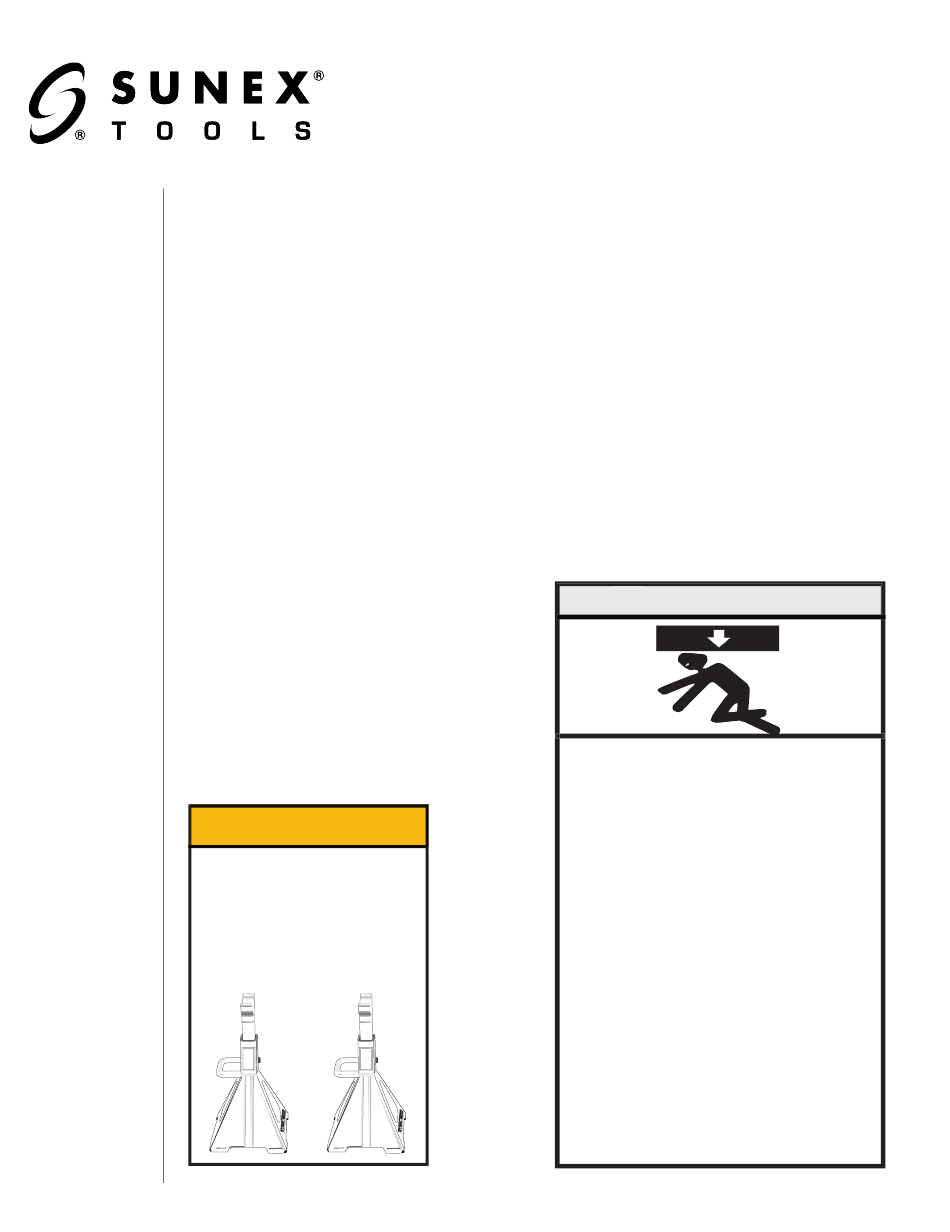

AND TO PREVENT INJURY:
Always Support Vehicle with
6603 6603
▲
WARNING
!
FOR YOUR SAFETY
Use Service Jack for
Lifting Purposes ONLY.
Support Stands
Model 1003 Model 1003
3 TON 3 TON
CAPACITY CAPACITY
RATCHETING RATCHETING
JACK STAND JACK STAND
3 TON CAPACITY
WARNING
▲
!
THIS IS A LIFTING DEVICE ONLY. DO NOT MOVE OR
DOLLY THE VEHICLE WHILE ON THE JACK. IMMEDIATELY
AFTER LIFTING SUPPORT THE VEHICLE WITH APPROPRIATE
MEANS.
DO NOT OVERLOAD. OVERLOADING CAN CAUSE DAMAGE
TO OR FAILURE OF THE JACK.
LIFT ONLY ON AREAS OF THE VEHICLE AS SPECIFIED BY THE
VEHICLE MANUFACTURER.
CENTER LOAD ON SADDLE PRIOR TO LIFTING. OFF-CENTER
LOADS MAY CAUSE DAMAGE TO JACK, LOSS OF LOAD,
PROPERTY DAMAGE, PERSONAL OR FATAL INJURY.
THIS JACK IS DESIGNED FOR USE ONLY ON HARD LEVEL SUR-
FACES CAPABLE OF SUSTAINING THE LOAD. USE ON OTHER
THAN HARD LEVEL SURFACES CAN RESULT IN JACK INSTABIL-
ITY AND POSSIBLE LOSS OF LOAD.
NO ALTERATIONS TO THE JACK SHALL BE MADE.
READ, STUDY AND UNDERSTAND THE OPERATING MANUAL
PACKED WITH THIS JACK BEFORE OPERATING.
FAILURE TO HEED THESE WARNINGS MAY RESULT IN LOSS
OF LOAD, DAMAGE TO JACK, AND/OR FAILURE RESULTING
IN PROPERTY DAMAGE, PERSONAL OR FATAL INJURY.
1 1
6603
SERVICE JACK SERVICE JACK SERVICE JACK
Rev. 10/19/05
