Sunex Tools 7790 Owner's Manual

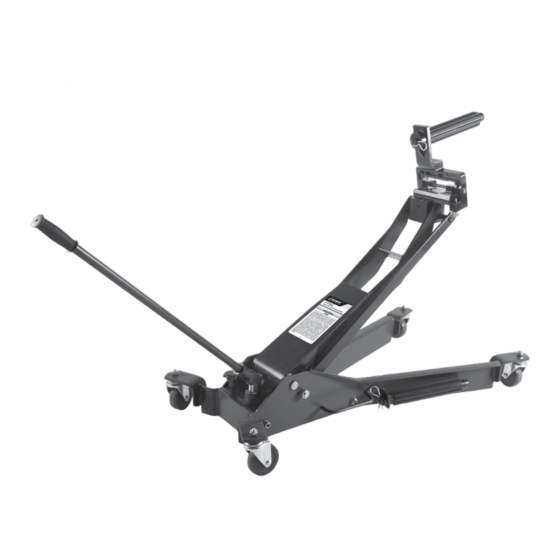

Clutch jack
Hide thumbs Also See for 7790:
1
2
3
4
5

Advertisement

Table of Contents

OWNER'S MANUAL
CONTENTS:
Page 1.

Specifications

2.
Warning Information
3.
Setup, Operating Instructions and Preventive Maintenance
4.
Preventive Maintenance, Troubleshooting and Warranty Information
5.
Exploded View Drawing and Replacement Parts
7790
SPECIFICATIONS
Capacity ........................................................ 300 lb
Low Height ...................................................... 11.3"
Max. Height .................................................... 38.6"
Overall Chassis Width ....................................... 24"
Overall Chassis Length ..................................... 41"
Weight ........................................................... 143 lb
7790
CAPACITY: 300 LB.
CLUTCH JACK
© Copyright 2016, Sunex Tools
10/25/16
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7790 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunex Tools 7790

Summary of Contents for Sunex Tools 7790

  • Page 1 Exploded View Drawing and Replacement Parts SPECIFICATIONS Capacity ............300 lb Low Height ............11.3" Max. Height ............ 38.6" Overall Chassis Width ........24" Overall Chassis Length ........41" Weight ............143 lb ® © Copyright 2016, Sunex Tools 7790 10/25/16...
  • Page 2 Failure to read this manual completely and thoroughly, failure to understand its OPERATING INSTRUCTIONS, SAFETY WARNINGS, MAINTENANCE INSTRUCTIONS and comply with them, and failure to comply with the METHODS TO AVOID HAZARDOUS SITUATIONS could cause accidents resulting in serious or fatal personal injury and/or property damage. 7790 10/25/16...
  • Page 3 7790 CAPACITY: 300 LB. CLUTCH JACK SETUP PLEASE REFER TO THE EXPLODED VIEW DRAWING IN THIS MANUAL IN ORDER TO IDENTIFY PARTS. 1. This clutch jack is designed to remove, install and transport (in the lowered position) 14" and 15-1/2" double disc clutches and/or flywheel assemblies.
  • Page 4 7790 CAPACITY: 300 LB. CLUTCH JACK OWNER'S MANUAL PREVENTATIVE MAINTENANCE (cont.) 5. Inspect the jack before each use. Do not use the jack if any component is cracked, broken, bent, shows sign of damage or leaks hydraulic fluid. Do not use the jack if it has loose or missing hardware or components, or is modified in any way. Take corrective action before using the jack again.
  • Page 5 7790 CAPACITY: 300 LB. CLUTCH JACK OWNER'S MANUAL PARTS LIST & DRAWING REF. # PART # DESCRIPTION QTY. Shaft Receiver RS779007 2" Spline Shaft RS779001 Saddle Assembly (incl 1,2,3,4,5,6,7,8 & 9) Spring Steel Ball (8) Screw (M6x18) Saddle Base Guide Arm Bar...
