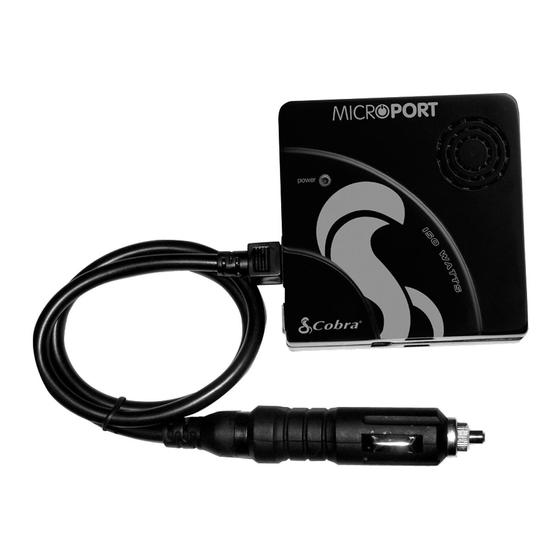

Cobra CPI 150 Operating Instructions Manual
150 watt
Hide thumbs
Also See for CPI 150:
- Operating instructions manual (11 pages) ,
- Operating instructions manual (9 pages)
Related Manuals for Cobra CPI 150
Summary of Contents for Cobra CPI 150
-
Page 1: Table Of Contents
Introduction How Your Cobra Rechargeable Appliances Quick Checkout Operation Controls and Indicators Operating Limits Input Voltage/Automatic Shutdown Troubleshooting Guide Maintenance and Service Power Consumption Specifications Limited 1-Year Warranty Table of Contents ® Power Inverter Works... -
Page 2: Rechargeable Appliances
RECHARGEABLE APPLIANCES CAUTION Certain rechargers for small nickel cadmium batteries can be damaged if connected to the CPI 150 BK/WH. Two types of equipment are particularly prone to this problem: 1. Small battery operated appliances that can be plugged directly into... -
Page 3: Quick Checkout
In order to check the performance of your CPI 150 before using it, please have the following on hand: 1. A 12 volt DC power source (such as a vehicle battery) 2. A test load such as a lamp or other small appliance... -
Page 4: Quick Checkout
6. Plug the power cord from the test load into the inverter’s AC receptacle. Testing The inverter will come on automatically. It should supply power to the load. If the inverter does not appear to work properly, refer to the Troubleshooting Guide on page 7. -
Page 5: Operation
The location where you should use your CPI 150 must be: • dry–Do not use the unit where water can drip or splash on it. • cool–Ambient air temperature should be between 30˚ and 105˚ F (0˚ and 40˚ C). The cooler the better. -
Page 6: Controls And Indicators
CONTROLS & INDICATORS Powering Up To apply power to the CPI 150, simply plug in to 12 Volt DC source (cigarette lighter or airplane power source). Cigarette Lighter Plug Airplane Plug Power/Fault Indicator The "fault" indicator of your CPI 150 will light whenever... -
Page 7: Operating Limits
Power Output AC Output: Your CPI 150 will deliver 150 watts continuously. It can deliver 180 watts for about 30 minutes, after which it must cool for about 15 minutes before it can resume operation at 150 watts. (NOTE: the wattage rating applies to resistive loads.) -
Page 8: Troubleshooting Guide
Short circuit or Check AC wiring for short wiring error circuit or improper polarity. High input voltage Thermal Allow inverter to cool down shutdown are not obstructed. Lower Solution Reduce the load. Recharge battery. Check connections and cable. Make sure the inverter is connected to a 12 volt battery. -
Page 9: Maintenance And Service
Maintaining Your Inverter Your CPI 150 requires very little maintenance to keep it operating properly. The exterior of the unit should be cleaned periodically with a damp cloth to prevent accumulation of dust and dirt. Keep vents and fans free from dust or debris. -
Page 10: Maintenance And Service
MAINTENANCE & SERVICE Service (continued) If you suspect that your unit requires service, please call 773-889-3087 BEFORE shipping it to Cobra will ensure that you receive service as quickly as possible. If you are asked to send your unit to the Cobra ®... -
Page 11: Power Consumption
For each piece of equipment you will be powering with your CPI 150, you must determine the battery’s capacity (how long the battery can deliver a specific amount of current). For example, automotive batteries usually provide 25 amperes of current. A... -
Page 12: Specifications
SPECIFICATIONS Continuous output power Surge rating (0.1second) Peak efficiency (12V—1/2 load) Efficiency (full load, 12V) No load current draw Output waveform (resistive load) Output frequency Output voltage USB output 10. Input voltage 12. Shutdown voltage (unload) 13. Operating temperature range 14. - Page 13 Congratulations Thank you for purchasing the CPI 150 BK/WH Power Inverter from Cobra ® . When used properly, your unit will give you many years of reliable service. The operating features of your CPI 150 BK/WH include: • USB 5V Output •...
-
Page 14: Customer Assistance
110 volt AC (alternating current) power like the electrical current you have in your home. Simply by plugging your CPI 150 into your vehicle’s cigarette lighter socket, you can use many of your household appliances and electronic products in... -
Page 15: Limited 1-Year Warranty
You must pay initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra’s expense, if the product is repaired or replaced under warranty. This warranty gives you specific... - Page 16 Mobile GPS Navigations Systems CobraMarine™ VHF Marine Radios CobraMarine™ Chartplotters For more information about our products, or to order online Nothing Comes Close to a Cobra® Printed in China Part No. 480-308-P ® line of quality products includes: CB Radios ®...
-
Page 17: Nothing Comes Close To A Cobra
Operating Instructions for Your Cobra ® 150 Watt POWER INVERTER 1 5 0 B K / W H M O D E L C P I – Nothing Comes Close to a Cobra ®... -
Page 18: Output Waveform
For Best Results Your CPI 150 BK/WH must be used properly in order to provide the best possible results. Please read all instructions carefully before using the unit. Pay special attention to CAUTION and WARNING statements in this manual. CAUTION statements...
