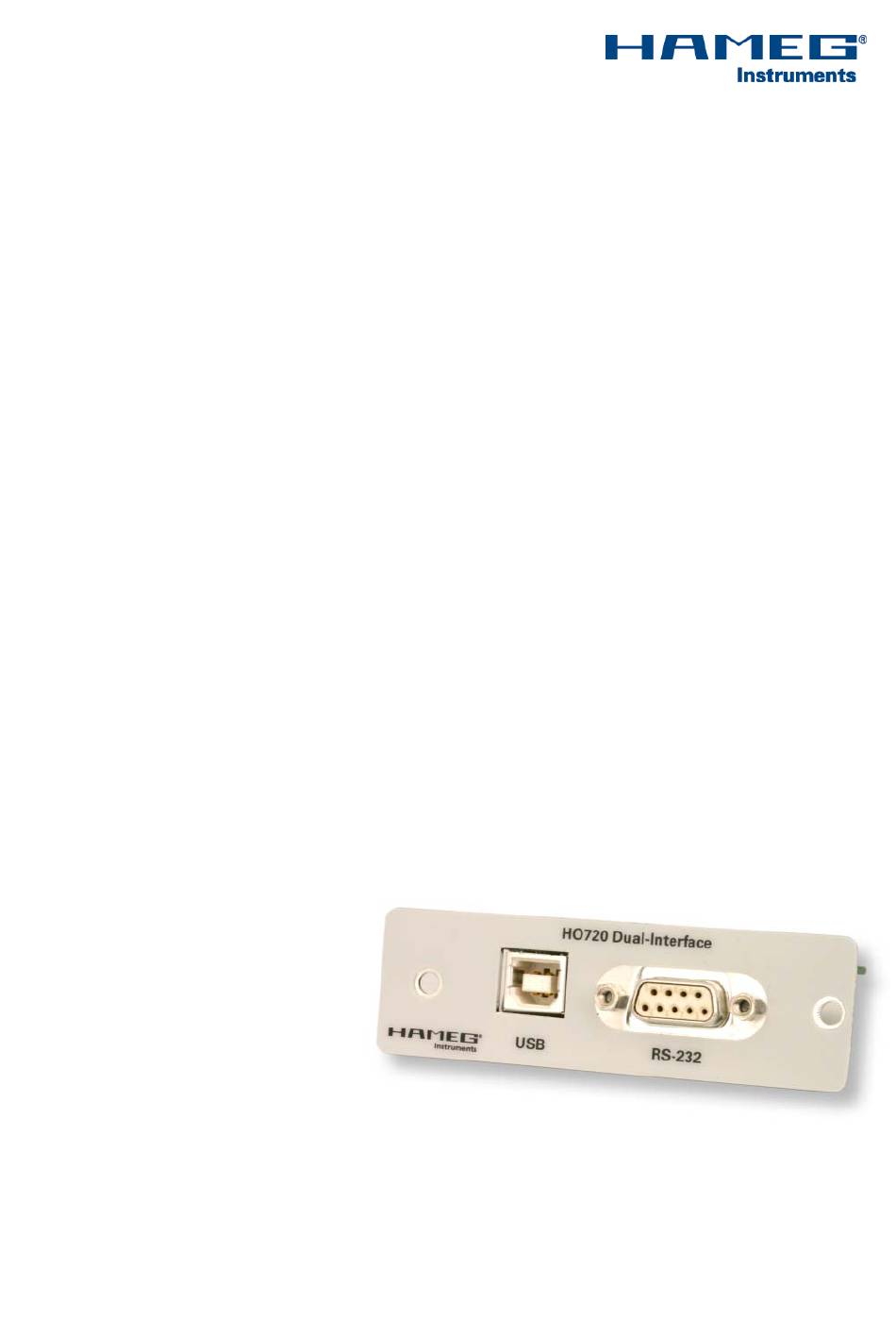

- Page 1 D U A L - I N T E R F A C E H O 7 2 0 Installation guidelines English Issued: September 2006...
-
Page 2: Declaration Of Conformity
General information regarding the CE marking HAMEG instruments fulfi ll the regulations of the EMC directive. The conformity test made by HAMEG is based on the actual generic- and product standards. In cases where different limit values are applicable, HAMEG applies the severer standard. For emission the limits for KONFORMITÄTSERKLÄRUNG... -
Page 3: Table Of Contents
General information regarding the CE marking 1. Safety hints 2. Interface description 2.1 USB 2.2 RS-232 3. Firmware 4. Interface fi tting instruction 4.1 Removing the existing interface 4.2 Fitting the interface HO720 5. Interface selection 6. USB Driver Installation 7. Application Änderungen vorbehalten... -
Page 4: Safety Hints
HO720 too. 2. Interface Description Spectrum analyzer HO720 is a DUAL Interface that can be used alternatively as a USB 2.0 or as a RS-232 Interface in connection with the HAMEG With spectrum analyzers the interface will be recognized by CombiScopes HM1008 and HM1508 as well as the HAMEG each fi... -
Page 5: Interface Fi Tting Instruction

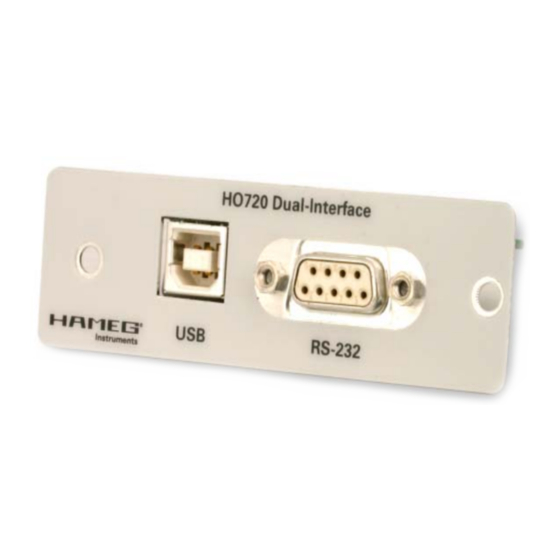

4.2 Fitting the interface HO720 4. Fitting of the HO720 Precondition! The installation of the interface HO720 is meaningful only if, as described under point 3 (Firmware), the oscilloscope has fi rmware version 03.000-yy.yyy or higher. Otherwise the in- terface is not recognized by the oscilloscope. With spectrum analyzers the interface will be recognized by each fi... -
Page 6: Interface Selection
The choice of the interface is only possible, if as described the oscilloscope works with the fi rmware version 03.000-yy.yyy under item 3 (Firmware), or more highly and the interface HO720 (described as under item 4) is inserted. 5.1.1 Interface Selection with oscilloscopes Pressing the SETTINGS pushbutton calls the “Settings” menu. -
Page 7: Usb Driver Installation
6.1 Installation under Windows XP: 6.1.3.1 If the driver software has not been found, the message „The wizard could not fi nd the software for ... ? HAMEG HO720” is displayed. Please click “Back” until item 6.1.2 is displayed. 6.1.1 Please choose “No, not this time” and click “Next”. - Page 8 6.1.4 Thereafter the “Hardware Installation” window is displa- yed, showing a warning to continue the installation procedure. As this warning is irrelevant in case of HO720 driver software, click „Continue Anyway“. 6.1.3.2 Select “Install from a list or specifi c location (Advanced)”...
-
Page 9: Application
The programming commands list will be provided in the Internet under www.hameg.com. 7.2 Spectrum analyzers The interface HO720 can be used both over RS-232 and over USB in connection with the user software AS300E. The „Settings“ preset in AS300E have to correspond to the interface used in each case. - Page 10 . h a m e g . d e Subject to change without notice 22-09-2006-gw HAMEG Instruments GmbH © HAMEG Instruments GmbH Industriestraße 6 A Rohde & Schwarz Company D-63533 Mainhausen ® registered trademark Tel +49 (0) 61 82 800-0 DQS-Certifi...
