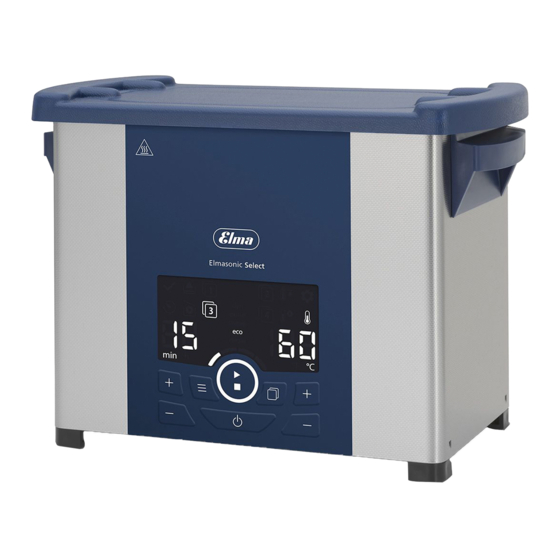

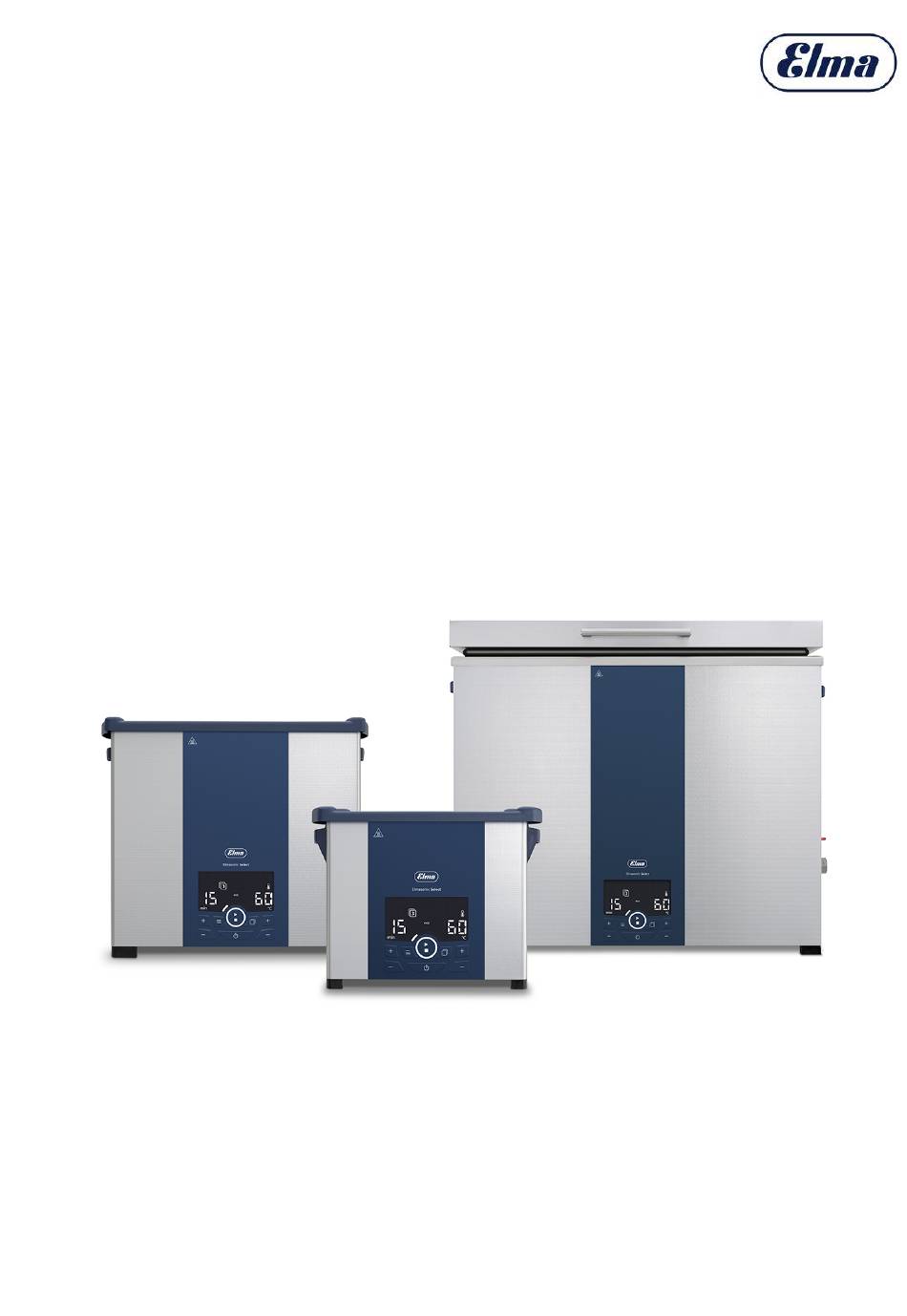

- Page 1 Translation of the original manual english Elmasonic Select Ultrasonic cleaning unit Version 1 Item No. 1112616 04/2021...
- Page 2 Copyright © 2020 Elma Schmidbauer GmbH. All rights reserved. Elma Schmidbauer GmbH Technical Support: Gottlieb-Daimler-Strasse 17 Tel.: + 49 7731 882-280 78224 Singen (Germany) Email: support@elma-ultrasonic.com www.elma-ultrasonic.com Subject to technical modifications and modifications to appearance.
-
Page 3: Table Of Contents
12.11 Switch off and save ...... 25 Cleaning agents ........ 8 12.12 Remove cleaned objects .... 26 5 Technical data .......... 10 13 Drain the unit .......... 26 Elmasonic Select 30–60.... 10 14 Change parameters in Setup .... 27 Elmasonic Select 80–120.... 10 15 Malfunctions/fault messages .... 29 Elmasonic Select 150–300.... 11 15.1 Troubleshooting........ -
Page 4: About This Manual
1 About this manual Elma Schmidbauer GmbH About this manual Please read the manual before using the product. This manual forms part of the IMPORTANT contents supplied with the unit. Keep the manual in an accessible place close to the product, and keep it with the product if it is sold on. -
Page 5: Ce Mark
Elma Schmidbauer GmbH 2 Proper use CE mark This unit fulfils CE marking requirements in line with EU (EC/EEC) directives. Details are stated in the EU declaration of conformity that can be obtained from the manufacturer. Technical changes to the unit must be approved by the manufacturer. The unit is no longer CE compliant if opened by an unauthorised person. -
Page 6: Safety
3 Safety Elma Schmidbauer GmbH Safety The structure of warnings SIGNALWORD Type and source of the danger Possible consequences of the danger if disregarded. Ø Measures to prevent the danger. Signal word Meaning Consequences if disregarded DANGER Immediate danger Death or serious injury... -
Page 7: Safety Information On Specific Types Of Hazard
Elma Schmidbauer GmbH 3 Safety Date of production Manufacturer Serial number Temperature limit Safety information on specific types of hazard Electrical power Contact with live components can lead to serious injury or death due to electrocution! • Do not connect the unit to the power supply if the connection cables or other components are visibly damaged. -
Page 8: Use Of Cleaning Agents
• Only use aqueous cleaning agents for ultrasonic cleaning. • Only use cleaning agents that are suitable for ultrasonic cleaning. Elma provides a wide range of aqueous cleaning agents developed in-house that are optimised for ultrasonic cleaning. A list of Elma cleaning agents can be found here: https://www.elma-ultrasonic.com/en/products/cleaning-chemistry/... - Page 9 Elma Schmidbauer GmbH 4 Use of cleaning agents Use of aggressive, corrosive cleaning agents: Aggressive, corrosive cleaning agents can cause severe chemical burns if they come into contact with eyes or skin. Insufficient ventilation can result in severe chemical burns to the respiratory tract.
-
Page 10: Technical Data
5 Technical data Elma Schmidbauer GmbH Technical data Elmasonic Select 30–60 Elmasonic Select Unit Mechanical data Max. external dimensions W/D/H 305/170/230 305/170/280 370/210/275 (unit with cover) Interior dimensions W/D (tank below 220/120 215/115 275/125 fill level marking) Fill level (tank base to fill level... -
Page 11: Elmasonic Select 150-300
Elma Schmidbauer GmbH 5 Technical data Performance data Total power consumption 1,000 Effective ultrasonic power ±10% Peak ultrasonic output max. Heating power Elmasonic Select 150–300 Elmasonic Select Unit Mechanical data Max. external dimensions W/D/H 575/360/230 405/360/330 575/360/330 (unit with cover) -
Page 12: Elmasonic Select 500/900
5 Technical data Elma Schmidbauer GmbH Elmasonic Select 500/900 Elmasonic Select Unit Mechanical data Max. external dimensions W/D/H (unit with 770/425/505 870/595/505 cover) Max. external dimensions W/D/H (unit with 770/510/975 870/640/1,145 sound-protection cover) Interior dimensions W/D (tank below fill level... -
Page 13: Elmasonic Select 30-900
Elma Schmidbauer GmbH 5 Technical data Elmasonic Select 30–900 Elmasonic Select Unit 30/40 60–300 500/900 Mechanical data Drain connection thread Inches – Nominal hose nozzle diameter Inches – DN10 DN20 Material (tank, enclosure) – Stainless steel Electrical data Mains voltage ±10% 220–240... -
Page 14: Product Contents
Ultrasonic unit with sound-protection cover Elmasonic Select 500/900 Cover Elmasonic Select 500/900 Cover and drip tray Elmasonic Select 30–300 Network cable (IEC connector) Hose connector for drain (not available for Elmasonic Select 30 + 40) Manual (not shown) 14 / 32 Elmasonic Select... -
Page 15: Unit Description
4 Mains connection 10 Blower on the unit base (not shown) (not available for Elmasonic Select 30–100) 5 Nameplate, not shown 11 Ball valve, open/close drain (Elmasonic Select 500/900) 6 Drain (not available for Elmasonic Select 30/40/500/900) Illustration 3: Drain of Elmasonic Select 500/900... -
Page 16: Controls
8 Controls Elma Schmidbauer GmbH Controls Illustration 4: Controls 1 Cleaning duration display value/unit/symbol 2 Current ultrasound mode display name/bar element 3 Start/stop button for ultrasonic cleaning (short press)/ultrasonic cleaning with temperature- controlled start (long press) 4 Temperature display value/unit/symbol 5 Plus/minus buttons set temperature/programme memory/parameter values (short press),... -
Page 17: Ultrasound Mode Display
Remaining Ultrasonic cleaning is running; the remaining cleaning duration is time shown below the symbol. (Not available for Elmasonic Select 500/900). Dry operation The tank is empty, or the filling level is too low. Dry-run detection is available during active heating. -
Page 18: Operating Modes
• Current operating status Set up and connect the unit CAUTION Heavy loads (applies to unit sizes Elmasonic Select 500/900)! Serious injuries to the spine or back muscles. Ø Comply with the health and safety requirements on lifting heavy loads. -
Page 19: Set Up The Unit
Elma Schmidbauer GmbH 9 Set up and connect the unit • The unit must be installed on a sturdy, horizontal, non-slip, moisture-resistant work surface with the following characteristics: – The surface must be non-flammable. – There must be sufficient clearance above the unit to allow the cover and the objects being cleaned to be removed. -
Page 20: Insert Objects To Be Cleaned
1. Add the cleaning fluid to the tank up to the fill level marking using, for example, a measuring jug. The fill level marking is the stacking collar (1) in unit sizes Elmasonic Select 30–300 and the embossed mark (2) in unit sizes Elmasonic Select 500/900. CAUTION! An overfilled tank can cause the cleaning fluid to boil over at high temperatures. -
Page 21: Operating The Unit
Elma Schmidbauer GmbH 12 Operating the unit Operating the unit CAUTION Hot liquid, vapours and unit parts! Burns or scalds. Ø Do not reach into the tank. Ø When working at high cleaning temperatures (> 50 °C), only touch baskets, covers and inserts wearing suitable protective gloves or allow them to cool before touching them. -
Page 22: Set The Cleaning Duration
12 Operating the unit Elma Schmidbauer GmbH Two modes can be selected for starting ultrasound operation: Display in Normal mode Display in Programme mode • Set the duration, ultrasound mode and temperature. • Switch the heating on/off. Select or start a saved programme. -
Page 23: Set The Ultrasound Mode
Elma Schmidbauer GmbH 12 Operating the unit To switch the heating off, press the Minus button until - - flashes on the display. The Heating symbol disappears from the display when the heating is switched off. 12.5 Set the ultrasound mode Degas, eco, sweep, pulse or dyn (dynamic) Press the Mode button to set the ultrasound mode. -
Page 24: Start Ultrasonic Cleaning
12 Operating the unit Elma Schmidbauer GmbH 12.8 Start ultrasonic cleaning The display shows the current settings. For information on changing the settings, see Set cleaning duration, ultrasound mode and target temperature. The described settings have been configured and should be started. -
Page 25: 12.10 Start A Saved Ultrasonic Cleaning Programme
Elma Schmidbauer GmbH 12 Operating the unit Hold down the Select button (1) for > 2 seconds until the display shows all four programme numbers (3) and programme number 1 flashes. Now, press one of the Plus/minus buttons repeatedly until the programme number in which you wish to save your settings flashes. -
Page 26: 12.12 Remove Cleaned Objects
Danger of burns and scalds caused by spilled fluid! Ø Do not move or carry the unit when full. Ø Exception: unit sizes Elmasonic Select 30 to 60. Allow the fluid to cool beforehand, and disconnect the mains plug. Empty units with drains: ü... -
Page 27: Change Parameters In Setup
Elma Schmidbauer GmbH 14 Change parameters in Setup Empty units without drains (Elmasonic Select 30/40): ü Ultrasound operation has finished. ü The basket or insert has been removed. ü If using temperatures > 50 °C, allow the cleaning fluid to cool. 1. Disconnect the network cable. - Page 28 14 Change parameters in Setup Elma Schmidbauer GmbH Parameter reference: The following unit functions can be adjusted. The preset factory values are shown in bold: Parameter Unit function Value Effect Increments of 5 min./increments of Adjustment range for 1 min. (as for cleaning durations up...
-
Page 29: Malfunctions/Fault Messages
Elma Schmidbauer GmbH 15 Malfunctions/fault messages Malfunctions/fault messages 15.1 Troubleshooting Fault Possible cause Resolution • Switch on the unit. • Check that the power cable is correctly Unit not switched on or Display does not light up. connected and undamaged; replace if no power available. -
Page 30: Maintenance
16 Maintenance Elma Schmidbauer GmbH Display Fault type Possible remedies Connect the unit to a socket of a different power Er 40–44 Power supply faulty. circuit. Switch off unit and allow to cool. Elmasonic Select 120–900: check that the blower is clean and Er 47... -
Page 31: Clean Enclosure
2. To descale the tank, fill it with tap water up to the fill level marking in the tank. 3. Heat the unit up to 40 °C by pressing the Plus button. 4. Add 4–10% of Elma clean 60 or Elma clean 115C. 5. Once 40 °C has been reached, switch off the unit. -
Page 32: Led Test
17 Disposal Elma Schmidbauer GmbH 2. The blower will start after > 50 °C is reached. ðIf the blower is defective, the sound made by it will be clearly audible or the display will show the error message "Er 47". 3. Press the On/off button to switch off the unit.
