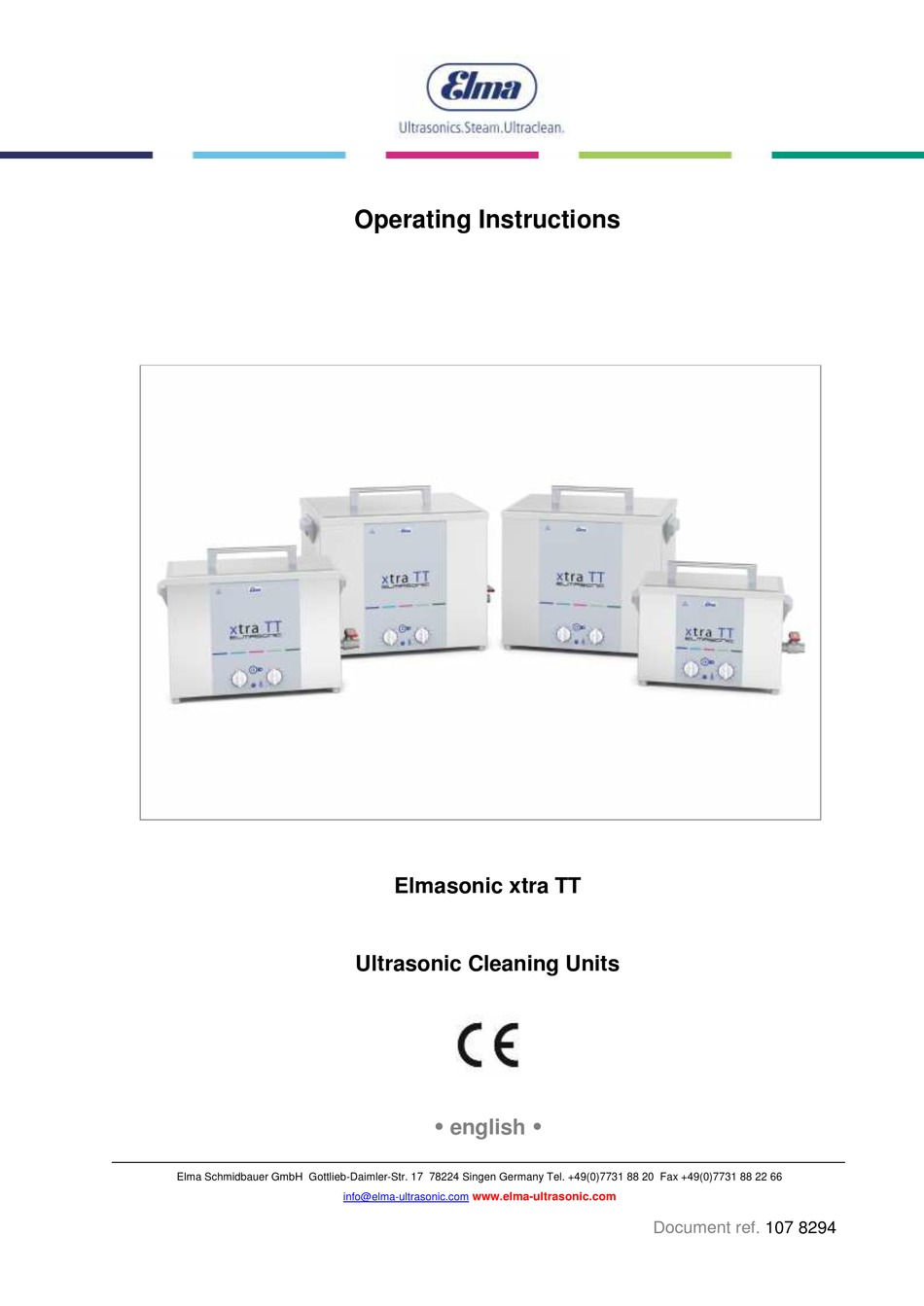

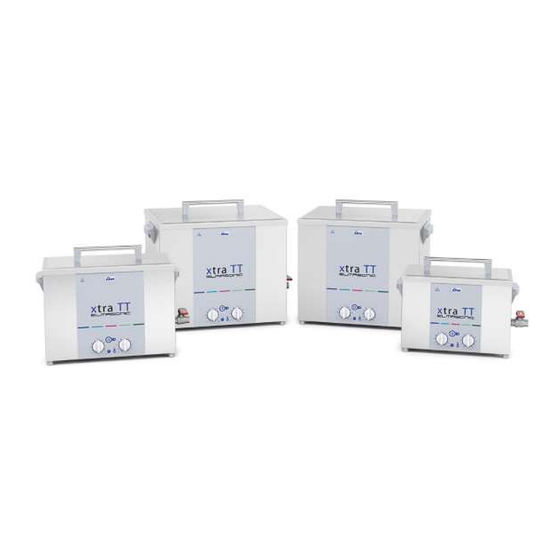

- Page 1 Operating Instructions Elmasonic xtra TT Ultrasonic Cleaning Units english Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17 78224 Singen Germany Tel. +49(0)7731 88 20 Fax +49(0)7731 88 22 66 info@elma-ultrasonic.com www.elma-ultrasonic.com Document ref. 107 8294...
-
Page 2: Table Of Contents
Information for particular groups of people ....6 Functioning ..............7 Ultrasonic cleaning factors ........7 Product description ............. 8 Elmasonic xtra TT product features ......8 CE conformity ............8 RFI Statement (European Union) ......9 Delivered equipment ..........9 Unit front view / side view ........10... - Page 3 Maintenance / Care ..........26 Service life of the transducer tank ......26 Repair ..............27 Technical Details ........... 28 Troubleshooting ............. 30 Putting out of action and waste disposal ....32 Manufacturer's contact address ......32 © Elma Schmidbauer GmbH BA_Elmasonic xtra TT_EN_Vers. 03.2018...
-
Page 4: Important Safety Warnings
Caution The signal word Caution warns of the risk of light injury or damage to the equipment. Attention The signal word Attention warns of the risk of damage to the equipment. BA_Elmasonic xtra TT_EN_Vers. 03.2018. © Elma Schmidbauer GmbH... -
Page 5: Instructions For The Use Of The Unit
Instructions for the use of the unit The present Elma ultrasonic cleaning unit has been designed Intended use for the treatment of items and liquids only. No cleaning of living beings or plants! User Operation of the unit by authorized and instructed staff only. -
Page 6: Intended Use
We recommend pregnant people not to spend long periods of time near an ultrasonic cleaning device. Elma Schmidbauer products with the CE mark comply with the People with active European EMC and Low Voltage Directive and adhere to the implants prescribed EMC limit values so that the electromagnetic radiation emitted by the devices is harmless to healthy people. -
Page 7: Functioning
Cleaning media For saponification and removal of the dirt particles a suitable cleaning agent is required. Elma has a large range of cleaning media on offer. Cleaning chemicals are also necessary to reduce the surface tension. -
Page 8: Product Description
automatic safety shutdown at a bath temperature of 90°C CE conformity This Elma ultrasonic cleaner meets the requirements for the CE marking based on the EC/EU Low Voltage, Electromagnetic Compatibility (EMC) and RoHS Directives. Refer to the EC/EU Declaration of Conformity that can be obtained from the manufacturer for details. -
Page 9: Rfi Statement (European Union)
For this please contact your supplier or the manufacturer of the unit. Delivered equipment Ultrasonic cleaning unit Mains cable Operating Instructions Stainless-steel cover © Elma Schmidbauer GmbH BA_Elmasonic xtra TT_EN_Vers. 03.2018... -
Page 10: Unit Front View / Side View
Product description Unit front view / side view Illustration 4.5: Front view / side view Elmasonic xtra TT 60 H Filling line indicates the recommended maximum filling level. This level should not be exceeded even with cleaning items inside. Plastic carrying handles for the safe transportation of the unit even with hot casing. -
Page 11: Unit Back View
Name plate with important information about the unit Ball valve for draining the tank Illustration 4.7: View ball valve for draining the tank Ball valve closed: Open in direction of the arrow. © Elma Schmidbauer GmbH BA_Elmasonic xtra TT_EN_Vers. 03.2018... -
Page 12: Description Of Operating Elements
Heater LED indicator for machines with heater, lights when the heater is active. Fault indicator (flashes - see chapter 11) * setting the rotary switch: turn clockwise reset of the rotary switch: turn anticlockwise BA_Elmasonic xtra TT_EN_Vers. 03.2018. © Elma Schmidbauer GmbH... -
Page 13: Description Of Led Indicators
4x, pause… ultrasound power too low pause, flashes 5x, pause… unknown program error pause, flashes 6x, pause… mains voltage too low pause, flashes 7x, pause… mains voltage too high © Elma Schmidbauer GmbH BA_Elmasonic xtra TT_EN_Vers. 03.2018... -
Page 14: Operating And Display Functions
Press Start/Stop button briefly Switch on heater Temperature rotary Heater LED indicator lights until set point switch not in "0" temperature is reached, then extinguishes position Cleaning time rotary switch ≠ "OFF" BA_Elmasonic xtra TT_EN_Vers. 03.2018. © Elma Schmidbauer GmbH... - Page 15 (also indicator lights for position remains saved after approx. 3 seconds, switching off the then goes out machine) Temperature rotary switch = desired temperature limit Press Start/Stop button for > 2 seconds © Elma Schmidbauer GmbH BA_Elmasonic xtra TT_EN_Vers. 03.2018...
-
Page 16: Initial Operation
The mains plug must be connected to an easily accessible socket only, as it serves as interrupted device! BA_Elmasonic xtra TT_EN_Vers. 03.2018. © Elma Schmidbauer GmbH... -
Page 17: Putting Unit Into Operation
8.2. For queries please contact the manufacturer or your supplier. Danger of damage to the transducer system! CAUTION Fill no liquid > 60 °C and < 10 °C in the ultrasonic tank. © Elma Schmidbauer GmbH BA_Elmasonic xtra TT_EN_Vers. 03.2018... -
Page 18: Placement Of Cleaning Items
How to proceed 1. Adjust the “Cleaning time rotary switch” to 5 or 10 minutes. 2. Press the “Start/Stop button”. 3. Degas the fresh cleaning liquid for approx. 5 - 10 minutes. BA_Elmasonic xtra TT_EN_Vers. 03.2018. © Elma Schmidbauer GmbH... -
Page 19: Ultrasonic Cleaning Process
For the cleaning of temperature-sensitive items please take into consideration the heating-up of the cleaning liquid. Please observe that the temperature of the cleaning media remains below 42 °C when cleaning parts contaminated with fresh protein or blood. © Elma Schmidbauer GmbH BA_Elmasonic xtra TT_EN_Vers. 03.2018... -
Page 20: Heating Up Of The Cleaning Liquid (Units With Heating)
We recommend not to exceed a temperature of 80°C inside the tank. For the recommended cleaning temperature please observe the product information of the used elma clean cleaner. High temperatures! Risk of burning and scalding! Cleaning liquid, cleaning tank, casing, cover, basket and CAUTION cleaning items can heat up considerably. -
Page 21: Starting The Cleaning Process Manually
ATTENTION Only turn the selector switch anticlockwise back to the 0 position! Elmasonic xtra TT units are equipped with safety shutdown to prevent inadvertent continuous operation. The machine is completely shut down automatically after 8 hours of continuous operation. If you want to continue operating the machine immediately, you only need to restart it. -
Page 22: Activate Dynamic Function
The heater LED indicator will light up for around 3 seconds. The pre-set temperature limit is now programmed and will also be stored in the memory when the unit is switched off. BA_Elmasonic xtra TT_EN_Vers. 03.2018. © Elma Schmidbauer GmbH... -
Page 23: After The Cleaning
Certain residues and types of contamination may destroy or damage the stainless steel tank. Use the ball valve to drain the cleaning tank (see section 4.7). © Elma Schmidbauer GmbH BA_Elmasonic xtra TT_EN_Vers. 03.2018... -
Page 24: Cleaning Media
(e.g. beaker) with sufficient ventilation; this vessel (beaker) can then be put into the stainless steel tank which is filled with non-flammable liquid (water with a few drops of surfactant). BA_Elmasonic xtra TT_EN_Vers. 03.2018. © Elma Schmidbauer GmbH... -
Page 25: Limitations On Aqueous Cleaners
For queries please contact the manufacturer or your supplier. List of recommended cleaning media Elma has a large range of suitable cleaning products on offer developed by chemical engineers in the Elma laboratory. Please contact your supplier to find the most suitable cleaning chemical for your application https://www.elma-... -
Page 26: Maintenance
Lime deposits on the stainless-steel tank can be cleaned gently Care of transducer e.g. with elma clean 40 or elma clean 115C (operate the unit tank with concentrate + water). Check regularly the grid of the air fan at the bottom of the unit Grid of air fan (not existent in all units). -
Page 27: Repair
The manufacturer cannot be held responsible for any damage caused by unauthorised maintenance or repair works on the unit. In the case of a break-down of the unit, please contact the manufacturer or your supplier. © Elma Schmidbauer GmbH BA_Elmasonic xtra TT_EN_Vers. 03.2018... -
Page 28: Technical Details
Technical Details Technical Details Elmasonic xtra TT 120H 200H Mechanical data Max. volume of trough Working volume of trough (L) Internal dimensions of trough W x D x H 240x130x100 300x150x150 300x240x200 320x280x200 (approximate in mm) External dimensions of device W x D x H... - Page 29 * Due to the signal shape, four times the value results for the maximum peak value of ultrasound output. ** Measured sound pressure level with basket and noise protection cover at a distance of 1 meter. © Elma Schmidbauer GmbH BA_Elmasonic xtra TT_EN_Vers. 03.2018...
-
Page 30: Troubleshooting
Possibly no or unsuitable Use appropriate cleaning satisfactory cleaning agent agent Cleaning temperature may Heat cleaning liquid not be optimal Cleaning time may be too Repeat cleaning interval short BA_Elmasonic xtra TT_EN_Vers. 03.2018. © Elma Schmidbauer GmbH... - Page 31 5x, pause… LED indicators unknown program error pause, flashes 6x, pause… LED indicators mains voltage too low pause, flashes 7x, pause… LED indicators mains voltage too high © Elma Schmidbauer GmbH BA_Elmasonic xtra TT_EN_Vers. 03.2018...
-
Page 32: Putting Out Of Action And Waste Disposal
Do you have any queries or suggestions concerning the present unit, its operation or the Operating Instructions? Please contact us, we will be glad to assist: Technical Support Tel +49 (0) 7731 / 882-280 Fax +49 (0) 7731 / 882-253 support@elma-ultrasonic.com BA_Elmasonic xtra TT_EN_Vers. 03.2018. © Elma Schmidbauer GmbH...
