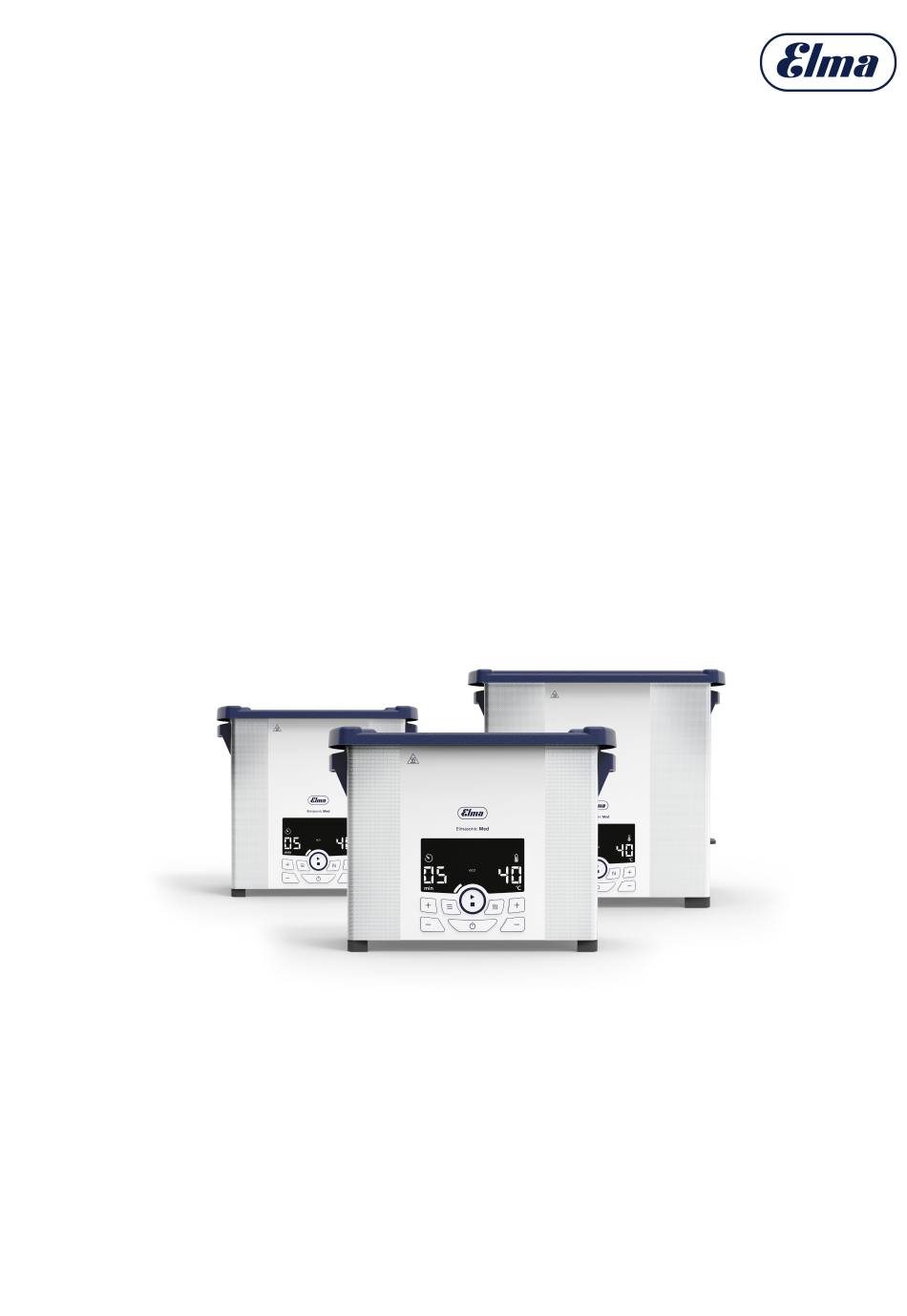

- Page 1 Translation of the original manual english Elmasonic Med Ultrasonic cleaning unit Version 1 Item No. 1102338 05/2020...
- Page 2 Copyright © 2020 Elma Schmidbauer GmbH. All rights reserved. Elma Schmidbauer GmbH Technical Support: Gottlieb-Daimler-Strasse 17 Tel.: + 49 7731 882-280 78224 Singen (Germany) Email: support@elma-ultrasonic.com www.elma-ultrasonic.com Subject to technical modifications and modifications to appearance.
-
Page 3: Table Of Contents
Safety information on specific types of hazard................ 9 4 Use of cleaning agents ........................ 10 Permissible cleaning agents...................... 10 Cleaning agents ........................ 10 5 Technical data .......................... 11 Elmasonic Med 30–100...................... 11 Elmasonic Med 120–180...................... 12 Elmasonic Med 300–900...................... 12 Elmasonic Med 30–900...................... 13 6 Product contents .......................... 14 7 Unit description.......................... - Page 4 Contents Elma Schmidbauer GmbH 12.3 Remove cleaned objects ...................... 26 13 Drain the unit ............................ 26 14 Change parameters in Setup ...................... 27 15 Malfunctions/fault messages ...................... 29 15.1 Troubleshooting........................ 29 15.2 Fault messages ........................ 29 16 Maintenance ............................. 30 17 Disposal ............................ 32 Elmasonic Med...
-
Page 5: About This Manual
Elma Schmidbauer GmbH About this manual | About this manual Please read the manual before using the product. This manual forms part of the IMPORTA contents supplied with the unit. Keep the manual in an accessible place close to the product, and keep it with the product if it is sold on. -
Page 6: Ce Mark
| About this manual Elma Schmidbauer GmbH CE mark This unit fulfils CE marking requirements in line with EU (EC/EEC) directives. Details are stated in the EU declaration of conformity that can be obtained from the manufacturer. Technical changes to the unit must be approved by the manufacturer. -
Page 7: Safety
Elma Schmidbauer GmbH About this manual | Therefore, it is vital to prevent misuse. This particularly applies to foreseeable misuse that can, for instance, arise in the following circumstances: • Operation by persons who are incapable of operating the unit safely due to their physical, sensory or mental abilities, due to inexperience or due to a lack of knowledge. -
Page 8: Meaning Of Symbols On The Unit
| About this manual Elma Schmidbauer GmbH Meaning of symbols on the unit Warning – hot surfaces, vapours and liquids Meaning of symbols on the nameplate Attention Medical device Read the manual Manufacturer Date of production Order number Serial number... -
Page 9: Safety Information On Specific Types Of Hazard
Elma Schmidbauer GmbH About this manual | Safety information on specific types of hazard Electrical power Contact with live components can lead to serious injury or death due to electrocution! • Do not connect the unit to the power supply if the connection cables or other components are visibly damaged. -
Page 10: Use Of Cleaning Agents
1. Only use aqueous cleaning agents for ultrasonic cleaning. 2. Only use cleaning agents that are suitable for ultrasonic cleaning. Elma provides a wide range of aqueous cleaning agents developed in-house that are optimised for ultrasonic cleaning. A list of Elma cleaning agents can be found here: https://www.elma-ultrasonic.com/en/products/cleaning-chemistry/... -
Page 11: Technical Data
• Do not continuously use any cleaning agents in the acidic PH range at the same time as halides, such as fluoride, chloride, bromide or iodide. • Only use cleaning agents that are suitable for ultrasound applications. Technical data Elmasonic Med 30–100 Elmasonic Med Unit Mechanical data Max. -
Page 12: Elmasonic Med 120-180
| About this manual Elma Schmidbauer GmbH Elmasonic Med 120–180 Elmasonic Med Unit Mechanical data Max. external dimensions W/D/H 365/275/330 565/335/230 395/335/330 (unit with lid) Interior dimensions W/D (tank below 300/215 485/280 300/370 fill level marking) Fill level (tank base to fill level... -
Page 13: Elmasonic Med 30-900
About this manual | Effective ultrasonic power ±10% Peak ultrasonic output max. 1,200 1,920 3,840 Heating power 1,200 1,600 2,000 Elmasonic Med 30–900 Elmasonic Med Unit 60–300 500–900 Mechanical data Drain connection thread Imperial – Nominal hose nozzle diameter Imperial –... -
Page 14: Product Contents
Illustration 1: Included items (schematic diagram) Ultrasonic unit Elmasonic Med Cover Elmasonic Med 500/900 Cover Elmasonic Med 30–300 Network cable (IEC connector) Hose connector for drain (not available for Elmasonic Med 30/500/900) Operating instructions (not shown) 14 / 32 Elmasonic Med... -
Page 15: Unit Description
4 Mains connection 10 Fan on unit base, not shown (not available for Elmasonic Med 30–100) 5 Nameplate, not shown 11 Ball valve, open/close drain (Elmasonic Med 500/900) 6 Drain (not available for Elmasonic 12 Hose nozzle (Elmasonic Med 500/900) Med 30/500/900) Illustration 3: Drain ES Med 500/900... -

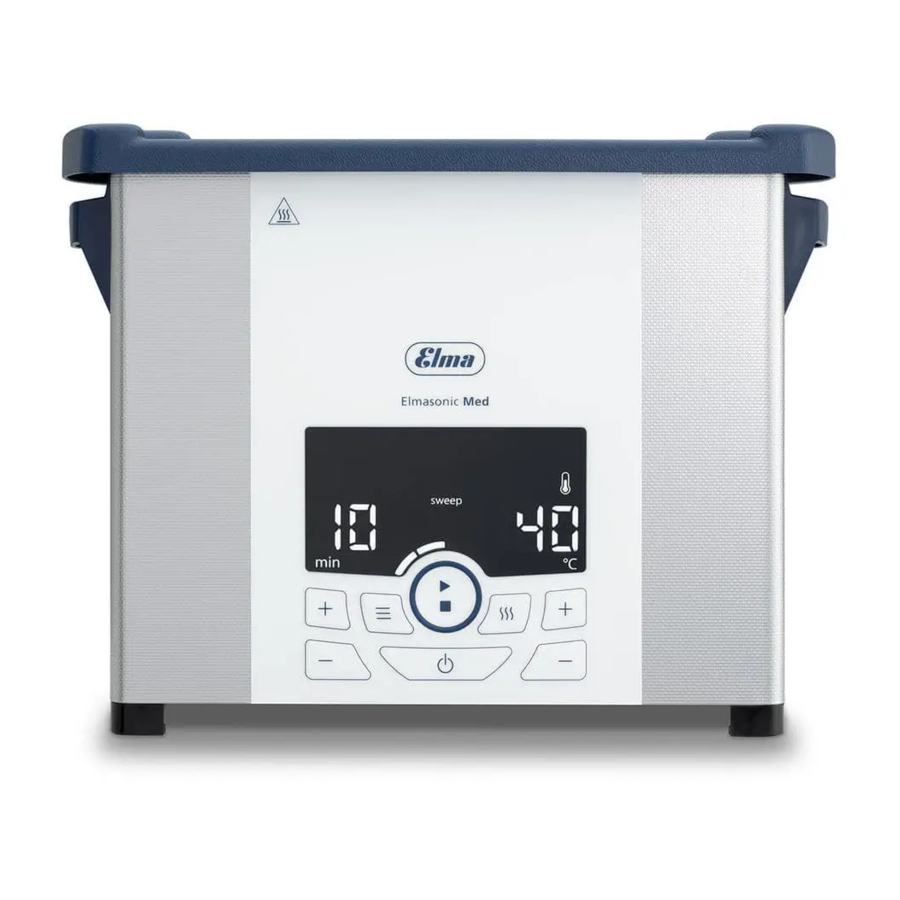

Page 16: Controls
| About this manual Elma Schmidbauer GmbH Controls Illustration 4: Controls 1 Cleaning duration display (value/unit/symbol) 2 Current ultrasound mode display (name/bar segment) 3 Start/Stop button for ultrasonic cleaning 4 Temperature display (value/unit/symbol) 5 Plus/Minus buttons set temperature/programme memory/parameter values 6 Heating button on/off... -
Page 17: Operating Status Symbols
Elma Schmidbauer GmbH About this manual | Sweep This mode performs most cleaning tasks with an evenly (2 segments) distributed sound field (standard ultrasound mode). Pulse Removes stubborn dirt using pulsed sound field distribution. (3 segments) Dynamic Combines the ultrasound modes Sweep and Pulse to improve (4 segments) -
Page 18: Operating Modes
• Current operating status Set up and connect the unit CAUTION Heavy loads (applies to unit sizes Elmasonic Med 500/900)! Serious injuries to the spine or back muscles. Ø Comply with the health and safety requirements on lifting heavy loads. -
Page 19: Set Up The Unit
Elma Schmidbauer GmbH About this manual | – The surface must be non-flammable. – There must be sufficient clearance above the unit to allow the lid and the objects being cleaned to be removed. – There must be an area available next to the unit for setting down the basket and inserts. -
Page 20: Insert Objects To Be Cleaned
| About this manual Elma Schmidbauer GmbH è The power supply is connected. Insert objects to be cleaned ü Ensure that all optional original accessories, e.g. baskets or inserts for holding the objects being cleaned, are available. IMPORTANT Do not place objects on the bottom of the tank. The tank and the objects can be damaged through ultrasonic operation. -
Page 21: Operating The Unit
Elma Schmidbauer GmbH About this manual | Illustration 5: Fill levels for Elmasonic 30–300/Elmasonic 500/900 2. IMPORTANT The objects being cleaned must be completely submerged in the fluid to achieve good cleaning results. If necessary, reduce the number of objects being cleaned. -
Page 22: Normal Mode
| About this manual Elma Schmidbauer GmbH Two modes can be selected for starting ultrasound operation: Select Normal mode to set the duration, ultrasound mode and temperature, to start operation or save programmes. Select Programme mode to select and start a stored programme. The unit is in Programme mode if a programme number is shown on the display. - Page 23 Elma Schmidbauer GmbH About this manual | Set cleaning duration (1 min. to 6 h): Press one of the Plus/Minus buttons below the time display to set the duration. Press the button repeatedly until the required duration is shown on the display. Hold the button down to increase/decrease the duration more quickly.
- Page 24 | About this manual Elma Schmidbauer GmbH Ensure that the required target temperature is higher than the current actual temperature. If not, allow the fluid to cool. Ensure that the unit is not in ultrasound operation. Hold down the Heating button until the Temperature-controlled start symbol flashes on the display.
-
Page 25: Programme Mode
Elma Schmidbauer GmbH About this manual | Press the Start/Stop button to begin ultrasound operation in the displayed mode. The Remaining time symbol is shown on the display. The remaining time, the current temperature and the set ultrasound mode are continuously shown on the display. -
Page 26: Remove Cleaned Objects
CAUTION! Never submerge the unit in water. è The unit is emptied, cleaned and, where necessary, disinfected. Illustration 6: Drain of Elmasonic 30–300/drain of Elmasonic 500/900 Empty units without drains (Elmasonic Med 30): ü Ultrasound operation has been ended. 26 / 32... -
Page 27: Change Parameters In Setup
Elma Schmidbauer GmbH About this manual | ü The basket or insert has been removed. ü If using temperatures > 50 °C, allow the cleaning fluid to cool. 1. Disconnect the network cable. 2. Put the lid on. 3. Take hold of the unit firmly by the handles holding the lid in place, and carry it carefully to a sink. - Page 28 | About this manual Elma Schmidbauer GmbH Increments of 5 min./increments of 1 min. (as for cleaning durations Adjustment range for 01 * 00/01 cleaning duration > 10 min. up to 10 min.). NOTICE! Saved programmes will be deleted. Show remaining time 00/01 Off/On < 1 min. in seconds Display in degrees Celsius/ Fahrenheit.
-
Page 29: Malfunctions/Fault Messages
Elma Schmidbauer GmbH About this manual | Malfunctions/fault messages 15.1 Troubleshooting Fault Possible cause Resolution • Switch on the device. • Check that the power cable is correctly Unit not switched on or Display does not light up. connected and undamaged; replace if no power available. -
Page 30: Maintenance
| About this manual Elma Schmidbauer GmbH Display Fault type Possible remedies Switch off unit, and allow to cool. Elmasonic Med 120–900: Check that the blower is clean and Er 47 Controller overheated. working correctly. Remove obstructions from below the unit. Er 70 Setup fault. - Page 31 2. To descale the tank, fill it with tap water up to the fill level marking in the tank. 3. Heat the unit up to 40 °C by pressing the Heating button. 4. Add 4–10% of Elma clean 60 or Elma clean 115C. 5. Once 40 °C have been reached, switch off the unit.
-
Page 32: Disposal
| About this manual Elma Schmidbauer GmbH Hold down the Mode button until the Setup menu is shown on the display. To set the LED test function, press the Plus/Minus buttons repeatedly until the parameter number 10 is shown. Then press the Plus button to change the parameter value from 00 to 01.
