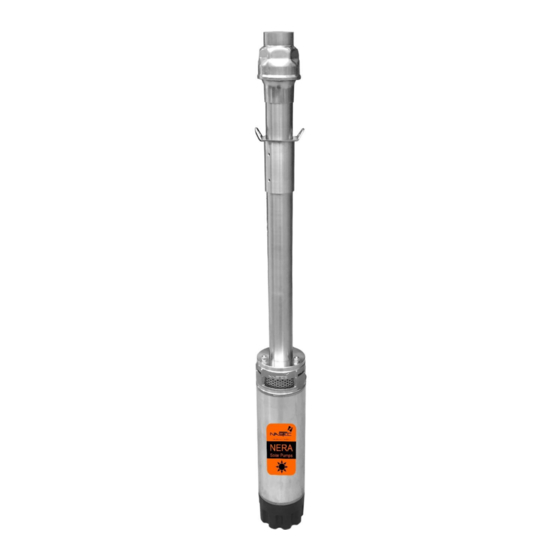

NERA solar submersible pumps
Installation and Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NERA Series and is the answer not in the manual?

Questions and answers

Related Manuals for Nastec NERA Series

Summary of Contents for Nastec NERA Series

  • Page 1 NERA solar submersible pumps Installation and Operating Manual...

  • Page 2: Table Of Contents

    Index 1. Introduction to the NERA solar submersible pumps range ..................3 2. Safety Instructions ................................ 3 3. Stocking conditions ............................... 3 4. Packing content ................................4 5. General technical features ............................4 6. Pump installation ................................4 6.1 Installing pump in the well ............................. 5 6.2 Installing the pump in a solar pumping system ......................

  • Page 3: Introduction To The Nera Solar Submersible Pumps Range

    1. Introduction to the NERA solar submersible pumps range NERA are a 4” submersible solar pumps for clean water composed by:  three phase permanent magnet motor with wet rotor and canned type resin filled stator.  Stator on-board inverter. ...

  • Page 4: Packing Content

    4. Packing content Packing includes:  NERA submersible pump with 2,5 meters flat cable length.  Cable junction kit.  Operating Manual. Check the packing immediately upon delivery and check for damage and/or missing parts; in either cases immediately notify the supplier. 5.

  • Page 5: Installing Pump In The Well

    6.1 Installing pump in the well To reduce noise transmission it is advised to use plastic pipes. The pump must always be secured in the well through a special rope attached to loop on the pump head. It is recommended not to drop the pump in the well by using the electric cable, its integrity must be preserved in all operations.

  • Page 6: Pump Cable

    6.3 Pump cable NERA pumps are equipped, in their standard configuration, with 2,5 meter flat cable length. It is necessary to respect polarity ! Not respecting the polarity causes irreparable pump failure If the distance between the pump and the power supply is longer than the supplied cable it is necessary to make a junction performed by the special kit supplied as standard.

  • Page 7: Water Level Sensing

    To make the junction is necessary to follow carefully the instructions inside the kit. At the time of joining and electrical connection is essential to maintain the correspondence between the cables. After cable joining and placed the pump in the well you must perform, before connecting to power supply, a test of insulation: join together the two power cables and, applying a voltage of 500V, an insulation resistance from the ground higher than 100 Mohm must be verified.

  • Page 8: Troubleshooting

    7. Troubleshooting If the pump, after the installation and power supply connection, doesn’ t provide any water please verify:  correct wiring.  voltage conditions (70 – 190 VDC).  enough power available (solar irradiance).  water presence: if pump during operation runs dry, an alarm occurs and pump will stop. Every 5 minutes pump will attempt to restart the operation after 5 minutes.
  • Page 9 In according with: Machine Directive 2006/42/EC EMC Directive 2004/108/CE Low Voltage Directive 2006/95/EC We Nastec srl, Via della Tecnica, 8, 36024, Mossano, Vicenza, Italy, declare that NERA solar pumps conform to the following regulations: EN 55011 Class A EN 60335-1, EN60335-2-41 Ing.
  • Page 10 NOTE Copyright NASTEC srl Nastec reserves the right to modify informations in this manual without any notice. Nastec srl, Via della Tecnica, 8, 36024, Mossano, Vicenza, Italy, Tel. +39 0444 886289, Fax +39 0444 776099, www.nastec.eu, info@nastec.eu Watertorque Group Address: Lot 1 Brand Highway Muchea WA 6501 Phone: (08) 9195 0351 Email: nastec@watertorque.com.au...
