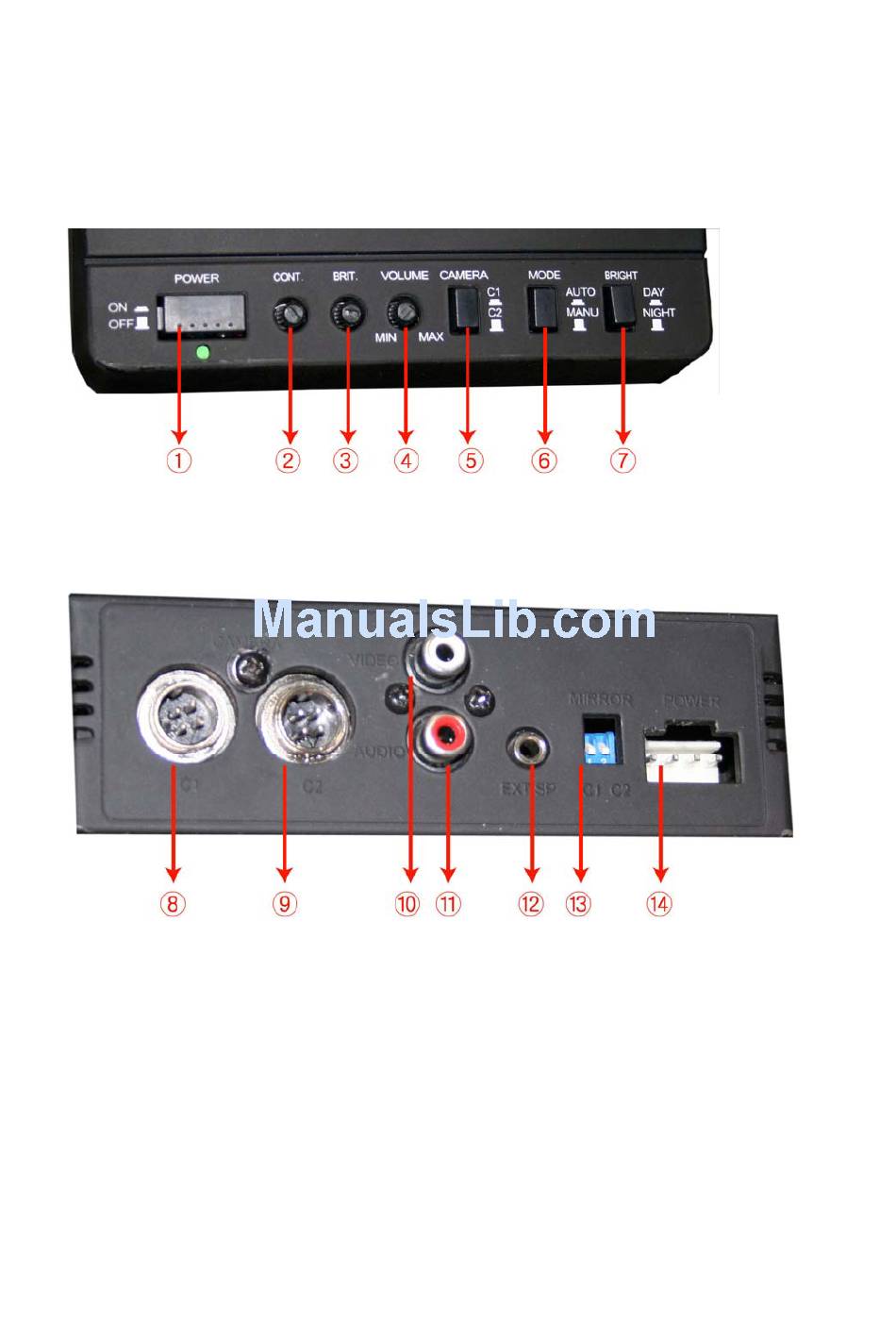

- Page 1 MONITOR FRONT REAR POWER ON/OFF SWITCH Switch for the power on/off. If the monitor is turned on, the LED of power is lit. 2. CONTRAST Adjust the picture contrast. Turn this control clockwise to increase the contrast, and turn it counterclockwise to reduce the contrast. 3.
- Page 2 Adjust the picture brightness. Turn this control clockwise to increase the contrast, and turn it counterclockwise to reduce the brightness. 4. VOLUME Adjust the audio level. Turn this control clockwise to increase the audio level, and turn it counterclockwise to reduce the audio level. 5.
-
Page 3: How To Install
11. AUDIO OUTPUT Audio output for other devices such as VCR. 12. EXT. SPEAKER Connect the external speaker if you need. 13. MIRROR/NORMAL IMAGE You can switch this Dip switch with (-) driver for mirror or normal image. You can view the mirror image if it is in the lower position, you can view the normal image when it is in the upper position (default setting: mirror image). - Page 4 ■ Attach the mounting bracket to the dash-board (not airbag area) or ceiling, wherever you want to install the monitor. Secure the bracket with the supplied screws as shown above. ■ Connect the wire connector with 4 wires in polarity to the power in jack on the rear of the monitor after connecting those wires as mentioned above (See14.DC POWER WIRES).
- Page 5 Unscrew on both sides of the camera and separate the mounting bracket and ■ sun visor from the camera. ■ Screw the mounting bracket to proper place on your vehicle and assemble the camera along with sun visor onto it. Connect the one end of cable (supplied) to the 4-pin Din jack on the rear of camera and the other end of cable to the monitor.
