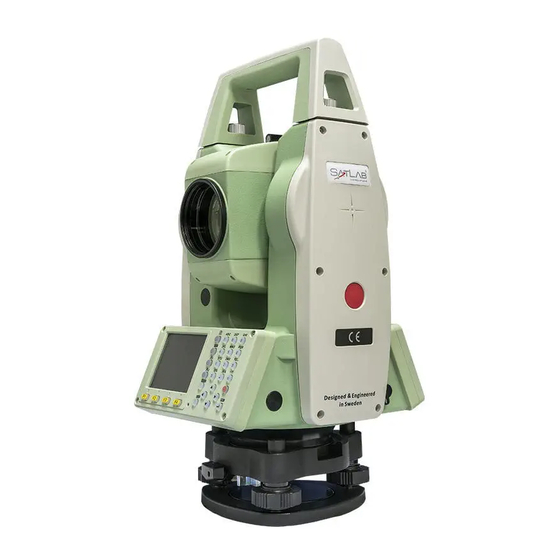

Summary of Contents for SatLab SLT2

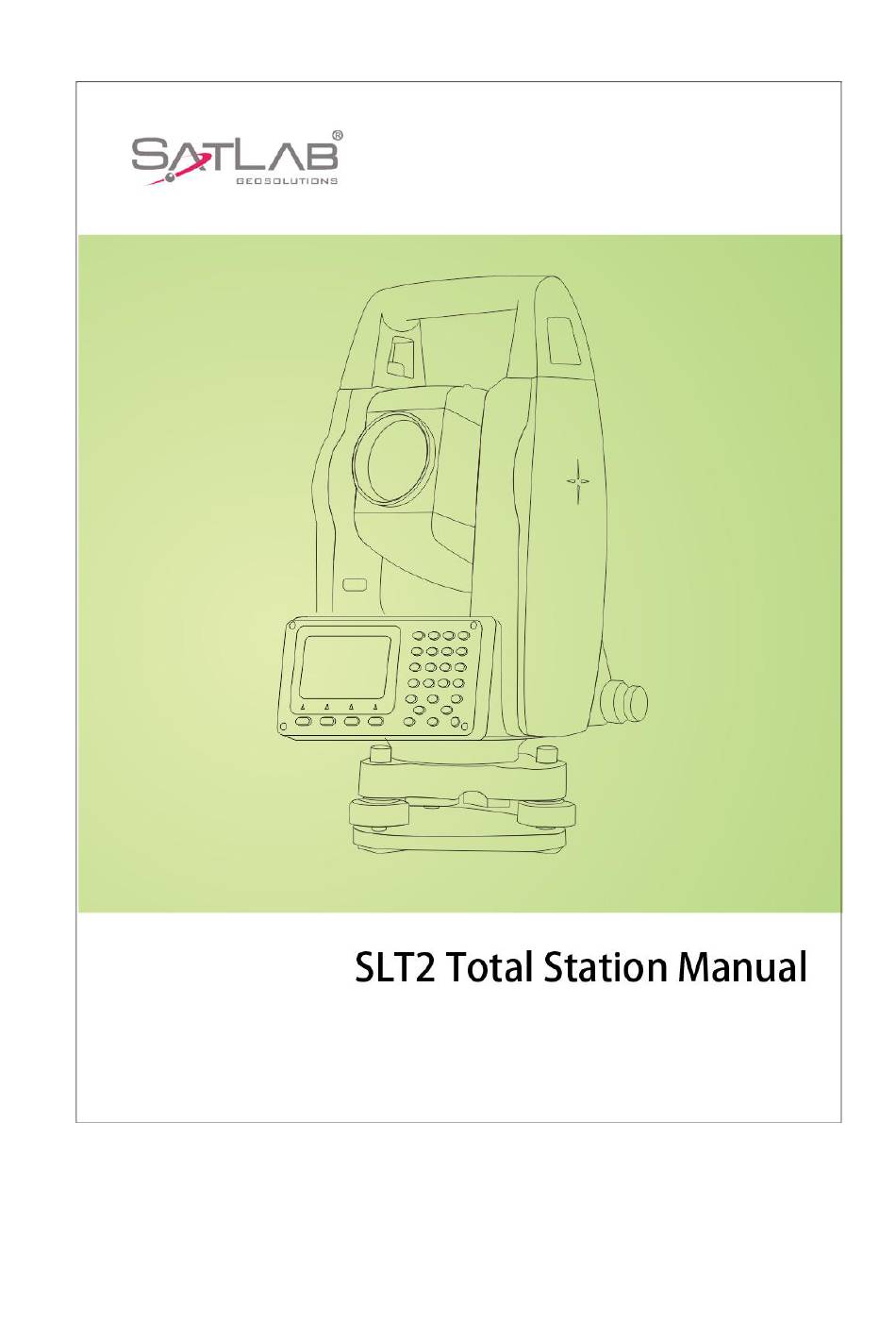

  • Page 2 Total Station Manual Preface Thanks a lot for purchasing our total station! This manual is your good helper, please read it carefully before using the instrument and keep it safely. Product affirms: In order to get the best service from our company, please feedback your instruments’ version including number, purchasing date and your suggestions to us after the purchasing of the product.
  • Page 3 Total Station Manual  Features: Rich Feature: Our Total Station is equipped with a wealth of measurement applications including data storage, parameter settings and etc. It’s suitable for all kinds of professional measurements. 1. Absolute coded dial With absolute digital dial, instruments can be measured directly when it powers on. The measured azimuth angle result will not be lost even when the instrument shut off.
  • Page 4 Total Station Manual NOTE: 1. Avoid look directly into the sun with the eyepiece when measuring. Recommended to use solar filter to reduce the impact 2. Avoid extreme temperature when storing equipment and sudden changes in temperature when using the instrument. 3.
  • Page 5 Total Station Manual  Security Guide Pay attention to the following safety matters when you use the laser ranging free of prism. Warning: Total station fit out laser level 3R/Ⅲa which is recognized by the loge, which is above: the vertical locking screw saying: “3A laser product ”.This product belongs to Class 3R level laser .According to the following standards IEC 60825-1: 2001Class 3R/Ⅲa laser product can reach five times of emission limits of the Class 2/ Ⅱ...
  • Page 6 Total Station Manual F: Properly store and safe keep the laser products when they it is not used, unauthenticated personals are not allowed using it. G: Do not point laser beams at surfaces such as plane mirror, metal surface, window, especially the surface of plane mirror and concave mirror.

  • Page 7: Table Of Contents

    Total Station Manual CONTENTS 1. Name and function of each part................10 1. Name........................ 10 2. Keys Functions and information display............12 2. Preparation before measurement................13 1. Unpack and store instrument................13 2. Setting up the instrument................13 3. About the battery..................... 15 4.
  • Page 8 Total Station Manual 3. NP/P Toggle.......................47 4. Height Transfer....................47 5. Hidden Point..................... 50 6. Free Coding.......................53 7. Laser Pointer.....................53 8. Light........................53 9. Unit Setting.......................53 10. Main Setting ....................54 11. EDM Tracking....................55 5. Applications......................56 1. Setting the Job....................56 1.1 Create a new Job..................
  • Page 9 Total Station Manual 11.2 Inverse....................108 11.3 Bearing-Bearing Intersection..............110 11.4 Bearing-Distance Intersection............113 11.5 Distance-Distance Intersection............115 11.6 Line-Line Intersection................. 119 11.7 Distance-Offset...................121 11.8 Set Point..................... 122 11.9 Extension .................... 125 12. Road......................127 12.1 Road Manage..................127 12.2 Road Stakeout..................129 12.3 Result.Setting out................130 12.4 Transfer....................130 13.
  • Page 10 Total Station Manual 1. General Setting....................172 2. EDM Setting....................176 9. Adjust and Tools..................... 177 1. Adjust......................177 1.1 View adjust parameters................178 1.2 Adjust Index Error.................179 1.3 Adjust Tilt X...................179 1.4 Adjust Tilt Y ................... 181 1.5 Adjust Tilt Zero..................183 1.6 Instrument constant setting..............

  • Page 11: Name And Function Of Each Part

    Total Station Manual 1. Name and function of each part 1. Name -10 -...
  • Page 12 Total Station Manual -11 -...

  • Page 13: Keys Functions And Information Display

    Total Station Manual 2. Keys Functions and information display Function Power ON/ Power OFF. MEAS Trigger key, depends on setting, maybe disting& save, disting or none. Cancel or exit. Confirm or commit editing. Page turning Hot key to enter function menu in measuring interface. User defined function key 1.

  • Page 14: Preparation Before Measurement

    Total Station Manual 2. Preparation before measurement Unpack and store instrument  Unpack Put down the box gently and turn up the cover then turn on the lock, open the cover and take out the instrument.  Deposit Cover up the telescope mirror and make the vertical motion of alidade upwards then put the instrument horizontally (keep the objective upwards) into box.
  • Page 15 Total Station Manual 4) Using the plate level to level the instrument precisely Loosen the horizontal locking screw and turn the instrument around until the plate level is perpendicular to a line shaped with screws A and B. Adjust the screws A and B to make the bubble in the center of the level; Turn the instrument approximately 90°...

  • Page 16: About The Battery

    Total Station Manual 3) Leveling instrument roughly by circular level (Same as The section above that discusses centering and leveling with plumb bob) 4) Leveling instrument accurately by tubular level (Same as The section above that discusses centering and leveling with plumb bob) 5) Centering and leveling accurately Loosen...

  • Page 17: Reflecting Prism

    Total Station Manual guarantee its capacity under other modes .Because consumption of power in distance measurement mode is more than that in angle measurement mode ,the instrument may end ranging sometimes due to insufficient capacity of battery (when switching between modes). Notice in charging: ...

  • Page 18: Input Mode

    Total Station Manual It means that focus or eyepiece diopter is not adjusted when there is a parallax with eye moving up and down, thus focus carefully and adjust eyepiece to reduce parallax. 7. Input Mode Total station keyboard includes alpha/digit keys. User can input letters and numbers directly.

  • Page 19: Delete Characters

    Total Station Manual Example: input 123ABV2 Steps Display ○ Pressing start inputting. Right-bottom screen displaying icon means in number input mode. ○ 2 Press key 1, key 2, key 3. Then press key F4, active text [1],[2],[3],[F4] input mode. Icon should appear in right bottom screen.

  • Page 20: Point Search

    Total Station Manual Steps Display ○ 1 Press key ← to move ← cursor to right side of the character that to be deleted. ○ [F1] 2 Press key F1(Delete). ○ 3 Press key ENT to confirm [ENT] / input. Press Key ESC to [ESC] undo changes.
  • Page 21 Total Station Manual Steps Display ○ Choosing ‘Survey’ application menu, then choose function ‘Set STA’. Entering point [F1] number, example ‘A1’, pressing ENT to finish input, then pressing F1 to search. ○ 2 In searching result window, using arrow key ↑ ↓ to move ↑↓...
  • Page 22 Total Station Manual ○ 3 If required point not exists in the job, user can manually [F2] input it by pressing key F2. by pressing ENT to input box. ○ 4 Input point number and N, [ENT] E, Z values, by pressing ENT to move cursor to next input box.

  • Page 23: Wildcard Search

    Total Station Manual ○ Entering searching point number. If using input point, [ENT] press key F2 (Zero) or F3 (Coord.)※ ○ 6 Press key F4 to search the [F4] point in the selected job. [F2](Zero): Set N, E, Z to 0. ※...
  • Page 24 Total Station Manual ○ 2 In searching result window, using arrow key ↑ ↓ to move ↑↓ cursor to select point number. [F4] [ENT] Press key F4 or ENT to confirm selecting. -23 -...

  • Page 25: Q-Survey

    Total Station Manual 3. Q-Survey 1. Notes in the distance measurement After the placement of instrument and turned on the power, total station is ready, can start measuring. In measurement display, user can call the function of set key, the function keys and hotkey.
  • Page 26 Total Station Manual in the light path. If there are temporary obstacles in the light path (such as by car, or the heavy rain, snow, or filled with fog), the distance measured by EDM is the distance to the nearest obstacle. When a long distance measurement, laser beam deviation of collimation line will ...

  • Page 27: Edm Setting

    Total Station Manual 2. EDM Setting 2.1 Set the mode of EDM Select the mode of distance measurement, there are 6 modes : Single,Repeat,Tracking,3 Times,4 Times,5 Times. Steps Display ○ 1 Press [F4]( ↓ )and show the [F4] second soft [F3] Q-Surveying.
  • Page 28 Total Station Manual refer to “Technical Parameters”. Steps Display ○ After entering to the interface of EDM Setting, using ↓ the direction of↓ to move the cursor to the setting item of Reflector. ○ 2 Press ← → to select the ←...

  • Page 29: Atmosphere Setting

    Total Station Manual Steps Display ○ After entering interface of EDM Setting, using ↓ the direction of↓ to move the cursor to the setting item of P.C. ○ 2 Enter the prism constant [ENT] value and press the key of [ENT].
  • Page 30 Total Station Manual Steps Display ○ After entering interface of EDM Setting, press [F1] [F1] (Atoms) to enter the interface of Atmospheric Data. ○ Interface displays current setting, using direction of ↓ to move the ↓ cursor to the setting item of Refraction.
  • Page 31 Total Station Manual  Standard meteorological conditions (atmospheric correction value =0 ): press: 1013hPa temperature: 20℃  If the atmospheric correction is not required, please set PPM to zero. Steps Display ○ After entering to the interface of EDM Setting. Press [F1] (Atoms) [F1] enter interface...

  • Page 32: Grid Factor Setting

    Total Station Manual ○ 5 After finishing setting, press [F4](OK) to save settings and back [F4] to previous menu. Then press the [F3] key of [F3](OK) to save the setting of EDM and back to the function of measurement. ※1: The range of enter: Temp.(-30℃～60℃), Press.(500hPa～1400hPa). ※...

  • Page 33: Edm Signal

    Total Station Manual 2. The enter range of the average height above sea level: -9999.9999~9999.9999. The average altitude retained after the decimal point one, the default value is 0. Steps Display ○ 1 After entering to the interface of EDM Setting, press the key of [F4] [F4] to enter the second page of [F1]...
  • Page 34 Total Station Manual Steps Display ○ After entering to the interface of EDM Setting, press [F4] the key of [F4] to enter the second page of soft key, then [F2] press the key of [F2](Signal) to enter the function of Signal intensity.

  • Page 35: Start Measurement

    Total Station Manual 3. Start measurement Q-Survey has 3 pages menu, including all measuring functions commonly used, such as angle measurement, distance measurement and coordinate measurement. As shown below: 3.1 Set HA You can set the horizontal angle as 0 or set it as wanted angle. Set horizontal angle to 0.
  • Page 36 Total Station Manual ○ 2 Press [F2](Zero), the screen [F2] give a prompt to set HA as 0 or not. ○ Press [F4](Yes), the screen [F4] backs to Q-Survey and HA is set as 0. If you want to cancel the [F1] operation, please press [F1](No).
  • Page 37 Total Station Manual If want other value of angle as the orientation angle, you need to enter the wanted value of angle and press [ENT], then press [F4](OK). [F4] B: Input angle Example: enter 121.2030 (121 ° 20′30″). C: [Zero] If want to set HA to 0,press [F1] [F1]( Zero) and...

  • Page 38: Set Station And Instrument Height

    Total Station Manual 3.2 Set Station and instrument height After set the coordinate of station (the site of instrument) relatives to the origin, the instrument can calculate the coordinate of the location to your position (the site of prism). You can set station and the instrument height conveniently in the Q-Survey. Steps Display [F4]...

  • Page 39: Measurement

    Total Station Manual 3.3 Measurement After all settings have been finished, you can start to measure. There are 3 pages to display the result of measurement, including all measurement data and you can press [PAGE] to view. Steps Display ○ 1 Input the name of point and [ENT] instrument...

  • Page 40: Code

    Total Station Manual 3.4 Code The code contains the information about the recording points, in the process of post-processing, with the help of encoding function , you can process conveniently according to the specific group. The function “File Manager” also contains the information of code.
  • Page 41 Total Station Manual :The order to save code and measurement data is set in the “Setting” function. ※ The set items of code record are Before REC and After REC. Before REC: Record code data before recording the actual measurement data. After REC: Record code data following after the actual measurement data.

  • Page 42: Functions

    Total Station Manual 4. Functions Bring the total station’s common functions and settings together, they can be used in the process of measurement conveniently. In the function of Q-Survey which in the Main menu or other interface of measurement in the program, you can press [FNC] to enter the menu of Function The menu of Function has 4 pages, you can press 【PAGE】...

  • Page 43: Offset

    Total Station Manual ◆ Press [On] to open the compensator and press [Off] to close the compensator. ◆ Press [X Only] to open the compensator of X direction. ◆ Press [▲][▼] to adjust the laser plummet brightness. ◆ Press [OK] to close the laser plummet and exit. 2.

  • Page 44: Cylinder Offset

    Total Station Manual When the offset point is set on the front of target point or on the back of target point, you should make it on the line of station point and target point. Steps Display ○ 1 In the program of Q-Survey, press [FNC] to open the menu [F2] of Function, next pressing [F2]...
  • Page 45 Total Station Manual point and cylinder is in the bisector of angle of station point with cylinder in Hz Left and Hz Right. Turning the instrument to make the collimation axis in the bisector of angle that station point with cylinder in Hz Left and Hz Right, thus can measure the distance between cylinder and station.

  • Page 46: Angel Offset

    Total Station Manual and enter the interface of Cylinder Offset-Result. ○ 5 Display the result of cylinder offset. 2.3 Angel Offset Angle Offset is used to measure the points which are intervisible but have no reflector and can’t set up the prism. The basic principle is making the target point and measurement point in the concentric circles whose center is station point, then measurement the position information of station point and measurement point and the angle offset of station to target point, thus can calculate the coordinate of target...
  • Page 47 Total Station Manual ○ Press [F3] to enter the [F3] subprogram of Angel Offset. ○ 3 Aim at the measurement [F1] point and press [F1] to measure distance. ○ 4 Aim at the target point and press [F4] to make sure the [F4] direction of target point, next enter the program that displaying...

  • Page 48: Np/P Toggle

    Total Station Manual 3. NP/P Toggle Switch the mode of reflector quickly. (P is the mode of Prism and NP is the mode of Non-Prism) Open the first page of Function Menu and press [F3] to switch the mode of reflector. 4.
  • Page 49 Total Station Manual Steps Display ○ 1 Press [F4] or [4] in the first [F4] page of [Function] to enter the function of Height Transfer measurement. ○ 2 Press [F4] twice and display [F4] the third page of soft keys, press [F2](IH)to enter...
  • Page 50 Total Station Manual ○ Select the fixpoint and input the height of Prism. The numbers measured fixpoints are displayed in the [F4] top right corner. There methods [F2] A: [List] selecting fixpoint. A: Press [F4] to enter the [F4] second page of soft key and press [F2](List) .In the dialog of [Find Pt.], by pressing [▲] or [ ▼...

  • Page 51: Hidden Point

    Total Station Manual ○ 4 After finishing setting up [F1] the fixpoint, the height of fixpoint is displayed in the [F2] screen and press [F1](ALL)or [F2](DIST)+[F3](REC) to start to [F3] measure and calculate, height of station is calculated. ○ 5 In the interface of [Height Transfer Result], pressing...
  • Page 52 Total Station Manual The length of measuring rod is known, by measuring the position information of prism 1 and prism 2 in the measuring rod and using mathematical methods to calculate the coordinate of hidden point on the other side of the measuring rod. Steps Display ○...
  • Page 53 Total Station Manual ○ [F1] 4 The instrument aims at the prism on the top and pressing [F2] [F1] to finish measuring the first prism and enter the interface of [F3] measuring the second prism. ○ 5 Aim at the second prism and press [F1] to finish the second prism’s measurement.

  • Page 54: Free Coding

    Total Station Manual 6. Free Coding Please refer to “3. Q-Survey”→“3. Start Measurement”→“3.4 Code” 7. Laser Pointer Open or close the laser fastly. 8. Light Turn on or off the light of instrument screen fastly. Open the second page of Function Menu and press [F4] to turn on or off the Light.

  • Page 55: Main Setting

    Total Station Manual Open the third page of Function Menu and press [F1] to enter the interface of unit setting. After finishing setting the units in the interface of Unit Setting, press [F4](OK) to save the settings, press [F1](Reset)to restore all units to factory default. 10.

  • Page 56: Edm Tracking

    Total Station Manual 11. EDM Tracking Open or close the mode of EDM Tracking fastly. Open the third page of Function Menu, press [F3] to open or close the mode of EDM tracking. -55 -...

  • Page 57: Applications

    Total Station Manual 5. Applications Prepare setting before measuring: Before starting the application, there are some preparations needed to set up. The Pre-Settings screen will be shown after the user selects an application. User can select and set the content of the Pre-Settings menu successively. [*]: Setting has been done.

  • Page 58: Select An Existing Job From Memory

    Total Station Manual ○ 2 Press [F2](New) and then enter the Create a New Job screen. [F1] Press [F4](OK), the displayed job will be set as current job and then back to Pre-Settings screen. ○ 3 Continue to show New Job Input job’s screen.
  • Page 59 Total Station Manual Steps Display ○ 1 Press [F1] in the Pre-Settings [F1] screen. Then enter the Set Job function. ○ 2 Press [F1] (List) to enter Job [F1] list screen. ○ 3 All the existing jobs, including that stored on SD Card and will be shown as a list.

  • Page 60: Setting The Station

    Total Station Manual 2. Setting the Station Every target coordinate's calculation is related to the position of the station. The station coordinate can be input manually or selected from the instrument memory. 2.1 Select the coordinate from memory [Find] Steps: 1、...
  • Page 61 Total Station Manual ○ 3 Press [F1](Find): A: If the input name exists in the current job, there will show the screens shown on the right figure. The multiple points with the same name will be sorted by type. B: If the input name doesn’t exist in the current job, the program prompts the message “Pt.

  • Page 62: Select The Fix Point In The Memory [List]

    Total Station Manual screen. Continue to set the coordinates of station. ○ 5 Back to Pre-Settings screen. The setting items that have been made are marked with *. : The details of [Find Pt.] can be found in the chapter “Find Point”. You can also ※...

  • Page 63: Input The Coordinates Manually

    Total Station Manual [View]: [Coord.]: ○ Select the needed point through Up and Down key. [View]: Show the information of ↑ this point. [Coord.]: Input the coordinate ↓ data manually. [Job]: Select data from another job. [Job]: [F4] ○ 5 After selecting needed point, input instrument press [F4](OK) and enter input...
  • Page 64 Total Station Manual 3. [OK] Save the station coordinates. And then input the instrument height. Steps Display ○ 2 Press [F3](Coord.) in the [Set [F3] STA] screen. Input point ○ 3 Input the point name and the name point’s coordinates. After coordinate inputting one item, the curser...

  • Page 65: Setting The Orientation

    Total Station Manual ○ 6 Back to Pre-Settings screen. The setting items that have been made are marked with *. 3. Setting the Orientation The orientation can be input manually or determined from points that are either measured or selected from the memory. 3.1 Manual input orientation Steps: 1.
  • Page 66 Total Station Manual Steps Display ○ 1 Press [F3] in the Pre-Settings [F3] screen. Then enter the Set STA function. ○ 2 Press [F1] and select the [F1] [Angle Setting] input orientation manually. Input ○ 3 Aim B.S. point and then input horizontal the azimuth, prism height and angle...

  • Page 67: Set Orientation With Coordinates

    Total Station Manual ○ 5 Back to Pre-Settings screen. The setting items that have been made are marked with *. 3.2 Set orientation with coordinates The determination of the direction value can also be carried out using a point with a known coordinate. Steps: 1.

  • Page 68: Starting The Applications

    Total Station Manual ○ 3 Aim backsight point and then press [ENT]. Press [F1](ALL) or press [F2](DIST) and [F3](REC) to start measuring and finish setting orientation. User can also press [F3](REC) to [ENT] finish setting orientation without measurement. [F1] [F2]、[F3] Press the [PAGE] key to switch the display of measured values screen and backsight inspection...

  • Page 69: Surveying

    Total Station Manual  Free Station  Tie Distance  Area  Remote Height  COGO  Road Steps: 1. Go to the MAIN MENU. 2. Move the focus to [Program] or press the Numeric key 2 to select and go to the PROGRAM MENU.
  • Page 70 Total Station Manual Input point ○ 2 Input the point name, and name then press [ENT] to move to next input item to input prism height. [ENT] ○ 3 Input the prism height and Input prism height then press [ENT] to move the cursor to next input item.

  • Page 71: Individual Point

    Total Station Manual 5.1 Individual Point [IndivPt]: In the data acquisition, point can be recorded individually. Press this key to switch the screens of Individual Point Measurement and Consecutive Point Measurement. Steps Display ○ 1 Press [F4](↓) twice to display [F4] the last page of soft keys.

  • Page 72: Data

    Total Station Manual ○ Press [F1](ALL) or press [F1] [F2](DIST) and [F3](REC) to start measuring record [F2]+[F3] measured data. ○ 5 Finish measuring, application turn function measuring individual point and then continue to display the consecutive point name. 5.2 Data [Data]: Look over the measured data which are saved in current job.
  • Page 73 Total Station Manual ○ 3 After inputting the target Input point point’s name or wildcard (*), name/ press [ENT] and then press wildcard [F4](View) to look over the data. If there is no match point, the [ENT] program prompts “Pt. found!”...

  • Page 74: Stakeout

    Total Station Manual 6. Stakeout The Stakeout Application can calculate lofting elements base on lofting point’s coordinate or manually input angle or horizontal distance. The application can continuously display differences, between current position and desired stake out position. Steps of Stakeout : 1.
  • Page 75 Total Station Manual Input ○ 2 Input the name of stakeout stakeout point in the Search item. Press point’s [ENT] to start Find Point function. name (Or input wildcard "*"to start the wildcard search.) [ENT] ○ The program search the point name in the job and show the result dialog.
  • Page 76 Total Station Manual the stakeout points list, the newest point is at the back and the fix point is in the front of measured point. But in the other points list, the newest point is at the back and the measured point is in the front of fix point. ...
  • Page 77 Total Station Manual [SO-PT]: Press [SO-PT] to input a stakeout point without point name and being saved into job. Steps Display ○ 1 Press [F4] ( ↓ ) to view the [F4] third page of soft keys. [F2] ○ 2 Press [F2](SO-PT) to go to Input point SO-Input data screen.

  • Page 78: Polar Stakeout Mode

    Total Station Manual 6.2 Polar Stakeout Mode The meanings of the differences in the Polar Stakeout mode: Difference in direction: If the measured point is located in the right side △Hz of stakeout point, the value is positive. Difference in horizontal distance: If the measured point is farther than △...
  • Page 79 Total Station Manual [PAGE] ○ 2 Press [PAGE] to go to page ↓ 1/3(Default page). Press direction key and move the cursor to input prism height item. Input the Input prism prism height and then press height [ENT] to confirm. [ENT] ○...
  • Page 80 Total Station Manual ○ 6 Move the prism according to the direction of the arrow to make the value of △ equal Arrows Meaning: ↓ : Move the prism close to the station. ↑: Move the prism far away the station.

  • Page 81: Orthogonal To Station Stakeout Mode

    Total Station Manual 6.3 Orthogonal to Station Stakeout Mode Use longitudinal difference and perpendicular difference to indicate the position differences of stakeout point and current prism position. The meanings of the differences in the Orthogonal to Station Stakeout Mode: Difference in longitudinal distance: If the measured point is farther △Length than stakeout point, the value is positive.
  • Page 82 Total Station Manual ○ Aim at the prism. Press [F2](DIST) to start measuring and calculate the differences between measured point and stakeout [F2] point. The arrow’s direction is the direction of the prism need to move. ○ 4 Move the prism according to the direction of the arrow to make the value of ΔLength equal 0m.
  • Page 83 Total Station Manual ○ 6 It means the current prism position is effective stakeout point while both the △ Length and △Trav. are 0. △Z/H: Display as dig or fill data. ↓ : The value expresses the depth of needed to dig. ↑...

  • Page 84: Cartesian Stakeout Mode

    Total Station Manual 6.4 Cartesian Stakeout Mode Stake out point based on the Cartesian coordinate system. The deviation values are the coordinate differences. The meanings of the differences in the Cartesian Stakeout Mode: The difference in East coordinate between measured point and stakeout △Y/E point.
  • Page 85 Total Station Manual ↓ ○ 2 Press direction key and move the cursor to input prism height Input prism item. Input the prism height and height then press [ENT] to confirm. [ENT] ○ Aim at the prism. Press [F2](DIST) to start measuring and [F2] calculate the differences between measured point and stakeout...
  • Page 86 Total Station Manual using the Repeat Measurement or Tracking Measurement, the calculation of the differences between measured point and stakeout point can be displayed in real time and convenient. ○ 6 It means the current prism position is effective stakeout point while both the △...

  • Page 87: Polar

    Total Station Manual 6.5 Polar Press [Polar], then input the polar stakeout elements: Azimuth and Horizontal distance. Start to stake out after finishing inputs of Azimuth and Horizontal distance. Steps Display ○ 1 Press [F4]( ↓ ) twice to view [F4] the second page soft keys.
  • Page 88 Total Station Manual ○ Aim at the prism. Press [F2](DIST) to start measuring and [F2] calculate the differences between measured point and stakeout point. ○ Turn instrument telescope to make the △ Hz equal 0°00’00” and command the staff to move the prism at the same time.
  • Page 89 Total Station Manual ○ 7 Move the prism along the arrow direction to make the value of △ equal 0m. In the process of staking out, if using the Repeat Measurement or Tracking Measurement, the calculation of the differences between measurement point and stakeout point can be displayed in real time and convenient.

  • Page 90: Resection

    Total Station Manual 7. Resection Resection measurement is an application used to determine the coordinate of the instrument station by measuring multiple known points. A minimum of 2 and a maximum of 5 known points can be used to determine the station. It should be used at least 2 known points by distance measurement or at least 3 known points by angle measurement.
  • Page 91 Total Station Manual ○ 4 The window back to the [F2] [Resection] window, and press [F2] to set error limits. ○ 5 Press [◄] \ [►] to turn on the error limits status and use the Input error key [▲] \ [▼] to move the focus limits down to input the every error limit.
  • Page 92 Total Station Manual Distance measurement: [F1] (ALL) or [F1] + [F2] (DIST + REC). ○ 9 When finish a known point measurement, press [F2] (NEXT PT) to start next known point [F2] ○ measurement. Repeat steps ○ ○ 10 If the measured known points are enough, [Result] will display on the screen, then press [F3] Press [F3] (Result) to enter the...

  • Page 93: Tie Distance

    Total Station Manual 8. Tie Distance Tie Distance is an application used to compute slope distance, horizontal distance, height difference and azimuth of two target points which are either measured, selected from the memory, or input using the keypad. The user can choose between two different methods: •...
  • Page 94 Total Station Manual ○ 2 After finishing setting job, station and orientation, press [F4] [F4] in the Pre-Setting menu to go to Select Tie Distance Mode screen. ○ Press [F1] to select the [F1] Polygonal tie distance. ○ 4 Start to measure the first PAGE1 target point.
  • Page 95 Total Station Manual ○ 5 Start to measure the second PAGE1 target point. Aim at the second Press [F1] target point and press [F1](ALL) or [F2](DIST) + [F3](REC) to [F2] + [F3] finishing measurement. ※ ○ 6 Show the result of polygonal tie distance.

  • Page 96: Radial

    Total Station Manual 8.2 Radial While Radial tie distance measuring continuous points, the new tie distance’s first point continues using the previous tie distance’s first point(P1-P2 、 P1-P3 、 P1-P4……). Steps Display ○ 1 Press [F4] in the Program [F4] Menu to go to Tie Distance application.
  • Page 97 Total Station Manual ○ Press [F2] to select the [F2] Polygonal tie distance. ○ 4 Start to measure the first PAGE1 target point. Aim at the first Press [F1] target point and press [F1](ALL) or [F2](DIST) + [F3](REC) to [F2] + [F3] finishing measurement.
  • Page 98 Total Station Manual ○ 6 Show the result of Radial tie distance. [NewPt1]: Start a new Radial tie distance. [NewPt2]: This Radial distance’s first point continues to polygonal distance’s first point and then go ○ to measure the new second target point. [Polygonal]Radial: Polygonal tie distance.

  • Page 99: Area & Volume

    Total Station Manual 9. Area & Volume Area is an application used to calculate the polygon areas to a maximum of 20 points which connected by straights. The target points coordinate can be measured, selected from memory or entered via keypad in same direction. And the following three methods can be alternately performed.
  • Page 100 Total Station Manual ○ After finishing [F4] pre-settings (know more details at the beginning of chapter 5), press [F4] to start Area/volume app. ○ To measure the points of the polygon, you will get the area result once the points are more than 3, while you will also get the 3D result if you had defined the 3D surface.

  • Page 101: Remote Height

    Total Station Manual [DTM-GRD]: To calculate the ground defined area by TIN method. [BL-Area]: To calculate the ground defined by the break line by TIN method. [DTM-V-I]: To calculated volume by TIN method [EXPAND-R]:expansion rate, to give a ratio of the volume A to volume B, Volume A is the actual volume while volume B is the volume after the earthwork.
  • Page 102 Total Station Manual Prism High Known If the high of prism is known, the calculation formula of the remote height is: H = S * cosα * tanα – S * sinα Height difference between the base point and the remote point Prism High α...
  • Page 103 Total Station Manual ○ Turn instrument telescope aimed at remote point [F4] and press [F4] to finish current remote point measuring. Press [F1] to re-set the base point. -102 -...

  • Page 104: Prism High Unknown

    Total Station Manual 10.1 Prism High Unknown If the high of prism is unknown, the calculation formula of the remote height is: H = S * cosα * tanα – S * sinα * tanα Height difference between the base point and the remote point Prism High Slope distance between instrument and prism α...

  • Page 105: Cogo

    Total Station Manual ○ 4 Move the prism just standing below the remote point, then [F1] or aim at the bottom of prism rod [F2]+[F3] and press [F1] (ALL) or [F2] + [F3] (DIST + REC) to finish the base point measuring.
  • Page 106 Total Station Manual Figure 11.1 Traverse Diagram Known known point Direction from P1 to P2 Distance between P1 and P2 Positive offset to the right Negative offset to the left Unknown COGO point without offset COGO point with negative offset COGO point with positive offset Steps Display...
  • Page 107 Total Station Manual ○ After finishing [F4] pre-settings (know more details at the beginning of chapter 5), press [F4] to start COGO app. [F1] ○ 3 In [COGO Menu] screen, press the [F1] or number key [1] enter the [Traverse & Inverse] screen, press [F2] or [2] enter the traverse sub [F2]...
  • Page 108 Total Station Manual B: Select the point by list in the memory. B: Press [F1](List) in [Traverse] screen, use the key [▲]\[ ▼ ] [F1](List) to select a Known point in the point list traverse [F4](OK) calculation, then press [F4](OK) to be selected. C: Input the name of the point C: Input the name of known and find whether it is in memory.

  • Page 109: Inverse

    Total Station Manual ○ Input the name of result point in the [Traverse Result] [F4](REC) and press [F4](REC) to save the point. ※ In all of the above operation, press [ESC] to return to the previous screen. ※ The result point is plane data. 11.2 Inverse Use the inverse sub application to calculate the distance, direction, height...
  • Page 110 Total Station Manual Steps Display ○ 1 In the [Traverse & Inverse] [F1] screen, press [F1] or [1] to enter Inverse application. A: Get the known point by COGO-Meas ○ 2 There are four ways to get the known point for inverse Input calculation.

  • Page 111: Bearing-Bearing Intersection

    Total Station Manual C: Input the name of the point C: Input the name of known and find whether it is in memory. point and press [F3](Find) to Input find whether the point is in name memory, if exist, then press [F4](OK) to be selected for [F3](Find) calculating;...
  • Page 112 Total Station Manual point of two lines. A line is defined by a point and a direction. Figure 11.3 BRG-BRG Diagram Known First known point Second known point Direction from P0 to P2 Direction from P1 to P2 Unknown COGO point Steps Display [F2]...
  • Page 113 Total Station Manual ○ Input the name of first point in “PT1” field. Input ※ There are four ways to get name known point first point BRG-BRG calculation. Please refer to the step ② in the “COGO Traverse”. [▼] ○ Move the focus to “AZ1”...

  • Page 114: Bearing-Distance Intersection

    Total Station Manual in the [BRG-BRG Result] and press [F4](REC) to save the point. ※ In all of the above operation, press [ESC] to return to the previous menu. ※ The result point is plane data. 11.4 Bearing-Distance Intersection Use the bearing-distance (BRG-DST) sub application to calculate the intersection point of a line and a circle.
  • Page 115 Total Station Manual Steps Display ○ 1 In the [Intersection] screen, [F2] press [F2] or [2] to enter the BRG-DST subapplication. ○ 2 Input the name of first point in “PT1” field. Input ※ There are four ways to get name known point...

  • Page 116: Distance-Distance Intersection

    Total Station Manual [▼] ○ Move the focus to “HD2” by using [ ▼ ] and input the Input radius after set second point. radius ○ 6 When all of the data are entered correctly, press [F2] (Result) calculate intersection point and show the results.
  • Page 117 Total Station Manual Figure 11.5 DST-DST Diagram Known First known point Second known point Radius, as the distance from P1 to P3 or P4 Radius, as the distance from P2 to P3 or P4 Unknown First COGO point Second COGO point Steps Display ○...
  • Page 118 Total Station Manual ○ 2 Input the name of first point in “PT1” field. ※ There are four ways to get first known point point DST-DST calculation. Please ○ refer to the step 2 in the “COGO Traverse”. [▼] ○ 3 Move the focus to “HD1”...
  • Page 119 Total Station Manual in the [DST-DST Result] and press [F4](REC) to save the point. Press [F1] to switch to view results. ※ In all of the above operation, press [ESC] to return to the previous menu. ※ The result point is plane data. -118 -...

  • Page 120: Line-Line Intersection

    Total Station Manual 11.6 Line-Line Intersection Use the line-line (LNLN) sub application to calculate the intersection point of to lines. A line is defined by two points. Figure 11.6 LNLN Diagram Known First known point Second known point Third known point Fourth known point Line from P1 to P2 Line from P3 to P4...
  • Page 121 Total Station Manual ○ 2 Set the known point one by one. ※ There are four ways to get the known point for LNLN known calculation. Please refer to points ○ the step 2 in the “COGO Traverse”. ○ 3 When all of the points are set correctly, press [F2](Result) to calculate the intersection point and show the results.

  • Page 122: Distance-Offset

    Total Station Manual 11.7 Distance-Offset Use the distance-offset (DistOff) sub application to calculate the foot point (COGO point) coordinates of offset point to baseline, the baseline is defined by two known points, and the longitudinal and offset distance of the offset point in relation to the line.

  • Page 123: Set Point

    Total Station Manual [F1] ○ Set the start point, end point and offset point one by one. ※ There are four ways to get known the known point for DistOff points calculation. Please refer to ○ the step 2 in the “COGO Traverse”.
  • Page 124 Total Station Manual Figure 11.8 Set Point Diagram Known Start Point End Point △Line △Offset Unknown P3 COGO point Steps Display ○ 1 In the [Offsets] screen, [F2] press [F2] or [2] to enter the Set Point sub application. ○ Set the start point and end point.
  • Page 125 Total Station Manual ○ Then baseline is defined, [▼] press [ ▼ ] key to move the focus down and input the Input longitudinal offset distance distance. ○ 4 When all of the data are correctly, press [F2](Result) to calculate the intersection point and show the results.

  • Page 126: Extension

    Total Station Manual 11.9 Extension Use the Extension sub application to calculate the coordinate of extended point from a known baseline. Figure 11.9 Extension Diagram Known Baseline Start Point Baseline End Point L1, L2 Extension Distance Unknown P2, P4 Extended COGO Point Steps Display ○...
  • Page 127 Total Station Manual ○ Set the baseline start point and end point. ※ There are four ways to get Set known the known point for Extension points calculation. Please refer to ○ the step 2 in the “COGO Traverse”. ○ Then baseline is defined, [▼] press [ ▼...

  • Page 128: Road

    Total Station Manual 12. Road Road is an application used to measure or stake out points relative to a defined element. The element can be a line, curve or spiral. Chainage, incremental stake outs and offsets(left and right) are supported. Setting job, setting station and setting backsight must be done before road define and staking out.
  • Page 129 Total Station Manual ○ There are 2 methods for defining a road. Press F1 [F1] Elements Method first method. ○ 4 Then input the data by clicking F1 Add button. There are three types of the elements※ [STR]: Straight line, adius should keep 0.000, which...

  • Page 130: Road Stakeout

    Total Station Manual Clicking F1 Add to add the necessary info※ : The type combo must be Line-Spiral-Curve-Spiral-Line, ※ Line-Spiral-Spiral-Line,Line-Curve-Line, Spiral-Curve-Spiral. : Maximum 20 sets of data can be used in Intersection Method. ※ 12.2 Road Stakeout After the road had been designed and had been implemented into the program, user can start to do road stakeout.

  • Page 131: Result.setting Out

    Total Station Manual 12.3 Result.Setting out After the staking out, the result can be checked. Steps Display ○ 1 Click F3 Result.Setting out for [F3] the result checking. ○ result with [F1] corresponding result viewed here. 12.4 Transfer User can import the predefined road data for staking out while he can also export the result.

  • Page 132: Stakeout Reference Element

    Total Station Manual [PHI]:Means the intersection data. [Sec]:refer to the element method [TXT]: is for the stake data. [F3] All data mentioned above can be created by Hi-Survey. 13. Stakeout Reference Element Stakeout Reference Element is used for making Reference Element stakeout and check easier, such as building, road cross section, or simple excavation.
  • Page 133 Total Station Manual Known Baseline Reference Line First point First reference point Second point Second reference point Offset Line Rotate Unknown Measure point ΔLength Δtrav.  Reference Line Steps Display [F1] ○ Press [F1] or numeric key [9] in main menu, then set Job, enter [Reference Line/ARC] menu([F4]), press [F1]...
  • Page 134 Total Station Manual B: Get the target point by DIST+REC. B: Input point name, Press [F2](DIST) + [F3](REC) to save [F2] target point, the saved result will directly into [F3] calculation. C: Input the name of the point and Input point find whether it is in memory.
  • Page 135 Total Station Manual [F1] [F2]+[F3] ○ After defining first point of baseline, enter into interface of [F4]+[F1] second point definition, the way is same as with first point. [F4]+[F2] [F4]+[F3] ○ After baseline definition, [▲]\[▼] enter [Reference Line-Main] interface, select settings through Input [▲]\[▼] , input translation and parameter...
  • Page 136 Total Station Manual ⑤ interface [Reference Line-Main], baseline needs to be redefined, [F4] press [F4]( ) to shift to ↓ subscript function and press [F1] [F1] (NewBL) redefine baseline. ⑥ interface [Reference Line-Main] , input translation parameters, if you [F4] need to clear, press [F4] ( ) to ↓...
  • Page 137 Total Station Manual ③ In [Stakeout Grid] interface, [◄]\[►] use [◄]\[►] to select the offset, chainage, then press [F1](ALL) or [F1] [F2]+[F3] (DIST+REC) to save this measuring point data. [F2]+[F3] In above operations, press [ESC] to return to previous menu. ※...
  • Page 138 Total Station Manual C: Input the name of the point and C: Input the name of known Input point find whether it is in memory. point and press [F4]( ) to shift ↓ name to subscript function, then press [F3](Find) to find whether the [F4] point is in memory, if exist, then press [F4](OK) to be selected for...
  • Page 139 Total Station Manual Steps Display ○ In [Reference Line-Main] screen, press [F3](Stake) enter [F1] [Orthogonal stakeout] to input stakeout values. [▲]\[▼] ② In interface of [Orthogonal Stakeout] Input [▲]\[▼] to select input box, use parameter keyboard to set every offset parameters, then press [F4](OK) to enter orthogonal stakeout.

  • Page 140: Refarc

    Total Station Manual ② In [Segment Definition] [▲]\[▼] screen, select input through [ ▲ ]\[ ▼ ], Input keyboard to set the Segment parameters Length, the Segment No. and others, then press [F4](OK) to [F4] enter segment stakeout.※ ③ In [Stakeout Segment] [◄]\[►] screen, use [◄]\[►] to select segment...
  • Page 141 Total Station Manual Known RefArc Start PT Centre End PT Unknown Measure point ∆Line ∆Offset  Centre, Start PT Steps Display [F1] ○ In [Program] main menu 3/3 page, press [F1] or numeric [9], set job, B.S. and enter [Reference Line/ARC] menu, then press [F2] or numeric [2] [F2] to enter RefArc function.
  • Page 142 Total Station Manual ○ [Define Ref-ARC method] screen, then press [F1] [F1] or numeric key [1] , enter [Centre, Start Point] method, measure Centre point define arc. A: Get the target point by measure. ③ There are several methods to obtain CtrPt which is used for RefArc definition Input point name...
  • Page 143 Total Station Manual D: Select the point by list in the instrument. D: Press [F2](List) , in [Find Pt.] [F2] dialog, search known points in job through [▲]\[▼] [F4] and press [F4](OK) to select. E: Input the point through keyboard. [F3] E: Press [F3] (Coord.), input point name, coordinate's data,...
  • Page 144 Total Station Manual If it needs to define a new RefArc , press [F1](NewArc) to [F1] define. When the centre and start point coincide, the system error reporting "invalid ※ target data, please input again, select "yes" or press [ESC], return to the measurement center interface, and restart the definition of arc.
  • Page 145 Total Station Manual ○ In [Define Ref-ARC method] screen, press [F2] the [F2] or the numeric key [2] to choose the [Start&End Pt, Angle ], and measure start point. A: Get the target point by measure. ③ There are several method to obtain the first point for baseline Input point name...
  • Page 146 Total Station Manual the known points in job [F4] through [▲]\[ ▼ ] and press [F4](OK) to select. E: Input the point through keyboard. E: Press [F3](Coord.), [F3] input point name, coordinate and press Input point name [F4](OK), will coordinate+ covered if the point [F4] name is repeated.
  • Page 147 Total Station Manual ⑥ Reference arc was defined, enter [Reference ARC-Main Page] interface； Press [F4] (DIST) into the [Measure Line&Offset] [F4] function; If it needs to define a RefArc press [F1] [F1](NewArc) to define. AZ1 and AZ2 are start point, end point tangent azimuth respectively . If the input ※...
  • Page 148 Total Station Manual  Measure Line&Offset Steps Display ○ Using method of "Centre, Start Point" or "Start&End Pt, Angle" defines the [F4] reference arc, entering [Reference ARC-Main Page], and press [F4] (Meas.) to Measure Line&Offset A: Get the target point by measure. ②...
  • Page 149 Total Station Manual press [F1](Find) [F1] check whether this point was existed, if [F4] not exist, then should firstly input measuring this point's coordinate. D: Select the point by list in the instrument. D: Press [F2](List) , in [Find Pt.] screen, [F2] search...

  • Page 150: Refsurface

    Total Station Manual arc ,∆Line will be negative, and on the contrary is positive; ∆Offset: the offset of the measuring point with respect to the arc in the direction of the radius. If the measuring point is in the circle, the ∆Offset will be positive, and on the contrary is negative.
  • Page 151 Total Station Manual P1 First point, origin of local coordinate system. P2 Second point
 P3 Third point
 P4 Measured point. This point is prob- ably not located on the plane. P5 Footprint point of the perpendicular vector from P4 to the defined plane. This point is definitely located on the defined plane.

  • Page 152: File Manage

    Total Station Manual 6. File manage File manager contains all functions of input data, edit data and view data. 1. Job  All kinds of measurement data are saved in the selected job. Such as Fix Pt., Meas. PT and so on. ...

  • Page 153: New A Job

    Total Station Manual ○ 2 The interface displays the job list in the current storage. ○ 3 Using the direction keys to [↑]、 select a job, when the needed job [↓] is selected, press the key of [F4], the program gives a prompt of [F4] “Job Set”...
  • Page 154 Total Station Manual ○ 3 If the instrument has loaded the SD card, there is an interface of Select Disk. In the interface, selecting the disk which is used to new a job by pressing the key of up or down and press [F4] to make sure.

  • Page 155: Delete A Job

    Total Station Manual 1.3 Delete a job Steps Display ○ 1 In the menu of Job Manager, [F1] press [F1] to enter the menu of job function. ○ The interface displays the job list in the current storage. ○ 3 Using the direction key up or down to select the job that need to be deleted.

  • Page 156: Search Fix Pt

    Total Station Manual Steps Display ○ In the menu of Job Manager, [F2] press [F2] to enter the interface of Fix Pt. function. ○ The interface displays the fixpoints of the current job. [F4] Pressing the direction key of left or right can scan all fixpoints in [F2] the job.

  • Page 157: Add Fix Pt

    Total Station Manual Steps Display ○ In the interface of View FixPoints, pressing [F1] (Find) to [F1] enter the function of finding fixpoints. ○ 2 There appears a dialog as shown [ENT] in the picture on the right. Input the name of point or the wildcard [F4] of “*”, press [ENT] to make sure and press [F4] (OK) to find.
  • Page 158 Total Station Manual ○ There appears a dialog as shown in the picture on the right. If want to back to the previous menu, you can press [F1] (Back). ○ Input the new name and coordinate of fixpoint, press [Ent] to finish inputting and press [F4] (OK) to save the fixpoint.

  • Page 159: Edit Fix Pt

    Total Station Manual 2.3 Edit Fix Pt. The function can edit the fixpoints in the memory. Steps Display ○ In the interface of View FixPoint, you can find the data of need to be edited by pressing the direction key of left or right or in the function of finding.

  • Page 160: Delete Fix Pt

    Total Station Manual 2.4 Delete Fix Pt. Delete the selected fixpoint from the job. Steps Display ○ In the interface of View FixPoint, you can find the data of need to be deleted by pressing the direction key of left or right or in the function of finding, then [F4] press [F4] to switch to the second...

  • Page 161: View The Measurement Data

    Total Station Manual 3.1 View the measurement data Steps Display ○ 1 In the menu of Job Manager, [F4 ] press [F3] to enter the function of Meas.PT. ○ 2 The default viewed job is the current job in the program, if want view [F2]...

  • Page 162: Delete Measurement Data

    Total Station Manual ○ 4 The screen starts to display the information of measurement data from the first piece of data in the job. Press the direction key of left or right can view the measurement point data which match the view [PAGE] condition one by one.

  • Page 163: Code

    Total Station Manual ○ 3 After the data is deleted, the [F4] screen displays the next piece of data. 4. Code. Here can make operations on the code library, such as new, finding and deleting. 4.1 Input Code Every code has a note and up to 8 characters attributes. GSI-The introduction of code’...

  • Page 164: View Code

    Total Station Manual ○ 2 In the interface of View Code, [F2] pressing [F2] to enter the function of new code. ○ 3 Input the name of code and the code information in the interface of Input code. ○ 4 After finishing inputting, press [F4] to save the code.
  • Page 165 Total Station Manual ○ 2 Press the direction key of left or right, you can view all codes one by one. ○ Press [F1] to enter the interface of Search Code. The default value is wildcard character, it stands for all codes. ○...

  • Page 166: Delete Code

    Total Station Manual 4.3 Delete Code Steps Display ○ 1 After entering the dialog of code function, press the direction key of left or right to delete the code which need to be deleted. You can also press the key of [Find] find corresponding code.

  • Page 167: Memory Statistics

    Total Station Manual 5. Memory Statistics Display the information of the memory usage and format the memory. Format the memory can delete all data of job, code and road. The setting of application also can be reset, please operate carefully. Steps Display ○...

  • Page 168: Data Transfer

    Total Station Manual 7. Data Transfer This function is doing data transmission between instrument and computer, or between instrument and removable device. This function includes 2 parts, import and export. The data transmission between instrument and removable device must have U Disk plugged in.
  • Page 169 Total Station Manual ○ 2 In “Import Data” menu, [F1] press [F1] or [1] entering “Import Fix Pt” window. ○ [F1] 3 Press [F1](Job) to select the job you want transfer data into, [F4] then press [F4] (OK). ○ choosing RS232C method, using cable to connect instrument and computer first,...

  • Page 170: Data Export

    Total Station Manual ○ 6 Import code can only use RS232C method. This is same [F4] ○ to Step 2. Data Export User can use this function to transfer internal data (fixed points, measurement data, and code) from instrument to computer or u disk. Export: Fixed points, measure data, and code.
  • Page 171 Total Station Manual ○ 2 In “Export Data” menu, [F1] press [F1] or [1] entering “Export job data” function. ○ [F1] 3 Press [F1] to select job that you need to export, [F4] then press [F4]. ○ [◄] 4 Press [◄], [►] key to select data type that you [►] want to export.
  • Page 172 Total Station Manual export data. CASS, GTS-7 for fixed points data; HTF, GSI for measure data. ○ 6 Export code can only use RS232C method. This is [F4] ○ same to Step -171 -...

  • Page 173: Instrument Setting

    Total Station Manual 8. Instrument Setting 1. General Setting In Setting Menu, choose “1 General” to enter “General Setting”. Fields of General Setting Field Description Light High, Medium, Low, Off. 4 Levels of background light. Contrast 1~9. Set the display contrast. Trigger Key Off: Disable trigger key.
  • Page 174 Total Station Manual Key Beep The beep is an acoustic signal after each key stroke. On: Enable beep. Off: Disable beep. Sector Beep On: Sector Beep sounds at right angles(0°, 90°, 180°, 270°or 0, 100, 200, 300 gon). Off: Sector Beep disabled. Tilt On: Biaxial compensation enable.
  • Page 175 Total Station Manual Positive above horizon, negative below horizon. Slope: Zenith 45°=100%; Horizon = 0%. Positive above horizon, negative below horizon. Exceed 300% shows “--.--%”. Angle Unit Sets The units shown for all angular fields. °′″Degree sexagesimal, 0°to 359°59'59". GON Gon, 0 gon to 399.999 gon. MIL Mil , 0 to 6399.99mil.
  • Page 176 Total Station Manual Mil :0.005 / 0.02 / 0.05 Dist. Unit Sets the units shown for all distance and coordinate related fields. Meter Meters [m]. US-ft US feet [ft]. INT-ft International feet[fi]. ft-in1/8 US feet-inch-1/8 inch [ft]. Dist. Decimal Sets the number of decimal places shown for all distance fields. This is for data display and does not apply to data export or storage.

  • Page 177: Edm Setting

    Total Station Manual Port RS232C Use serial port as communication interface. Bluetooth Use Bluetooth as communication interface. If instrument does not support Bluetooth, there will be no Bluetooth option here. Baudrate Sets the serial port baudrate. 9600/19200/115200 Coord. type Sets the type of coord. NEZ/ENZ Language Changes the software’s interface language.

  • Page 178: Adjust And Tools

    Total Station Manual 9. Adjust and Tools 1. Adjust Warning： The following functions must be carried out under the guidance of professionals, if the operation is wrong, it may lead to the instrument can’t work properly! Through Main Menu → “6 Tools” → “1 Adjust”, entering adjust menu, Like below: Input PIN code(82543), and then press key ENT, the instrument will be turned off.

  • Page 179: View Adjust Parameters

    Total Station Manual 1.1 View adjust parameters In Tools Menu, choose “1 Adjust”, and then press [F1] to enter “View adjust parameters”. Parameters include Vert. I.E and tilt sensor parameters. -178 -...

  • Page 180: Adjust Index Error

    Total Station Manual 1.2 Adjust Index Error In Tools Menu, choose “1 Adjust”, then press [F2] to enter “Adjust Index Error”. Steps: Steps Display ○ 1 After leveling the total [F4] station, aim at target with face left, then press [F4](OK). ○...
  • Page 181 Total Station Manual This will help screw A to adjust the inclination of the instrument. In Tools Menu, choose “1 Adjust”, and then press [F3] to enter “Adjust Tilt X”. These are the calibration of x-direction of compensator’s vertical axis. Steps Display ○...

  • Page 182: Adjust Tilt Y

    Total Station Manual ○ 5 Use fine tuning to set the vertical angle as V1+3’, focus reticle center [F4] accurately, wait for stable value, press [F4](OK). ○ 6 After finishing, it will display the results, press [F4](OK), save and back to [F4] menu.
  • Page 183 Total Station Manual ○ 2 Use fine tuning to set the vertical angle to V0-3’, focus reticle center accurately, then turn the [F4] instrument counterclockwise 90 °, wait for stable value, press [F4] (OK) ,and then turn 90 ° clockwise back to the original direction.

  • Page 184: Adjust Tilt Zero

    Total Station Manual ○ After finishing, it will display the results, press [F4](OK), save and back to [F4] menu. Note: CoK (linear coefficient): If absolute value > 1.5, you need to re-calibrate; In the correction process by pressing the ESC key, will exit, holding compensator parameters unchanged.

  • Page 185: Instrument Constant Setting

    Total Station Manual ○ 3 Program will show the [F4] result value, press [F4](OK) to save. Note: If there is no special requirement, the compensator should be turned on before Index error correction. 1.6 Instrument constant setting In Tools Menu, choose “1 Adjust”, and then press [F4] to enter “Const. Setting”. Press [F4](OK) to save after editing the constants.

  • Page 186: System Information

    Total Station Manual 2. System information 2.1 View System Information In Tools Menu, choose “2 Info.” to enter “Info”. In this window, user can view detail information about the instrument, includes instrument type and SN, firmware version and date time. System Information 2.2 Set System Date In system information window, press [F1] (Date) to enter “Date Setting”...

  • Page 187: Firmware Upgrade

    Total Station Manual For example: To set time“13:58:30”, input string “135830”, then press [F4] (OK) to save. Time Setting 2.4 Firmware Upgrade Warning： The following functions must be carried out under the guidance of professionals, if the operation is wrong, it may lead to the instrument can’t work properly! This function is prepared for the users to upgrade the instrument software.
  • Page 188 Total Station Manual 3. Press the power key of the instrument in Hyper Terminal , shown as follows: Note: Software upgrade operation must be careful once you select the instrument into the upgrade status; if press "3" in the picture below, you can also resume running the previous program.
  • Page 189 Total Station Manual 5. Select the new edition total station software, click on "send" button. 6. It will display the sending application process, and then close the super terminal, starting up after removing the instrument battery and then putting in again. The current software is the new version updated previously.

  • Page 190: Checkout And Calibration

    Total Station Manual 3. Checkout and calibration The instrument at the factory has to undergo a rigorous inspection and correction, meeting the quality requirements. However, after long transport or environmental change, its internal structure will be some impact. Therefore, the new purchased instruments should be checked and calibrated before surveying to ensure the precision.

  • Page 191: Telescope Reticle

    Total Station Manual Calibration  If the bubbles is not in the center, use the correction needle or six angle wrench to adjust the correction screw which under the bubble to make the buble to the center. For calibration, you shall first loosen the calibration screw (1 or 2) which opposite to the direction of the bubble offset, then tighten the other correction screw in the offset direction to make the bubble in the center.

  • Page 192: The Verticality Of Collimation Axis And Horizontal Axis(2C)

    Total Station Manual 3.4 The verticality of collimation axis and horizontal axis(2C) Checkout  1. Set a target A in about 100m away, and make sure the vertical angle of the target is within ± 3 °. Precisely level the instrument and switch on it. 2.

  • Page 193: Vertical Plate Index Zero Automatic Compensation

    Total Station Manual Notice: Check the photoelectric coaxiality after calibrating. 3.5 Vertical plate index zero automatic compensation Checkout  1. Set up and level the instrument, make the direction of the telescope consistent with the line between the center of the instrument and any of the foot screw. 2.

  • Page 194: Plummet

    Total Station Manual 2. Turn the telescope to aim A and get the reading R for face right. 3. If the vertical zenith angle is 0 °, then i = (L + R-360 °) / 2, if the vertical Angle level is 0.
  • Page 195 Total Station Manual 5. Repeat Step 4, check and calibrate until it meet the requirements. 6. With the laser plummet, unbolt the laser cover, using 1 # hex wrench to adjust the three screws, fasten one side and loosen the other side, and adjust the laser flare to point O.

  • Page 196: Instrument Additive Constant (K)

    Total Station Manual 3.8 Instrument additive constant (K) The instrument constant is inspected when it out, and correct it inside the machine, make K = 0. Instrument constant change rarely, but we suggest that check it this way for one or two times each year. The checkout should be done in the standard baseline, or you can take the following simple method.

  • Page 197: No Prism Ranging

    Total Station Manual 2. Focus on the reflecting prism center with telescope crosshair accurately. 3. Open EDM signal, observe maximum value of the signal, and find the center of the launch axis. 4. Check whether the telescope crosshair center coincide with the emission photoelectricity axis center, if they coincide on the whole we can say it qualified.

  • Page 198: Technical Parameters

    Total Station Manual Technical parameters Configuration Function Unit SLT2 Imaging — Erect Magnification × Telescope Field of view — 1 ゜ 20′ Min.target distance Effective aperture 40/50(EDM) 2C index error (″) Angle Angle i index error (″) measurement Angle measurement method —...
  • Page 199 Total Station Manual Illumination — Support Wavelength 635nm Maximum output Laser Plumb Laser (optional) Laser Plumb — power (adjustable): not less than 0.4 m W, not more than 1.0 m W （ ″ ） /2 Tubular level Level Round level （′）...

  • Page 200: Attachment B File Format Introduction

    Total Station Manual Attachment B File format introduction These following example to instruct exported file format: STAST001,1.205,AD 100.000,100.000,10.000 BS001,45.2526,50.0000 BS001,1.800 HVD98.2354,90.2314,10.235 A1,1.800,CODE1 104.662,99.567,10.214 A2,1.800,CODE1 78.3628,92.4612,4.751 A3,1.800,CODE1 63.2349,89.2547 NOTE this note The first record consists of two lines: The information of first line: record type, name, elevation, code Such as: refers to test site refers to back sight Angle data...

Table of Contents

Save PDF
