CAUTION: If either the processor or the heat sink is replaced, use the thermal grease that is provided in the kit to ensure
that thermal conductivity is achieved.
Steps

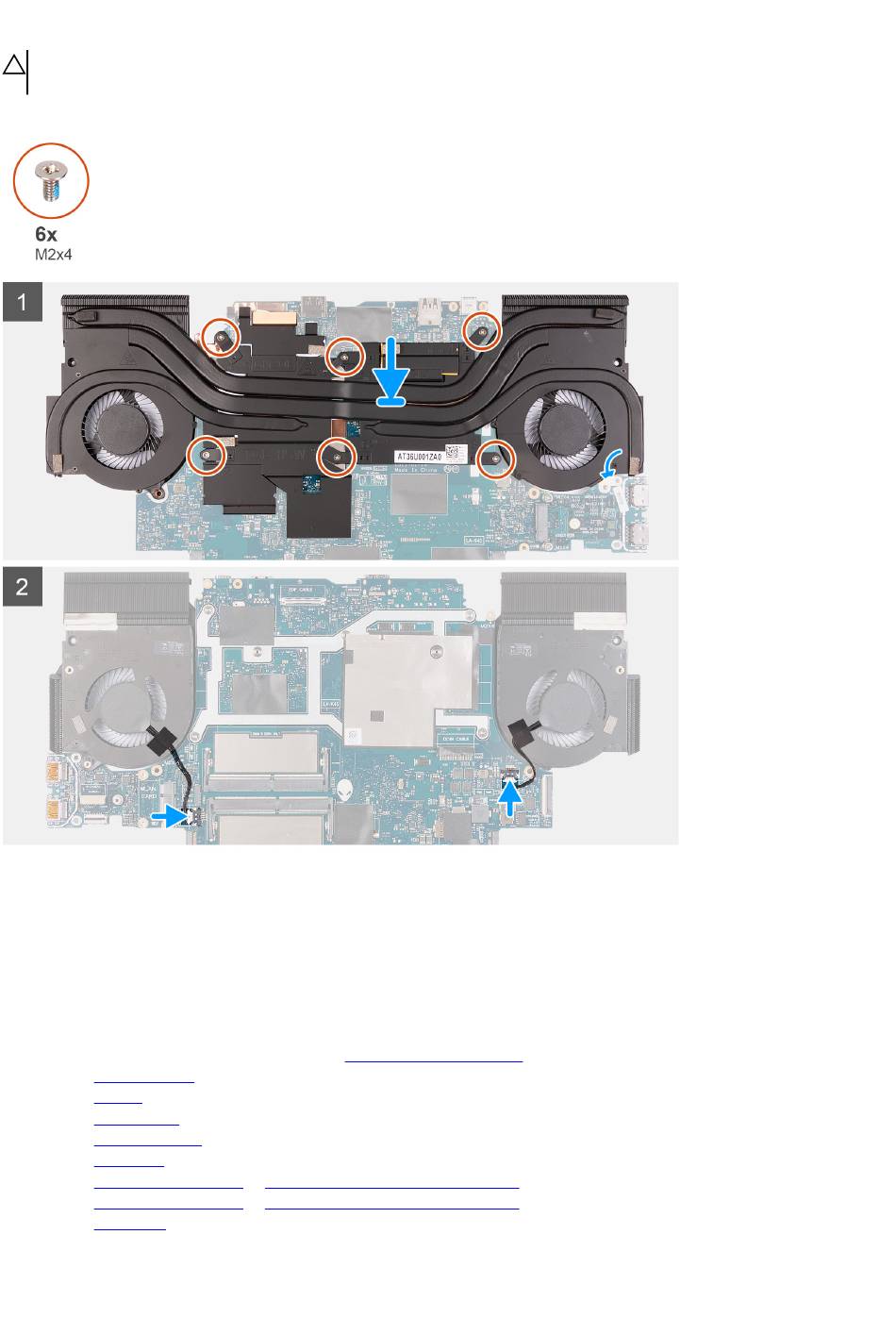

1. Place the heat-sink assembly on the system board.
2. Align the screw holes on the heat-sink assembly with the screw holes on the system board.
3. Replace the six screws (M2x4) that secure the heat-sink assembly to the system board.
4. Turn the system board over, and connect the left and right fan cables.
Next steps
1. Follow the procedure from step 4 to step 20 in
2. Install the
rear
I/O-cover.
3. Install the battery.
4. Install the
wireless
card.
5. Install the
memory
module.
6. Install the
I/O
board.
7. Install the
2230 solid-state drive
8. Install the
2230 solid-state drive
9. Install the
base
cover.
Installing the system
or
2280 solid-state drive in SSD slot
or
2280 solid-state drive in SSD slot
board.
one, whichever applicable.
two, whichever applicable.
67
