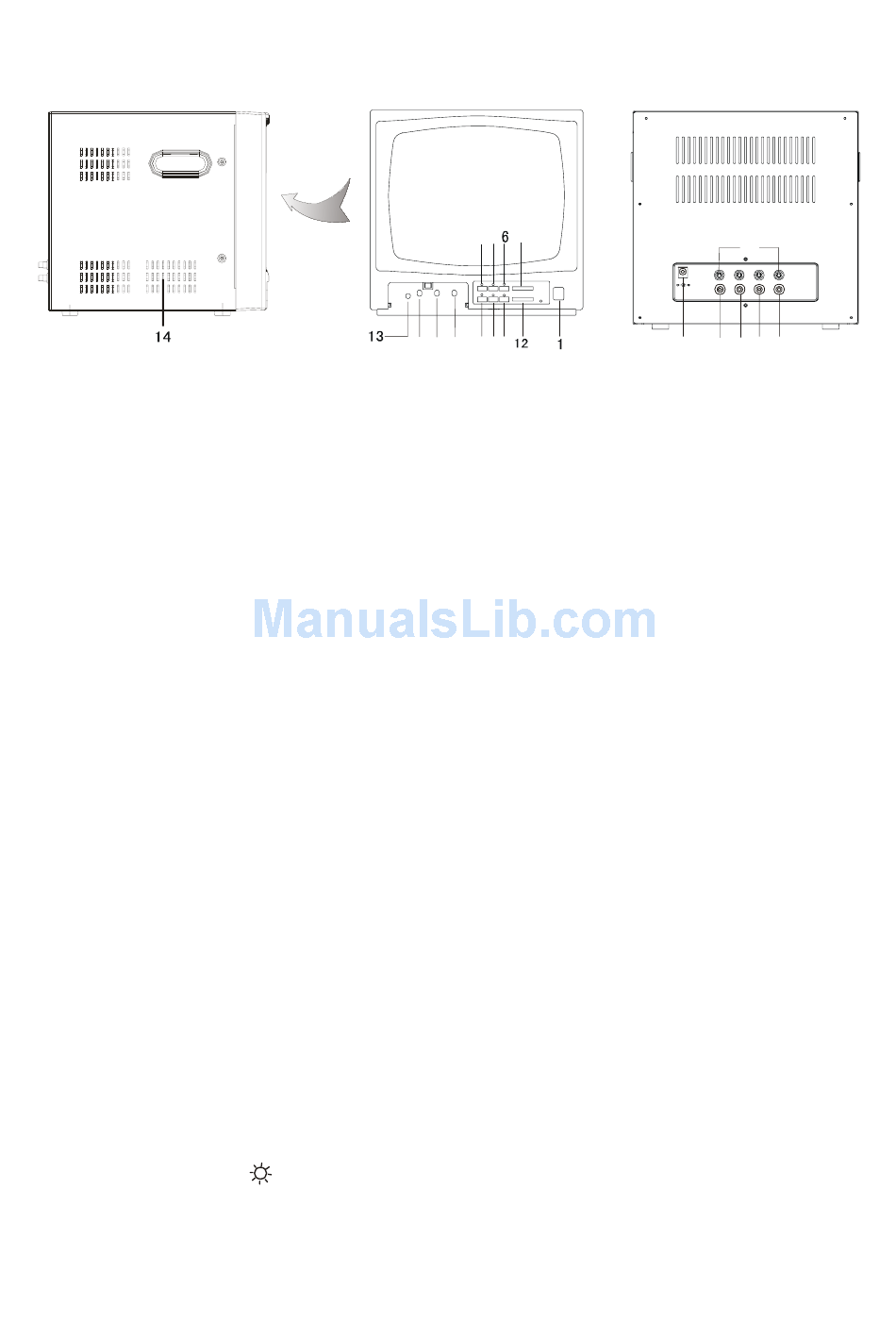

MONITOR
1. POWER
ON/OFF switch. If you press this switch, the monitor is turned on and the LED of power indicator is lit.
2. CH1 button
Pressing this button enables the conversion to CAMERA 1 in MANUAL mode and the corresponding
LED is lit.
3. CH2 button
Pressing this button enables the conversion to CAMERA 2 in MANUAL mode and the
LED is lit.
4. CH3 button
Pressing this button enables the conversion to CAMERA 3 in MANUAL
mode and the corresponding LED is lit.
5. CH4 button
Pressing this button enables the conversion to CAMERA 4 in MANUAL
mode and the corresponding LED is lit.
6. AUTO button
When pressing this button, the unit is in auto mode and the corresponding
LED is lit.
7. VCR button
Pressing this button, sets the unit in play back mode and the corresponding LED is lit.
8. Brightness control (
Adjusts the picture brightness. Turn this control clockwise to increase the brightness, and turn it
counterclockwise to reduce the brightness.
10 8 9
)
2
3 11
4
5 7
15
DC-IN
CH1
CH2
CH3
CH4
AUDIO-IN
VIDEO- IN
A UDIO OUT
20
16
17 18
19
corresponding
Advertisement
Table of Contents
Related Manuals for Clover OW1405
Summary of Contents for Clover OW1405
- Page 1 MONITOR 1. POWER ON/OFF switch. If you press this switch, the monitor is turned on and the LED of power indicator is lit. 2. CH1 button Pressing this button enables the conversion to CAMERA 1 in MANUAL mode and the corresponding LED is lit.
-
Page 2: Audio Out
9. Contrast control ( Adjusts the picture contrast. Turn this control clockwise to increase the contrast, and turn it counterclockwise to reduce the contrast. 10. Vertical Hold control ( This control is used to lock the vertical position of the picture. 11.Auto dwell time control ( Adjusts the auto dwell time. -
Page 3: Video Out
19. VIDEO OUT This is connector for outputting selected image signals. 20. DC inlet socket Plug the DC plug of the power adapter (supplied as a standard accessory) into this socket and connect it to an AC outlet. CAMERA Lens Turn it clockwise or counter-clockwise to get the best picture. - Page 4 C-mic High sensitivity condenser microphone. 4-pin Din jack Connect the one end of cable to this jack. Tripod screws There are two tripod screws on the top and bottom of the camera (Refer to installation). INSTALLATION Attach the mounting bracket to the wall or ceiling, wherever you want to install the camera.
- Page 5 CEILING MOUNTING (MONITOR) BRACKET 60’ cable (CAMERA) Ceiling Mount...
