Cleveland SteamCub 1SCEMCS Specifications

™
Cleveland

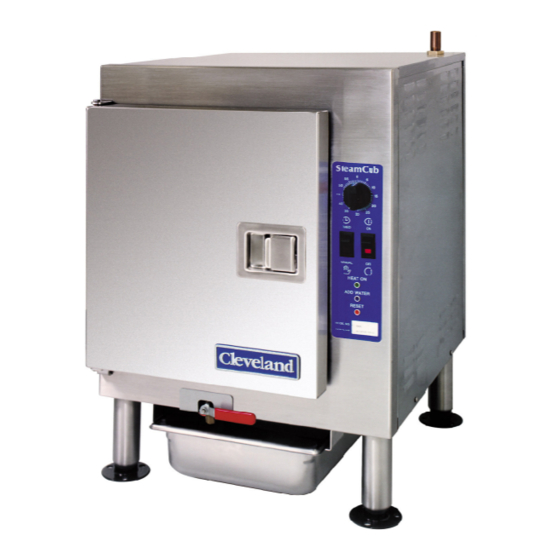

STEAMCUB™ BOILERLESS
CONNECTIONLESS STEAMER
TM
SteamCub
PRESSURELESS STEAM COOKER,
RETHERMALIZER & HOLDING CABINET
Cleveland Standard Features
I
Boilerless Pressureless Steam Cooker and Rethermalizer.
I
Capacity: Full Size Steam Table Pans:
• Five: 2 1/2" x 12" x 20" (1/1 GN, 65mm)
• Ten: 1" x 12" x 20" (1/1GN, 40mm)
I
Easy installation, no drain line, water connections or hood is
needed.*
I
60 Mechanical Timer with ON/OFF Main Power Switch with
a Heat On, Low Water Indicator Lights and High
Temperature Safety Light and Shut-off (Reset Light).
I
6" (152mm) Skid Resistant Stainless Steel Adjustable Legs
with Flanged Feet.
I
8 gauge stainless steel inner cooking compartment, 14
gauge stainless steel outer compartment with two piece
compartment door for an airtight, leak-proof seal.
I
Reversible Door Gasket.
I
9 kW total output, with easy to remove 1 kW heating
elements (9 each) cast into aluminum bocks.
I
Electronic Low-Water Shut-Off Safety Indicator with audible
alarm, High Temperature Safety Shut-Off and LED "Heat
On" Indicator Light.
I
Separate Power ON/OFF Control includes an Automatic
Pre-Heat when power is turned "ON".
I
Easy-Access Manual Drain Valve located in front, Pan Slide
Guides located under unit to fit 12" x 20" (1/1GN) Pans.
Includes one 4" x 12" x 20" stainless steel pan
(1/1GN-102mm).
I
Approvals: cUL, NSF #4.
Options & Accessories
Ë Equipment Stand Model UniStand34.
Ë POSK Pull-Out Shelf Kit for UniStands (P/N 111724)
Ë URK Pan Rack Kit UniStands (P/N 111726)
Ë Optional Voltages, 480 Volt (VOS2).
Ë 6 kW total Output Six - 1 kW heating elements.
Ë Single Phase Operation.
*
Consult local authorities for venting requirements
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODEL: 1SCEMCS
Short Form Specifications
Shall be a Cleveland SteamCub™, Model 1SCEMCS, one compartment
steamer. 60-minute mechanical timer with a low water indicator and alarm. a
heat-on indicator light. 9 kW power rating. Capacity for five 2 1/2" deep full
size steam table pans. 8 gauge stainless steel inner cooking compartment,
14 gauge stainless steel outer compartment with two piece compartment
door.
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
I
SECT. PAGE
0707
1
