2010-2-PAK-RM Panel Activation Key
Registration Guide
EN CS DA DE ES
FI
EN: Registration Guide
Description

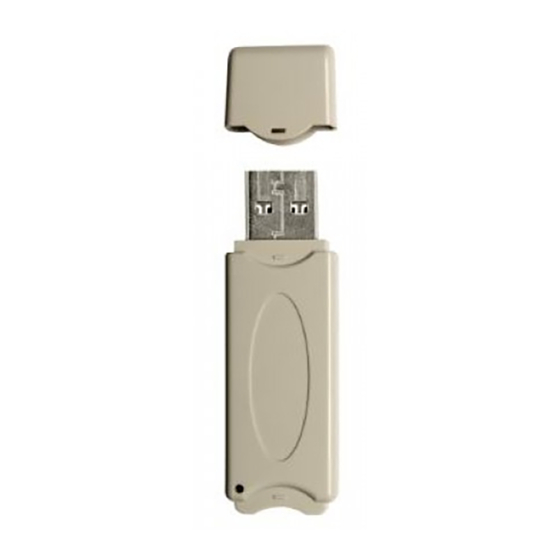

The 2010-2-PAK-RM Panel Activation Key (PAK) enables
additional protocols on compatible addressable control panels.
The available PAKs and protocols (with control panel firmware
requirements) are shown below.
Model
Description
2010-2-PAK-RMOH
Enables Contact ID
2010-2-PAK-RMBN
Enables BACnet ®
2010-2-PAK-RMMB
Enables Modbus ®
Note:
A new PAK is only required for the gateway panel
configured to monitor the fire system.
Registration
Follow these steps to register or unregister the PAK. Installer
level access is required.
To register the PAK:
1.
Insert the PAK into either of the USB type A slots on the
control panel main board (see figure).
© 2015 UTC Fire & Security. All rights reserved.
FR HU
IT
NL NO PL PT RO RU SK SV TR
Firmware
3.1 or later
3.5 or later
3.5 or later
2.
On the control panel LCD, select Panel Setup, and then
select Panel Activ. Key.
The LCD displays two options: Register New PAK and
Unregister PAK.
3.
Select Register New PAK. The PAK information is
displayed on the LCD. Confirm that the details are correct
and press Continue.
The PAK information includes: The PAK type, the PAK
serial number, and the host control panel serial number
(added when registration is complete).
4.
Press Register, and then press Yes to confirm the
registration.
5.
Press Apply to apply the registration details to the panel,
or Continue to register more PAKs for the same control
panel.
6.
Remove the PAK from the USB slot.
The selected protocol is now enabled at the control panel. See
your installation manual for any additional configuration
requirements.
To unregister the PAK:
1.
Insert the PAK into either of the USB type A slots on the
control panel main board (see figure).
2.
On the control panel LCD, select Panel Setup, and then
select Panel Activ. Key.
3.
Select Unregister PAK and follow the on-screen
instructions.
4.
Remove the PAK from the USB slot.
The selected protocol is now disabled at the control panel.
Specifications
Connector type
Operating environment
Operating temperature
Storage temperature
Relative humidity
Weight
Dimensions (W × H × D)
1 / 16
USB type A
−5 to +40 °C
−20 to +50 °C
10 to 95% (noncondensing)
14 g
71 × 23 × 8.7 mm
P/N 00-3243-501-3000-01 • ISS 20FEB15
