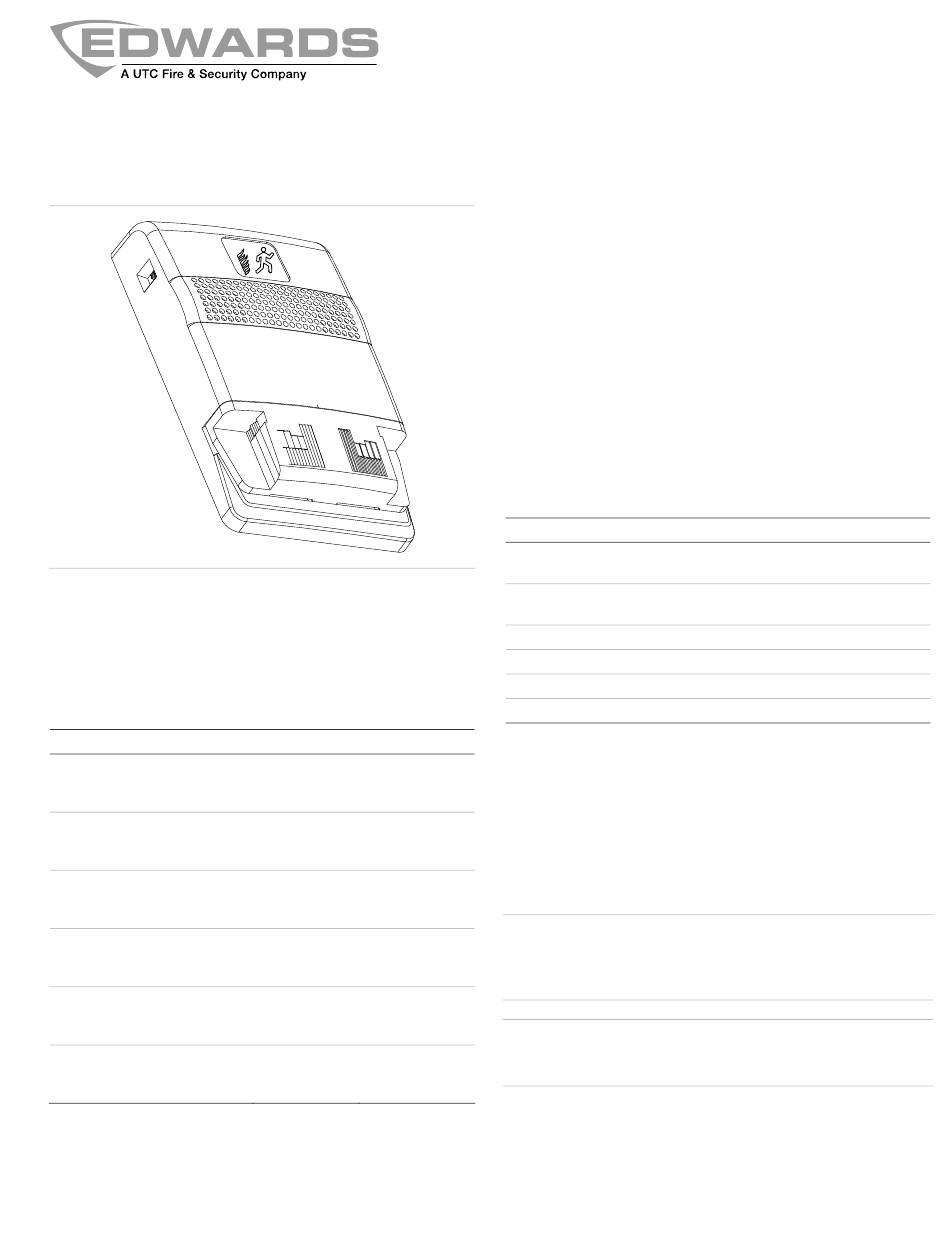

Genesis Chime-Strobe Installation Sheet

Description

The Genesis Chime-Strobe is a fire alarm notification
appliance designed for indoor ceilings and walls. See Table 1
for a list of model numbers.
Table 1: Models
Description
Chime-strobe, 15 to 110 multi-
cd, white
Chime-strobe, 15 to 110 multi-
cd, white, with FIRE marking
Chime-strobe, 15 to 110 multi-
cd, red
Chime-strobe, 15 to 110 multi-
cd, red, with FIRE marking
Trim plate, white
Trim plate, red
© 2010 UTC Fire & Security. All rights reserved.
Numbers
ADTG1-CVM MG1-CVM
EG1-CVM XLSG1-CVM
G1-CVM ZG1-CVM
ADTG1F-CVM MG1F-CVM
EG1F-CVM XLSG1F-CVM
G1F-CVM ZG1F-CVM
ADTG1R-CVM MG1R-CVM
EG1R-CVM XLSG1R-CVM
G1R-CVM ZG1R-CVM
ADTG1RF-CVM MG1RF-CVM
EG1RF-CVM XLSG1RF-CVM
G1RF-CVM ZG1RF-CVM
ADTG1T MG1T
EG1T XLSG1T
G1T ZG1T
ADTG1RT MG1RT
EG1RT XLSG1RT
G1RT ZG1RT
There are field-configurable options for selecting dB output,
chime signal, and constant noncoded voltage or single-stroke
coded voltage operation. See Figure 1.
Note:
A Genesis Signal Master is required when chimes are
configured for coded operation.
The strobe includes a field-configurable switch for selecting the
desired candela output. The candela output setting is locked in
place and remains visible after final installation.
This strobe features an enhanced synchronization circuit to
comply with the latest requirements of UL 1971 Signaling
Devices for the Hearing Impaired. Synchronized operation
requires a separately installed synchronization control module.
See Table 2 for a list of compatible synchronization modules.
Table 2: Compatible synchronization module models [1]
Description
Genesis Signal Master
Snap-on Mount
Genesis Signal Master -
Remote Mount
Auto-Sync Output Module
Dual Input Signal Module
Auxiliary Power Supply
Power Supply
[1] Synchronization module requirements are determined by the
application.

Installation

Install this device in accordance with applicable requirements
in the latest editions of the NFPA codes and standards, and in
accordance with the local authorities having jurisdiction.
WARNING:
Electrocution hazard. To avoid personal injury or
death from electrocution, remove all sources of power and
allow stored energy to discharge before installing or removing
equipment.
Caution:
Electrical supervision requires the wire run to be
broken at each terminal. Do not loop the signaling circuit field
wires around the terminals.
To install the chime-strobe:
1. Remove the cover by depressing both tabs on the top of
the unit with a small screwdriver and twisting slightly.
1 / 4
Number
EG1M MG1M
ADTG1M XLSG1M
EG1M-RM MG1M-RM
SIGA-CC1S SIGA-MCC1S
SIGA-CC2A SIGA-MCC2 A
APS6A APS10A
BPS6A BPS10A
P/N 3100562 • REV 2.0 • ISS 19AUG10
G1M
ZG1M
G1M-RM
