Vacuum pump type desoldering tool with excellent thermal recovery
•
Digital display ensures easy and reliable temperature control
•
Sleep Function that works with iron holder curbs the oxidation of nozzles
•
Supports the
Model No.
Power consumption 120W
Temperature range 200-450ºC
Temperature stability ±5ºC at idle temperature
・Station
Output voltage
Vacuum generator Double cylinder type
Vacuum pressure 80kPa (600mmHg)
Suction flow
Dimensions
Weight
・Soldering Iron
Power consumption
Temperature range
Nozzle to ground resistance <2
Tip to ground potential
Total length
Weight
Cord
N
system.
2
FM204
24V
15L/min.
160(W)×120(H)×225(D)mm
3.7kg
70W (24V)
350-450ºC
<2mV
180mm (with Φ1.0mm nozzle)
65g (with Φ1.0mm nozzle)
1.2m
Desoldering / Rework/Desoldering tool
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hakko Electronics Fm-204
Summary of Contents for Hakko Electronics Fm-204

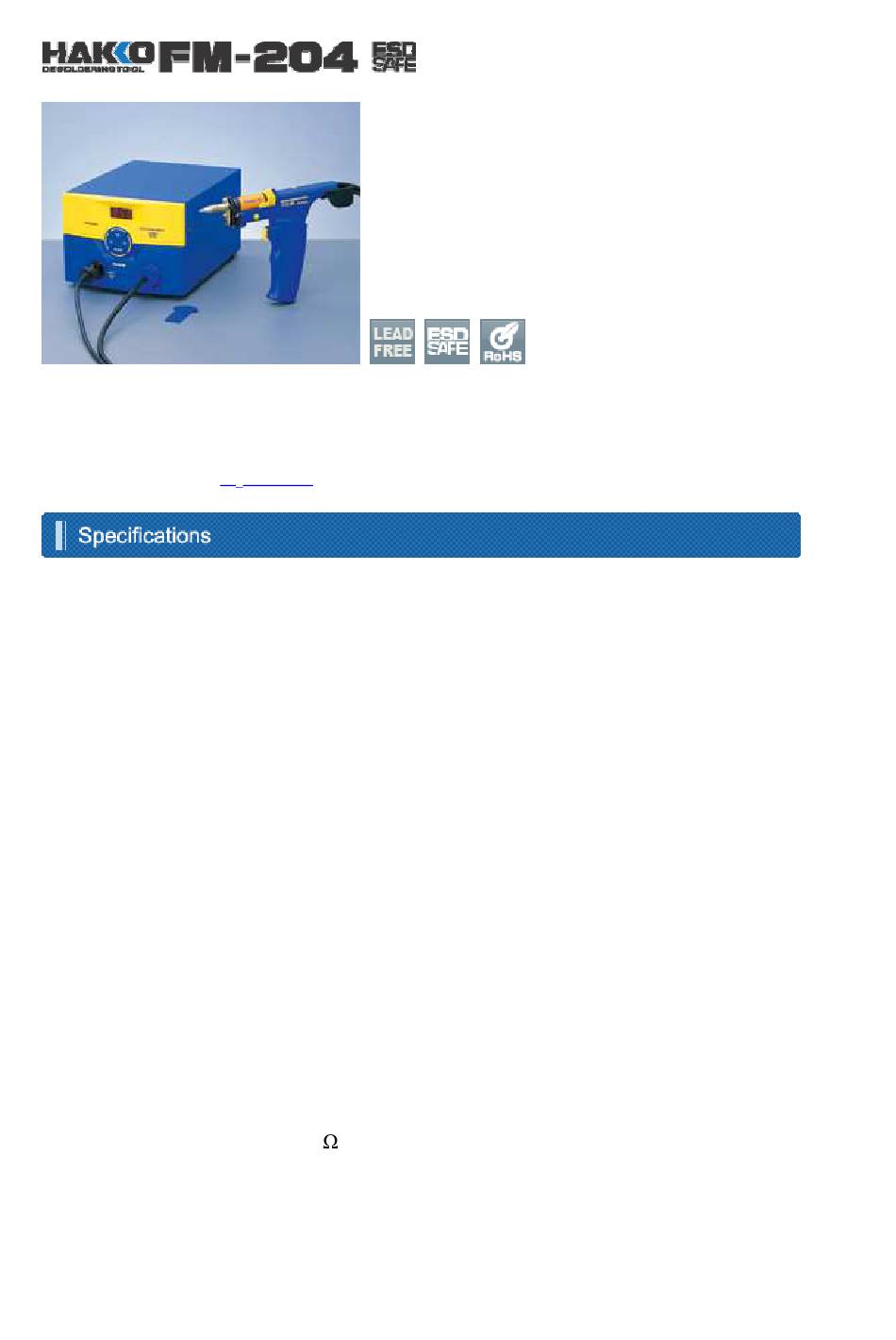

- Page 1 Desoldering / Rework/Desoldering tool • Vacuum pump type desoldering tool with excellent thermal recovery • Digital display ensures easy and reliable temperature control • Sleep function that works with iron holder curbs the oxidation of nozzles • Supports the system. Model No.

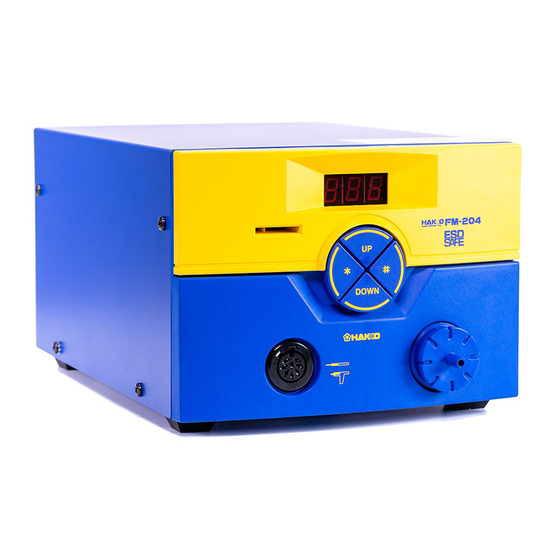

- Page 2 * Total length and weight (w/o cord, hose) Model No. Packing List FM-204 1. Main unit (HAKKO FM-204 station) 2. Iron holder (No. FH200-05; with tip cleaner) 3. Ceramic paper filter (10pcs.) (for replacement) 4. Cleaning drill (for heating element) 5.
- Page 3 Soldering work is possible by replacing the handpiece. Connectible handpieces: - Desoldering handpiece (HAKKO FM-2024) - Soldering iron (HAKKO FM-2027) soldering iron (HAKKO FM-2026) Selectable grip Two-way use of gun type and straight type is available. Gun configuration Straight configuration Easy maintenance Filter pipe replacement: - Disposable paper filter pipe...
- Page 4 Power save function Sleep function: When the handpiece is placed on the Iron Holder (FH200-01/FH200-02), the sleep function operates and decreases the unused tip temperature up to approximately 200°C , preventing the tip from being oxidized. In addition, this function can relieve the loads applied to the tip due to the high- temperature settings required for lead-free soldering * The connecting cable enables the iron holder and temperature controller to be activated.
- Page 5 Part No. Name Specifications B2972 Control card B2876 Nozzle remover FH200-05 Iron holder w/ power-save function A1514 Ceramic paper filter set of 10 A1511 Filter pipe assembly set of 10 B3253 Connecting cable FM2024-02 Desoldering tool FM-2024 70W (24V) B2873 Cleaning drill heating element B2872...
- Page 6 Part No. Name Specifications B2874 Cleaning pin nozzle Φ0.6mm B1086 Cleaning pin nozzle Φ0.8mm B1087 Cleaning pin nozzle Φ1.0mm B1088 Cleaning pin nozzle Φ1.3mm B1089 Cleaning pin nozzle Φ1.6mm B2875 Cleaning pin nozzle Φ2.0mm / 2.3mm 599B-01 HAKKO 599B tip cleaner FM2027-04 HAKKO FM-2027 conversion kit 70W (24V) FM2026-05 HAKKO FM-2026 conversion kit 70W (24V)
