2

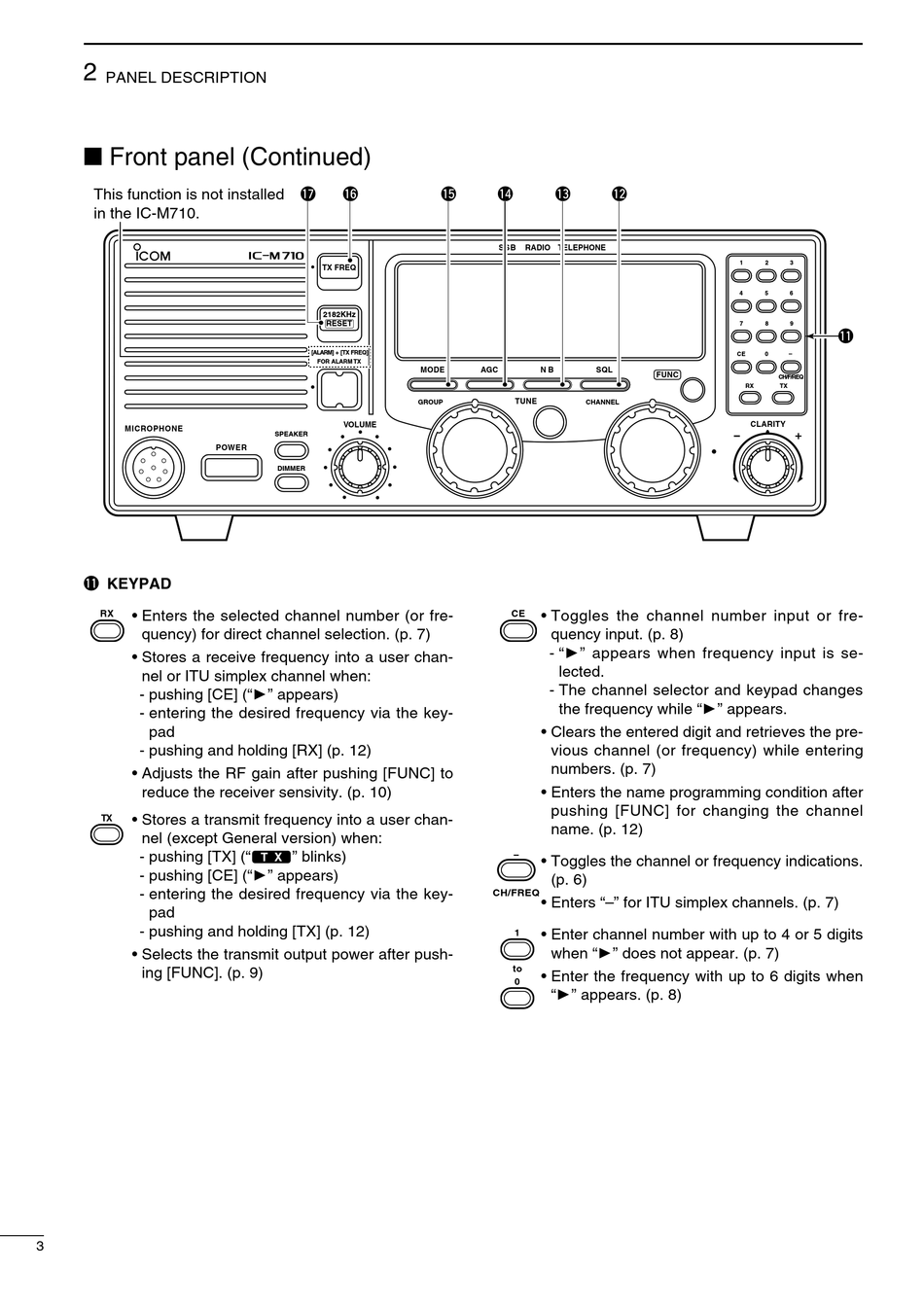

PANEL DESCRIPTION
■ Front panel (Continued)
This function is not installed
in the IC-M710.
MICROPHONE
!1 KEYPAD
• Enters the selected channel number (or fre-
RX
quency) for direct channel selection. (p. 7)
• Stores a receive frequency into a user chan-
nel or ITU simplex channel when:
- pushing [CE] ("►" appears)
- entering the desired frequency via the key-
pad
- pushing and holding [RX] (p. 12)
• Adjusts the RF gain after pushing [FUNC] to
reduce the receiver sensivity. (p. 10)
• Stores a transmit frequency into a user chan-
TX
nel (except General version) when:
- pushing [TX] ("$" blinks)
- pushing [CE] ("►" appears)
- entering the desired frequency via the key-
pad
- pushing and holding [TX] (p. 12)
• Selects the transmit output power after push-
ing [FUNC]. (p. 9)
3
!7 !6
iM 710
TX FREQ
2182KHz
RESET
[ALARM] + [TX FREQ]
FOR ALARM TX
VOLUME
SPEAKER
POWER
DIMMER
q
w
e r
!5 !4 !3
SSB RADIO TELEPHONE
MODE AGC N B
TUNE
GROUP CHANNEL
• Toggles the channel number input or fre-
CE
quency input. (p. 8)
- "►" appears when frequency input is se-
lected.
- The channel selector and keypad changes
the frequency while "►" appears.
• Clears the entered digit and retrieves the pre-
vious channel (or frequency) while entering
numbers. (p. 7)
• Enters the name programming condition after
pushing [FUNC] for changing the channel
name. (p. 12)
−
• Toggles the channel or frequency indications.
(p. 6)
CH/FREQ
• Enters "–" for ITU simplex channels. (p. 7)
• Enter channel number with up to 4 or 5 digits
1
when "►" does not appear. (p. 7)
to
• Enter the frequency with up to 6 digits when
0
"►" appears. (p. 8)
t
u
y
!2
1 2
4 5
7 8
CE 0
SQL
FUNC
RX
CLARITY
i
o
3
6
9
!1
–
CH/F/REQ
TX
!0
