Atek AWP 110 Series User Manual

• The installation of the product is carried out by the customer who purchases the product, according to the wiring diagrams,
installation information, etc. in this manual.
• Maintenance and repair should be done by the technicians authorized by the manufacturer firm.
• There must be minimum distance between the sensor and control unit. Avoid additions except the suitable connector unless it
needs.
• Keep away the sensor cable from as high power energy cables, contactor, motor, switched power supplies, inductive and capacitive
noisy supplies.
• Shielding edge of the sensor cable must be ground connected.
• Not to damage the sensor, supply directions and voltage must be paid attention. Don't energize before all connections completed.
• Transport and storage should be at their original packaging and an ambient temperature of -25°C / + 85°C in such a way that they
will not be exposed to dust, humudity, impact, vibration, falling or water.
• Chemicals such as alcohol, thinner etc. should not be used for cleaning the product. The product should be wiped with a damp
cloth.
• The product may be damaged and may become unusable if used outside of the specifications in the user manual.
• The product will be out of warranty if used outside of the specifications in the user manual and opened or repaired other
than authorized services.
•
Never make or undo electrical connections to the sensor when voltage is applied, otherwise this may result in damage to
devices.
4-20 mA Connection
Signal Cable Color
Earth Silver
+V Red
-
4-20 mA Yellow
-
0-10V or POTENTIOMETER Connection
Signal Cable Color
Earth Silver
+V Red
0V Black
0-10V / Pot Yellow
-
KK-AWP.001 23.06.21 Rev No:3

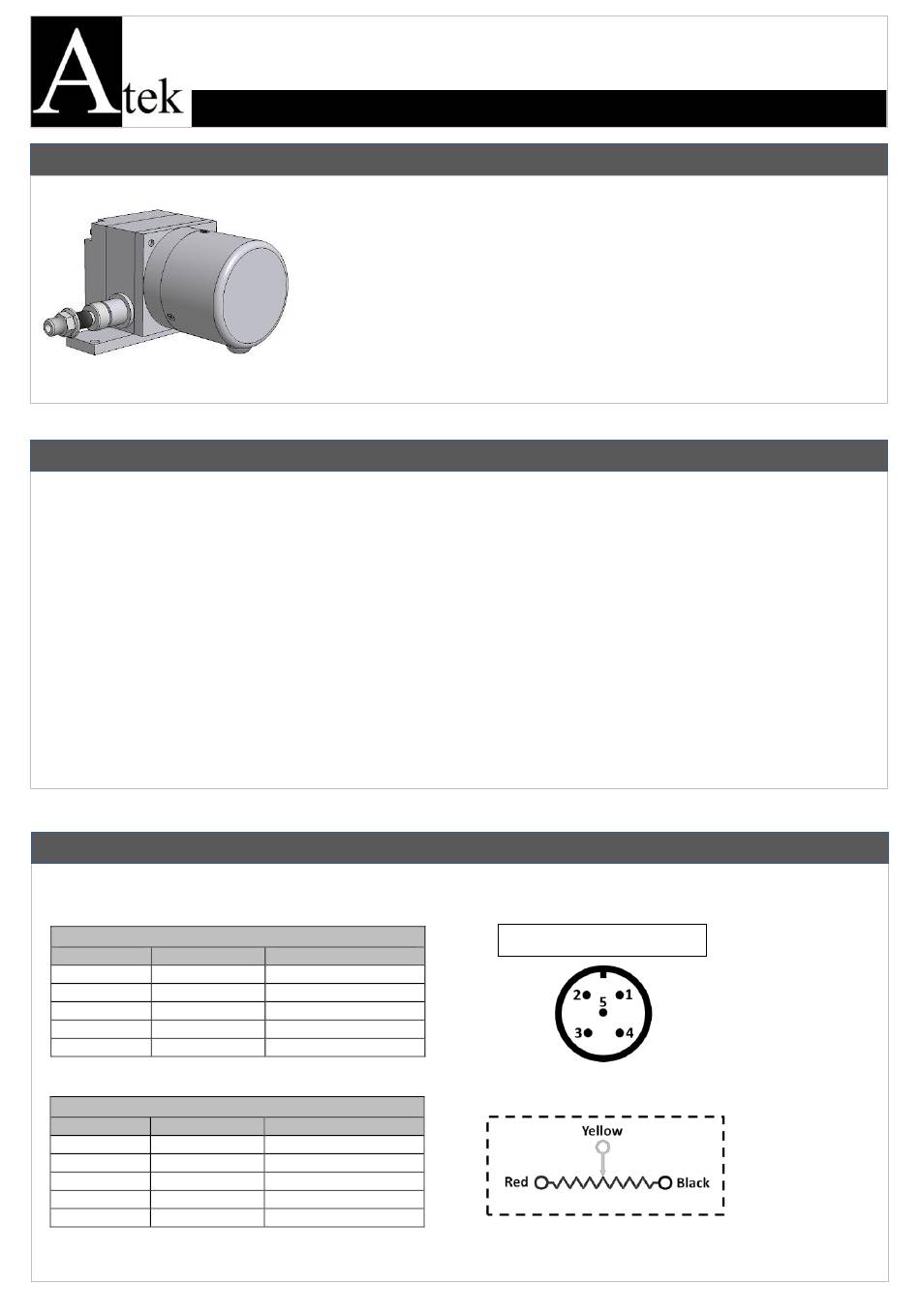

DRAW WIRE SENSOR USER MANUAL

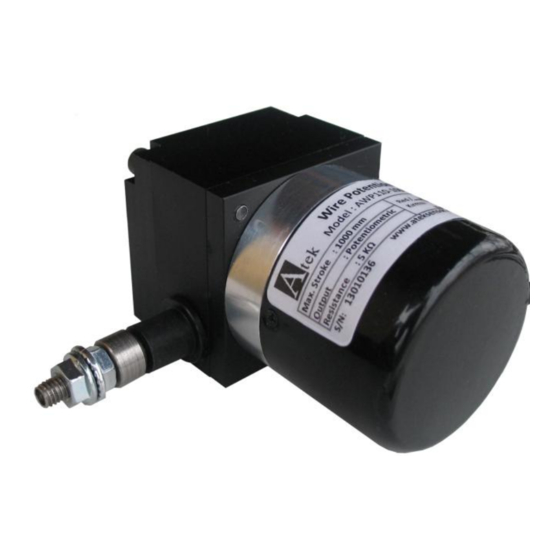

AWP 110 series draw wire sensors; consists of a rotary potentiometer which is
controled by stainless steel wire. They make measurement by pulling and rewinding
stainless steel wire.
Different measuring lengths from 200 mm to 1200 mm are available. They converts
linear motion to potentiometric output.
The "A" series, works with 24VDC supply and gives of 4-20 mA analog output with the
help of the converter card.
The "V" series, works with 24VDC supply and gives of 0-10 VDC analog output with the
help of the converter card.
Optionally, different non-standard measuring lengths, cable length or socket model
can be requested.

ELECTRICAL CONNECTIONS

M12 5 pin male socket
Pin 1
Pin 2
- Pin 3
Pin 4
- Pin 5
M12 5 pin male socket
Pin 1
Pin 2
Pin 3
Pin 4
- Pin 5

GENERAL INFORMATION

WARNINGS

M12 5 Pin Male Socket
AWP 110
