Atek INC 210 Series User Manual

 The installation of the product is carried out by the customer who purchases the product, according to the wiring diagrams,
installation information, etc. in this manual.
 Maintenance and repair should be done by the technicians authorized by the manufacturer firm.
 There must be minimum distance between the sensor and control unit. Avoid additions except the suitable connector unless
it needs.
 Keep away the sensor cable from as high power energy cables, contactor, motor, switched power supplies, inductive and
capacitive noisy supplies.
 Not to damage the sensor, supply directions and voltage must be paid attention. Don't energize before all connections
completed.
 Transport and storage should be at their original packaging and an ambient temperature of -30°C / +70°C in such a way that
they will not be exposed to dust, humudity, impact, vibration, falling or water.
 Chemicals such as alcohol, thinner etc. should not be used for cleaning the product. The product should be wiped with a
damp cloth.
 The product may be damaged and may become unusable if used outside of the specifications in the user manual.
Signal
V+ (12..24VDC)
Output 1 (0.1-10VDC / 4-20mA) (X axis)
GND (0V)
Output 2 (0.1-10VDC / 4-20mA) (Y axis)
Reset
* Output 2 is only used on two-axis models. On single-axis models, Pin 4 (green
cable) is empty.
* On single output models, 1 pcs M12 5 pin male socket is used as standard.
* Redundant models have two outputs. 1 pcs M12 5 pin male ve 1 pcs M12 5 pin
female socket is used as standard.
* Different socket models can be requested optionally.
DETERMINING THE 0° POINT OF SENSOR
Pin 5 (pink cable) and pin 3 (black cable) are short-circuited for about 2 seconds and then disconnected. Thus, the sensor
recognizes that the position is 0 °. If the same operation is repeated a second time, the sensor is reset to the factory
settings.
During the operations, the sensor position should be kept constant for approximately 4 seconds.
KK-INC.006 18.01.19 Rev No:1

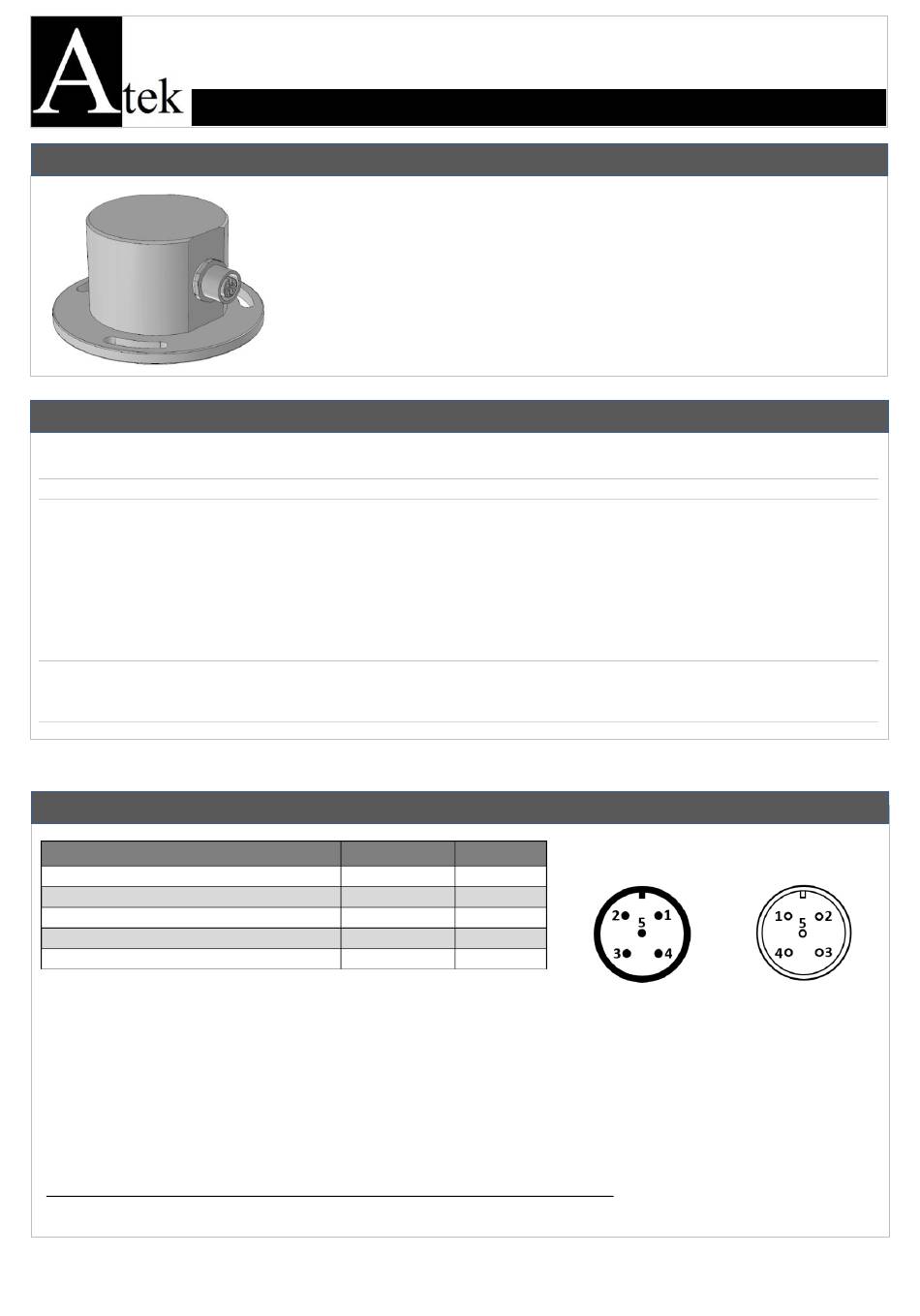

ANGLE SENSOR USER MANUAL
GENERAL INFORMATIONS
INC 210 series angle sensors are the sensors that show the angle of rotation of objects
standing perpendicular to the earth. Angle measurement information between 0°-360°
can be taken from these sensors. These sensors with 0.1-10VDC voltage output or 4-
20mA current output option, can take measure ment with ±0.1° accuracy. Thanks to its
compensated axis sensitivity, the effect of the axes on each other is minimized.
These sensors, especially used in machine and crane industries, can operate in outdoor
environments with their high IP protection classes. Optionally, sensors with redundant
output can be produced.
WARNINGS
ELECTRICAL CONNECTION
M12 Socket
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
INC 210 (Analog Output)
M12 - 5 PIN MALE
Cable
SOCKET
Red
Yellow
Black
Green
Pink
M12 - 5 PIN
FEMALE SOCKET
1
