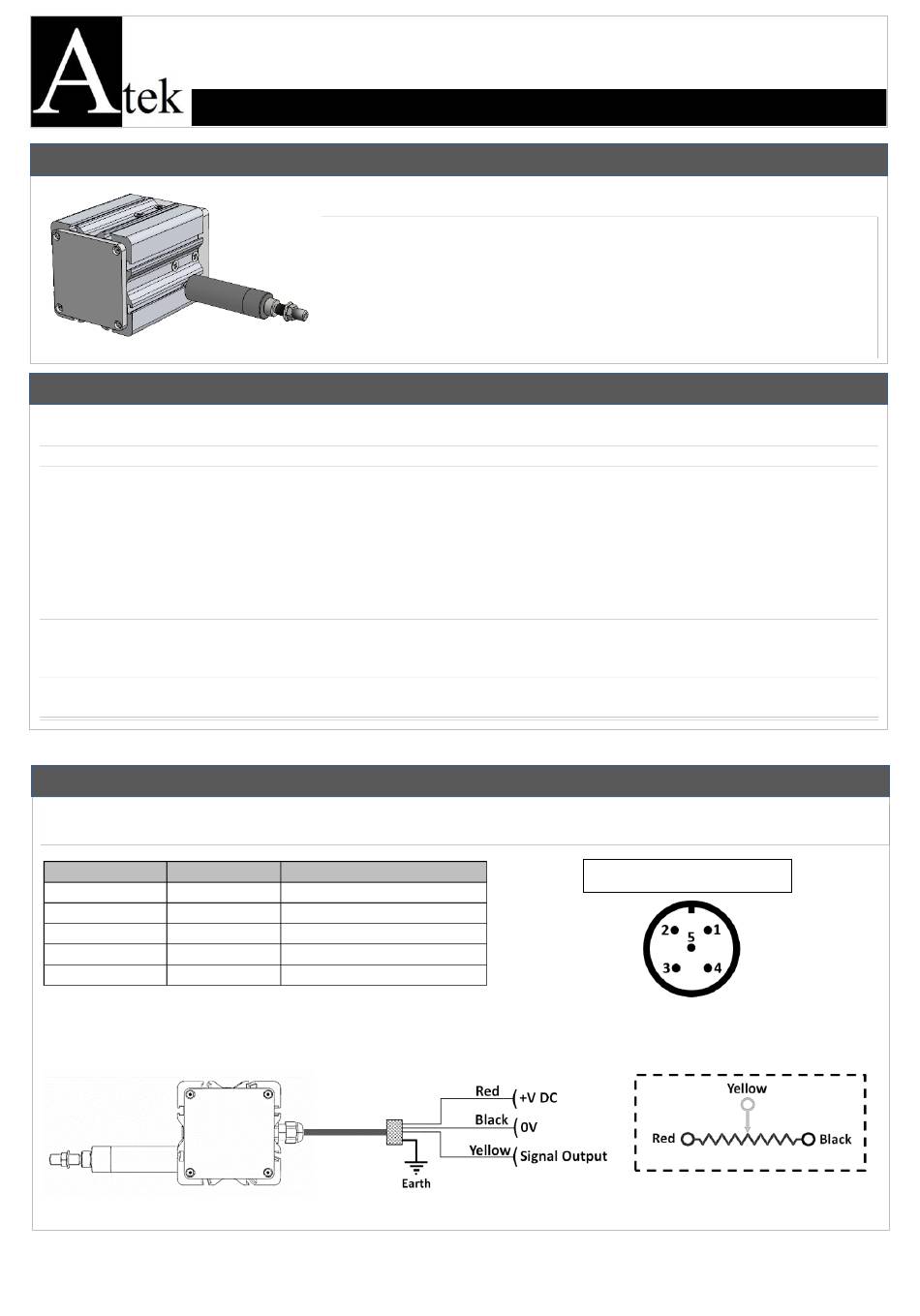

Atek AWP 120 Series User Manual

 The installation of the product is carried out by the customer who purchases the product, according to the wiring diagrams,
installation information, etc. in this manual.
 Maintenance and repair should be done by the technicians authorized by the manufacturer firm.
 There must be minimum distance between the sensor and control unit. Avoid additions except the suitable connector unless it
needs.
 Keep away the sensor cable from as high power energy cables, contactor, motor, switched power supplies, inductive and capacitive
noisy supplies.
 Shielding edge of the sensor cable must be ground connected.
 Not to damage the sensor, supply directions and voltage must be paid attention. Don't energize before all connections completed.
 Transport and storage should be at their original packaging and an ambient temperature of -25°C / + 85°C in such a way that they
will not be exposed to dust, humudity, impact, vibration, falling or water.
 Chemicals such as alcohol, thinner etc. should not be used for cleaning the product. The product should be wiped with a damp
cloth.
 The product may be damaged and may become unusable if used outside of the specifications in the user manual.
 The product will be out of warranty if used outside of the specifications in the user manual and opened or repaired other
than authorized services.

Never make or undo electrical connections to the sensor when voltage is applied, otherwise this may result in damage to
devices.
SIGNAL CABLE COLOR
Earth Silver (mesh)
+V
0V
Output Signal*
-
* Output Signal may be potentiometric, 0-10 VDC or 4-20 mA depending on the
model (See Product code table).
KK-AWP.004 28.09.18 Rev No:0
DRAW WIRE SENSOR USER MANUAL
AWP 120 series draw wire sensors; consists of a rotary potentiometer which is controled by
stainless steel wire. They make measurement by pulling and rewinding stainless steel wire.
Different measuring lengths from 400 mm to 3000 mm are available. They converts linear
motion to potentiometric output.
The "A" series, works with 24VDC supply and gives of 4-20 mA analog output with the help of
the converter card.
The "V" series, works with 24VDC supply and gives of 0-10 VDC analog output with the help of
the converter card.
Optionally, different non-standard measuring lengths, cable length or socket model can be
requested.
ELECTRICAL CONNECTIONS
M12 5 PIN MALE SOCKET
Pin 1
Red Pin 2
Black Pin 3
Yellow Pin 4
- Pin 5
GENERAL INFORMATION
WARNINGS
AWP 120
M12 5 Pin Male Socket
1
