Carson 3D Series Manual

3DSeries

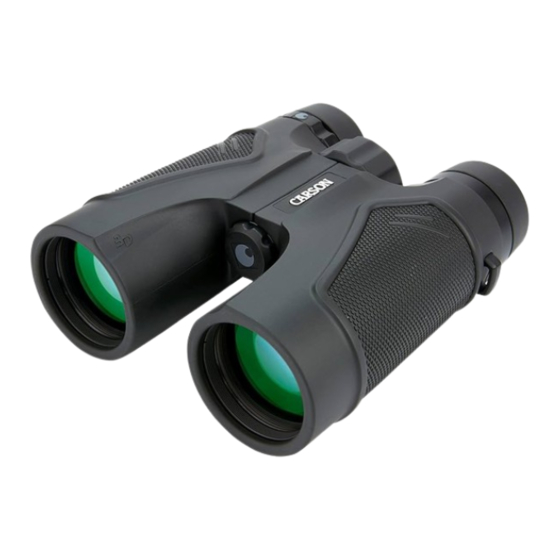

Congratulations on selecting your new Carson binoculars!
ED Binoculars
With reasonable care, your binoculars will provide you with years of enjoyment.
In order to achieve optimum performance, please read the instructions carefully on the
proper use and care of your binoculars.
Congratulations on selecting your new 3D Series ED Binocular! In order to achieve optimum
performance, please follow instructions for proper use and care.
Speci cations
PRODUCT SPECIFICATION:
Model TD-832ED
Magni cation 8x
Objective Lens Diameter 32mm
Prism BAK-4
Fully
Lens Coating
Multi-Coated
Field of View 392 feet
Eye Relief 19.5mm
Close Focus 6.6 feet
O-Ring Sealed Yes
Phase Coated Yes
Waterproof / Fogproof Yes
ED Glass Objective Lens Yes
Weight 1.2 lbs.
Dimensions 4.9" x 4.8" x 1.8" 5.5" x 5" x 2"
EYE ADJUSTMENTS: HOW TO ADJUST FOR DISTANCE BETWEEN YOUR EYES
The distance between the eyes, called "interpupillary distance," varies from person to person. To achieve perfect alignment
of lens to eye, follow these simple steps:
1. Hold your binoculars in the normal viewing position.
2. Grasp each barrel firmly. Move barrels closer together or further
apart until you see a singular circular field. Always reset your binoculars
to this position before using.

ED GLASS

Your Carson 3D-ED binoculars contain ED Glass (extra low dispersion glass) in their lenses. This ED Glass helps prevent
chromatic aberration (fringes of color that appear around the viewing image).

FOCUSING YOUR BINOCULARS:

Carson 3D binoculars have a center focus wheel and an
independent right diopter eyepiece to account for small
differences in the strength of each eye. Please follow the
steps below to focus properly:
1. Adjust the interpupillar distance.
2. Rotate the right eyepiece to its index mark and
sight on a fixed distant object.
3. Cover the right objective (front) lens with your
hand, then rotate the central focusing wheel until
the image in the left eyepiece is sharp.
4. Cover the left objective (front) lens with your
hand then rotate the right eyepeice until the
image is sharp. (Note this setting for future use.)
5. Image should now be focused to your individual
eyestrength.
Prism System
TD-842ED TD-042ED TD-042EDMO
8x 10x 10x
Your Carson 3D binoculars feature a roof prism system.
42mm 42mm 42mm
The prisms overlap closely allowing the objective (front) lenses to
BAK-4 BAK-4 BAK-4
Fully Fully Fully
line up directly with the eyepieces. The result is a slim,
Multi-Coated Multi-Coated Multi-Coated
341 feet 314 feet 314 feet
streamlined shape in which the lenses and prisms
19.5mm 16mm 16mm
that magnify and correct the image are in
9.8 feet 9.8 feet 9.8 feet
Yes Yes Yes
a straight line.
Yes Yes Yes
Yes Yes Yes
Yes Yes Yes
1.4 lbs. 1.5 lbs. 1.5 lbs.
5.5" x 5" x 2" 5.5" x 5" x 2"

Eye Adjustments

How to adjust for distance between your eyes: The distance between the eyes, called "interpupillary
distance, " varies from person to person. To achieve perfect alignment of lens to eye, follow these simple steps:
1. Hold your binoculars in the normal viewing position
2. Grasp each barrel rmly. Move the barrels closer together
or farther apart until you see a single circular eld.
Always reset your binoculars to this position before using.
2

Twist-Up Eyecups

Your Carson 3D binocular features twist-up
eyecups designed to exclude extraneous light.
If you do not wear eyeglasses, you may choose
to twist the eyecups out to block stray light
and re ections from your view.
If you are an eyeglass wearer, lowering
the eyecups will bring your eyes closer to the
binocular lenses, providing an improved eld of view.
Waterproo ng
All Carson 3D binoculars are nitrogen purged and o-ring sealed to protect your binocular from water
damage. They are designed to protect against accidental splashing, rain or even full submersion in
up to 1 meter of water for up to 5 minutes.
Optical Coatings
All 3D binoculars feature fully multi-coated optics, meaning that all glass surfaces have multiple
PRISM SYSTEM:
TD-050ED
Prism System
Your Carson 3D binoculars
10x
feature a roof prism system.
50mm
Your Carson 3D binoculars feature a roof prism system.
BAK-4 The prisms overlap closely
The prisms overlap closely allowing the objective (front) lenses to
Fully
allowing the objective
line up directly with the eyepieces. The result is a slim,
Multi-Coated
(front) lenses to line up
streamlined shape in which the lenses and prisms
262 feet
that magnify and correct the image are in
20mm directly with the eyepieces.
a straight line.
13.1 feet
The result is a slim,
Yes
streamlined shape in which
Yes
the lenses and prisms that
Yes
magnify and correct the
Yes
image are in a straight line.
Eye Adjustments
1.7 lbs.
objective lens
6.8" x 5.3" x 2.5"
How to adjust for distance between your eyes: The distance between the eyes, called "interpupillary
distance, " varies from person to person. To achieve perfect alignment of lens to eye, follow these simple steps:
1. Hold your binoculars in the normal viewing position
2. Grasp each barrel rmly. Move the barrels closer together
or farther apart until you see a single circular eld.
Always reset your binoculars to this position before using.
2
TWIST-UP EYECUPS:
Your Carson 3D binocular features twist-up eyecups
designed to exclude extraneous light. If you do not wear
eyeglasses, you may choose to twist the eyecups out to
block stray light and reflections from your view. If you are
an eyeglass wearer, lowering the eyecups will bring your
eyes closer to the binocular lenses, providing an improved
field of view.
adjustable
right diopter
(eyepiece)
INSTRUCTIONS
eyepiece
objective lens
twist-adjust
eyecups
central
focusing wheel
TD-832ED
TD-842ED
TD-042ED
TD-050ED
eyepiece
