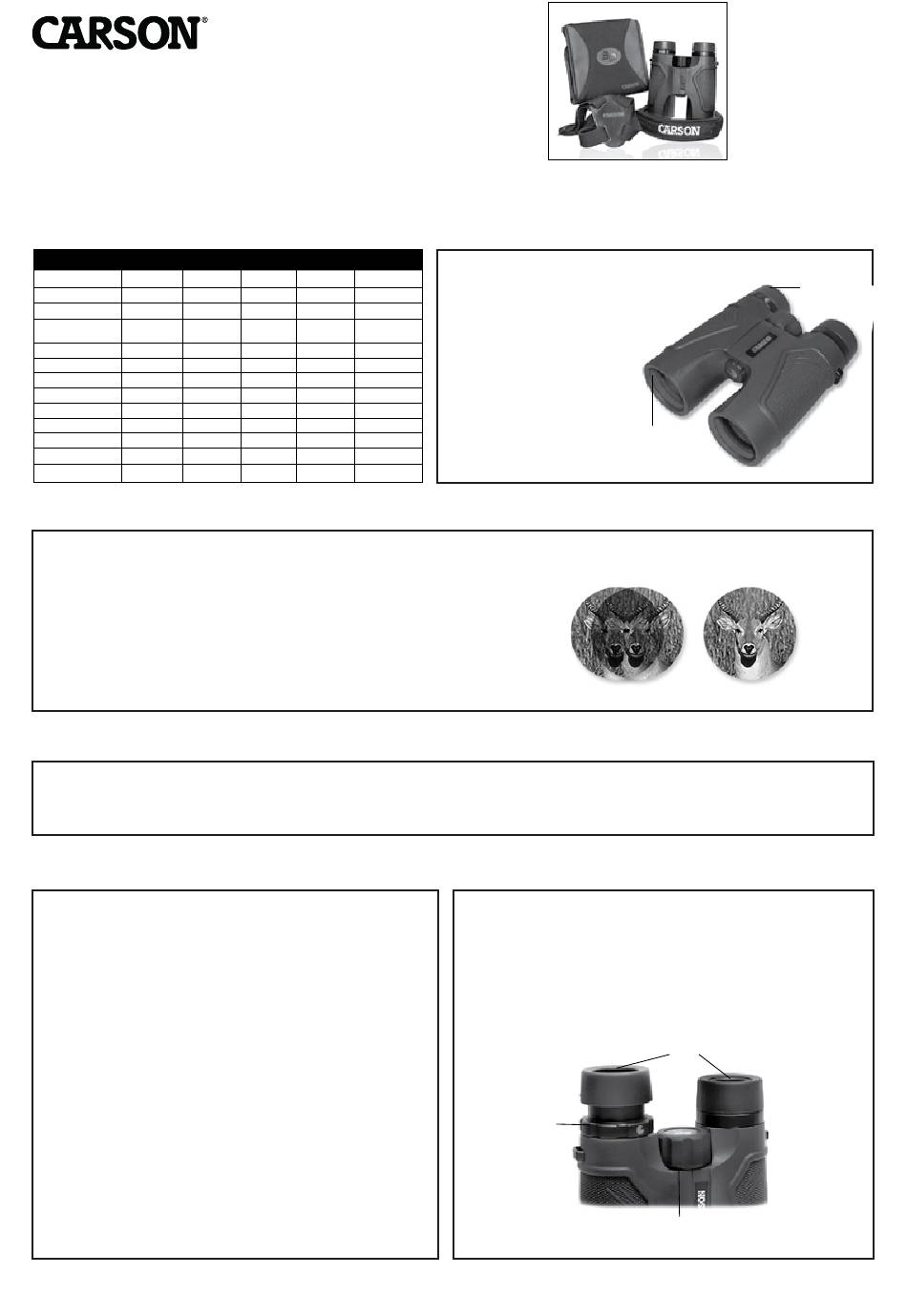

Carson 3D Series Quick Manual

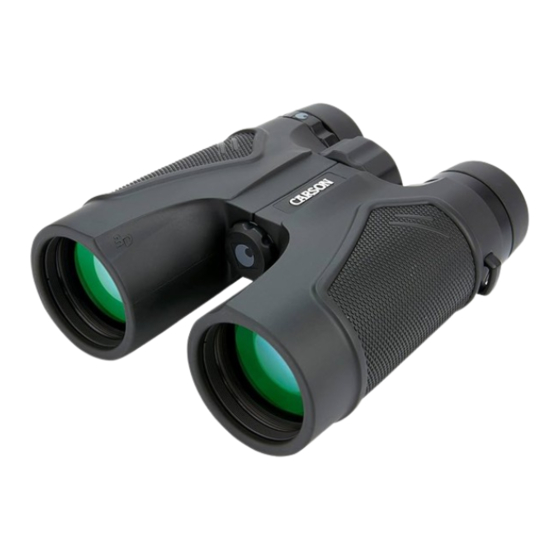

3DSeries
ED Binoculars
Congratulations on selecting your new 3D Series ED Binocular! In order to achieve optimum
performance, please follow instructions for proper use and care.
PRODUCT SPECIFICATION:
Model TD-832ED TD-842ED
Magniÿcation 8x 8x
Objective Lens Diameter 32mm 42mm
Prism BAK-4 BAK-4
Fully Fully
Lens Coating
Multi-Coated Multi-Coated
Field of View 392 feet 341 feet
Eye Relief 19.5mm 19.5mm
Close Focus 6.6 feet 9.8 feet
O-Ring Sealed Yes Yes
Phase Coated Yes Yes
Waterproof / Fogproof Yes Yes
ED Glass Objective Lens Yes Yes
Weight 1.2 lbs. 1.4 lbs.
Dimensions 4.9" x 4.8" x 1.8" 5.5" x 5" x 2"
EYE ADJUSTMENTS: HOW TO ADJUST FOR DISTANCE BETWEEN YOUR EYES
The distance between the eyes, called "interpupillary distance," varies from person to person. To achieve perfect alignment
of lens to eye, follow these simple steps:
1. Hold your binoculars in the normal viewing position.
2. Grasp each barrel firmly. Move barrels closer together or further
apart until you see a singular circular field. Always reset your binoculars
to this position before using.
ED GLASS
Your Carson 3D-ED binoculars contain ED Glass (extra low dispersion glass) in their lenses. This ED Glass helps prevent
chromatic aberration (fringes of color that appear around the viewing image).
FOCUSING YOUR BINOCULARS:
Carson 3D binoculars have a center focus wheel and an
independent right diopter eyepiece to account for small
differences in the strength of each eye. Please follow the
steps below to focus properly:
1. Adjust the interpupillar distance.
2. Rotate the right eyepiece to its index mark and
sight on a fixed distant object.
3. Cover the right objective (front) lens with your
hand, then rotate the central focusing wheel until
the image in the left eyepiece is sharp.
4. Cover the left objective (front) lens with your
hand then rotate the right eyepeice until the
image is sharp. (Note this setting for future use.)
5. Image should now be focused to your individual
eyestrength.
TD-042ED TD-042EDMO TD-050ED
10x 10x 10x
42mm 42mm 50mm
BAK-4 BAK-4 BAK-4
Fully Fully Fully
Multi-Coated Multi-Coated Multi-Coated
314 feet 314 feet 262 feet
16mm 16mm 20mm
9.8 feet 9.8 feet 13.1 feet
Yes Yes Yes
Yes Yes Yes
Yes Yes Yes
Yes Yes Yes
1.5 lbs. 1.5 lbs. 1.7 lbs.
5.5" x 5" x 2" 5.5" x 5" x 2" 6.8" x 5.3" x 2.5"
PRISM SYSTEM:
Your Carson 3D binoculars
feature a roof prism system.
The prisms overlap closely
allowing the objective
(front) lenses to line up
directly with the eyepieces.
The result is a slim,
streamlined shape in which
the lenses and prisms that
magnify and correct the
image are in a straight line.
t alignmen
TWIST-UP EYECUPS:
Your Carson 3D binocular features twist-up eyecups
designed to exclude extraneous light. If you do not wear
eyeglasses, you may choose to twist the eyecups out to
block stray light and reflections from your view. If you are
an eyeglass wearer, lowering the eyecups will bring your
eyes closer to the binocular lenses, providing an improved
field of view.
adjustable
right diopter
(eyepiece)
TD-832ED
TD-842ED
TD-042ED
TD-050ED
t) lenses t
objective lens
o ey w these simple steps:
twist-adjust
eyecups
central
focusing wheel
eyepiece
