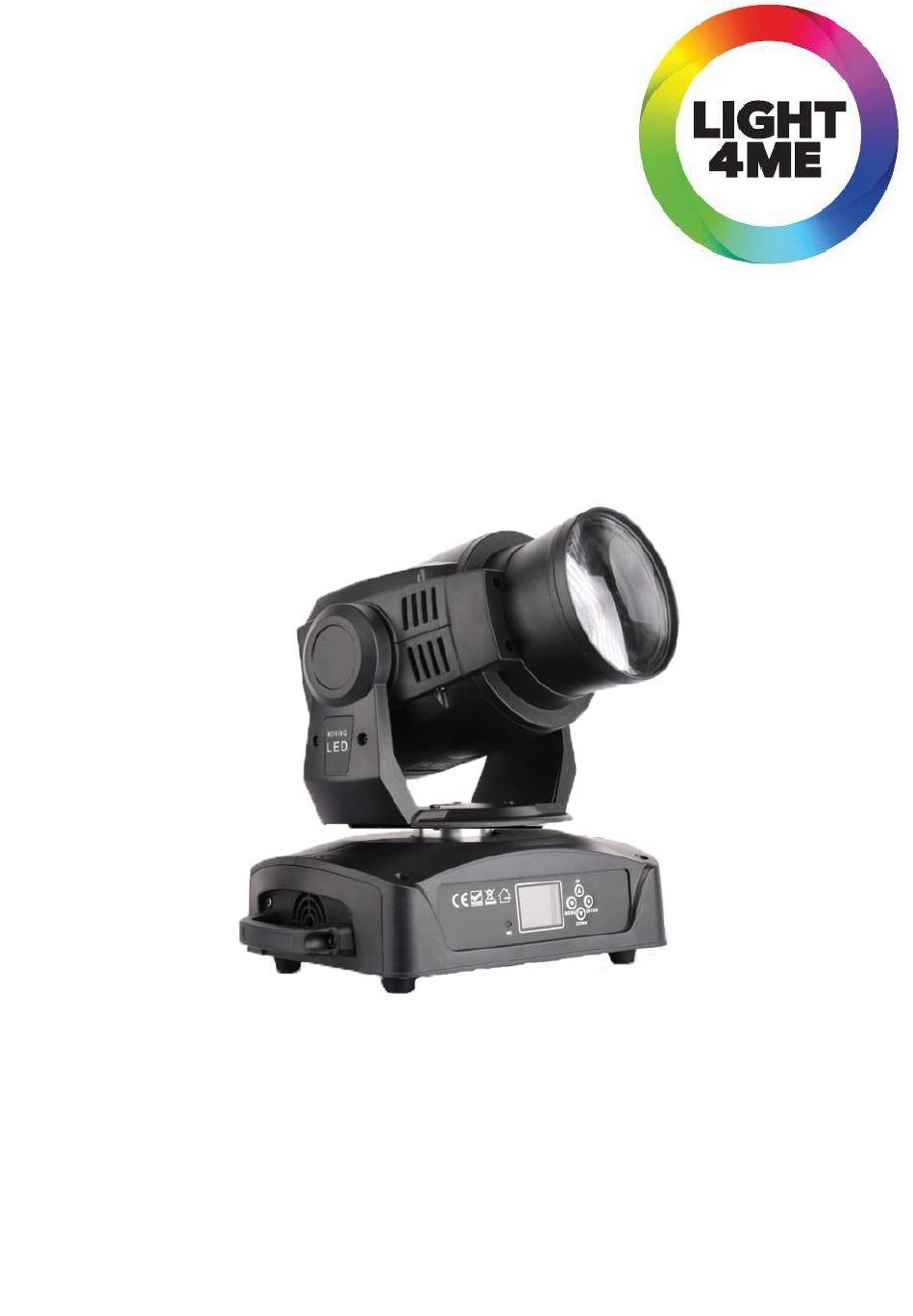

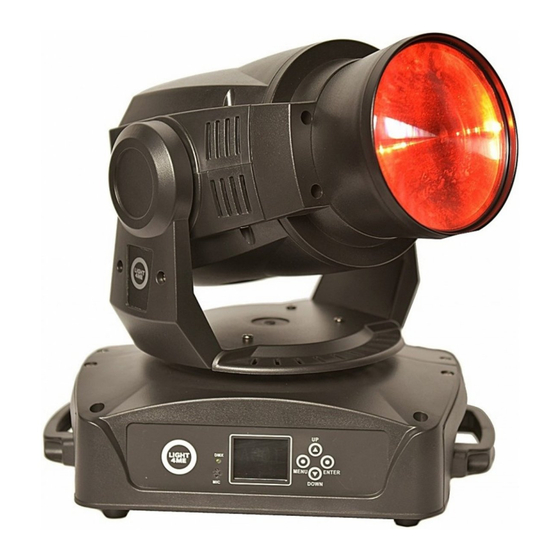

- Page 1 LIGHT4ME SMART BEAM 90 USER MANUAL Thank you very much for choosing our product. For safety purpose, please read this manual carefully before your operation. This manual included installation and using information. Please install and operate it according to this manual.
- Page 2 1. Technology Reference Voltage: 100V-240V,50-60Hz Power consumption:150W LED: ultra bright 90W LED LED color wheel: Basic 7 colors+ white, can adjust speed rainbow effect Gobo wheel: 8 static gobos + white, gobo flow effect, gobo shake Dimmer/Strobe: Dimmer, 1-20t/s Effect wheel: 3-facet prism (adjustable rotating speed and direction) Pan::540°...
- Page 3 Qualified professionals can install, operate and maintain the fixture, and to make sure strictly in accordance with the procedures described in this operating instructions. The fixture should be installed in a well ventilated place, and the distance from the wall to keep above 10 cm, at the same time, please check the fan and the vent is unimpeded.
- Page 4 Important: before any installation, maintenance and clean the fixture, please confirm the power supply is cut off! Power supply connection The power cord connection as follows: L = (live wire) brown wire E (ground) = yellow/green double color line N =(middle line) blue line Connecting power supply, please pay attention to the power supply voltage and frequency should be marked on the voltage and frequency of fixture.
- Page 5 3. DMX CHANNEL CONTROL There is one mode to get DMX 512 signal for this fixture, it is 12CH. Please find the details as follow: 12 Channels mode Channel Function Value Description 0-255 Pan movement(540°) Pan Fine 0-255 16 bit pan movement...
- Page 6 Tilt 0-255 Tilt movement(220°) Tilt Fine 0-255 16 bit tilt movement Pan/Tilt speed 0-255 Decreasing speed Dimmer 0-255 Dimmer 0-100% 0-19 No function 20-199 Strobe effect slow to fast Strobe 200-249 Random strobe 250-255 No function 0-19 Open/White 20-39 Color1 40-59 Color2 60-79...
- Page 7 70-79 Gobo7 80-89 Gobo8 100-109 Gobo8 shake 110-119 Gobo7 shake 120-129 Gobo6 shake 130-139 Gobo5 shake 140-149 Gobo4 shake 150-159 Gobo3 shake 160-169 Gobo2 shake 170-179 Gobo1 shake Forwards skipped rotation 180-199 from fast to slow Forwards rainbow effect 160-199 from fast to slow Backwards rainbow effect 200-255...
- Page 8 qualified technicians can do the repair work. In order to maintain the gobo wheel smooth rotation and smooth movement, it is suggested to add grease for the rotation gobo wheel every two months. Should use good quality grease. In order to ensure the fixture working well, maintain the cleanness of fixture is very necessary.
