Good Earth Lighting UC1210-WH1-12LF1-G Manual

DO NOT ATTEMPT TO INSTALL LED LIGHT BAR WHILE PLUGGED IN.
This LED Light bar has a 3-prong grounded plug as a feature to reduce the risk of electric shock. This plug will fit in a grounded outlet only one way. If the plug does not
fit fully in the outlet, contact a qualified electrician. Never use power strip unless the plug can be fully inserted. Do not alter the plug.
DO NOT USE THIS FIXTURE WITH A DIMMING CIRCUIT.
Read entire installation procedure before you begin and save instructions close to the fixture for future reference.
IMPORTANT SAFETY INFORMATION
1. Use only insulated staples or plastic ties to secure the cords.
2. Route and secure the cords so that they will not be pinched or damaged.
3. LED light output is strong enough to injure human eyes. Do not look directly at exposed LEDs.
4. LEDs gradually emit less light over their lifetime.
5. Do not use an extension cord. Use power strips with integral overcurrent protection to supply other electrical devices or accessories in cabinet.
6. Suitable for INDOOR damp locations.
7. Do NOT mount to surfaces less than ¼ in.
8. Do NOT mount over sinks or stoves.
9. Do NOT install these lights inside of enclosed cabinets.
10. Turn power off before servicing.
11. Maximum number of fixtures per run must not exceed maximum power supply wattage rating of 240W.
12. Not intended for recessed installation in ceiling or soffits.
Care and Maintenance
Periodically clean the fixture and diffuser using a mild, non-abrasive cleaner and soft cloth. When cleaning the fixture, make sure the power is turned off. Do not spray
cleaner directly onto any part of the fixture or LEDs.
AA x2
BBx2
Mark the general area where the mounting bracket (BB) will be located. Using a small drill or nail, make two small pilot holes at the marked locations. Align the mounting
brackets (BB) and drive screws (AA) into place. NOTE: Ensure mounting location is within 5ft. of an electrical outlet.
Lift the fixture toward the mounting brackets (BB) while aligning the top of the fixture channel with both clips. Apply upward pressure until channel snaps into place and seats
into both brackets.
Barre d'éclairage à DEL pour raccordement à intensité lumineuse élevée (Page 2)
Linking outlet
Prise de connexion
Toma de conexión
WARNINGS AND CAUTIONS
Barra LED enlazable de altos lúmenes (Página 4)

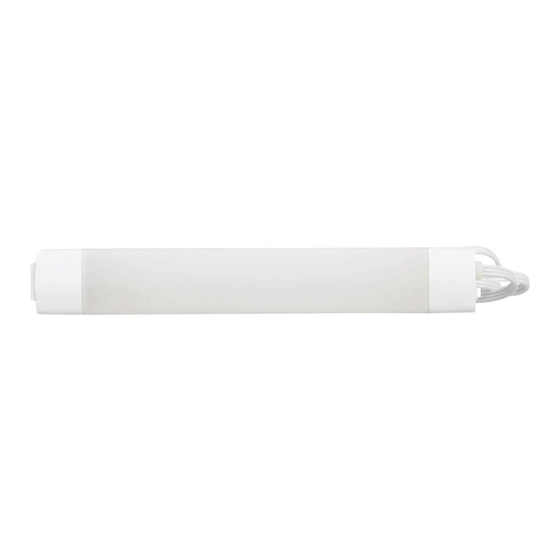

UC1210-WH1-12LF1-G, UC1210-WH1-18LF1-G, UC1210-WH1-24LF2-G
Power cord
Cordon d'alimentation
Cable de alimentación
ON/OFF Rocker Switch
Interrupteur Marche/Arrêt
(ON/OFF) basculant
Interruptor oscilante
de encendido/apagado
High Lumen Linking LED Bar (Page 1)
Model / Model / Modelo #:
AAx2 BBx2
* Actual hardware may differ from illustration
* La quincaillerie incluse peut être différente de
l'illustration.
* Los aditamentos reales pueden diferir de los que
se muestran en la ilustración.
Required/
Nécessaire/
Obligatorio
CCx2
