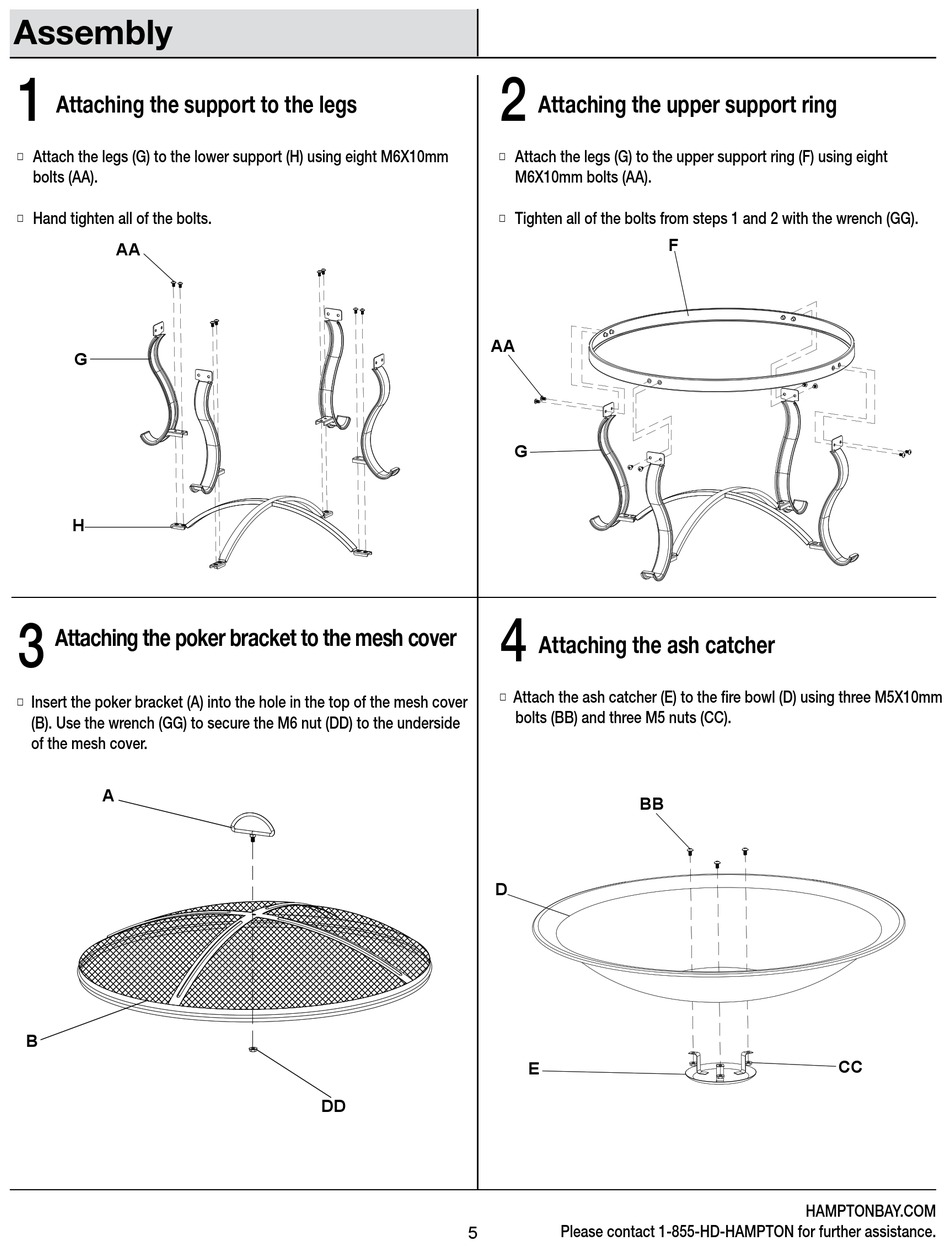

Assembly

1
Attaching the support to the legs
Attach the legs (G) to the lower support (H) using eight M6X10mm
c
bolts (AA).
Hand tighten all of the bolts.
c
AA
G
H
3
Attaching the poker bracket to the mesh cover
Insert the poker bracket (A) into the hole in the top of the mesh cover
c
(B). Use the wrench (GG) to secure the M6 nut (DD) to the underside
of the mesh cover.
A
B
2
c
c
AA
D
DD
5
Attaching the upper support ring
Attach the legs (G) to the upper support ring (F) using eight
M6X10mm bolts (AA).
Tighten all of the bolts from steps 1 and 2 with the wrench (GG).
F
G
4
Attaching the ash catcher
Attach the ash catcher (E) to the fire bowl (D) using three M5X10mm
c
bolts (BB) and three M5 nuts (CC).
BB
E
Please contact 1-855-HD-HAMPTON for further assistance.
