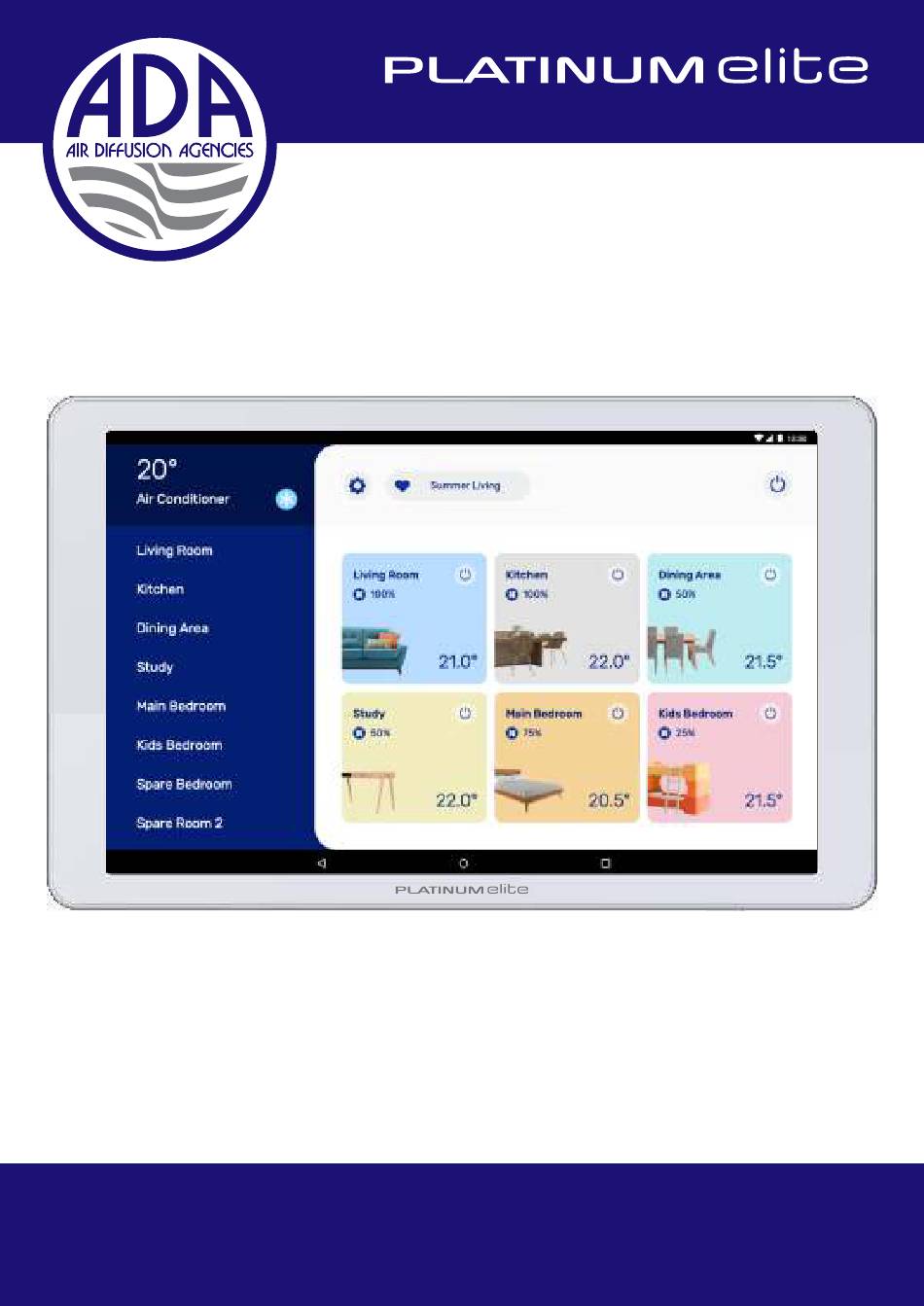

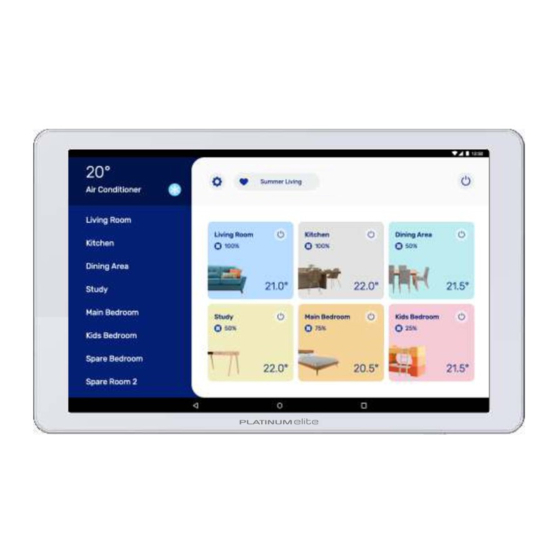

- Page 1 ZONE CONTROL SYSTEM INSTALLATION MANUAL...
-
Page 3: Table Of Contents
Wiring Diagram Commissioning Notes 20. Software Update 10. AC Control - Samsung No NASA 21. Downloading and Installing Wiring Diagram Platinum Elite App Commissioning Notes Accessing System Set Up 11. AC Control - Daikin 23. Adding a Zone Wiring Diagram Commissioning Notes 24. -
Page 4: Precautions
PRECAUTIONS 1. Precautions Refer to these installation instructions before commencing the installation or service of this product. WARNING This product should be installed and setup by qualified personnel. To reduce the risk of fire, electric shock or product damage: DO NOT expose to rain or moisture of any kind DO NOT place articles filled with water on or near this appliance DO NOT remove covers –... -
Page 5: Components
PEGD PEGP PEGF PEGT 2, 3 & 4-core AC Link Cable (PETCW, PE3CW, PE4CW) - for use with Platinum Elite Gateway Wireless Temperature Sensor (PEWZS) Duct Sensor (PEDS) Wireless Receiver (PEWRM) Plug-in Temperature Sensor (PEPZS) 30m Cat6 Coms Cable (PECC30) -
Page 6: Mounting The Control Box
Controller from AC Indoor Unit if it’s not going to be used. For more information r efer to the relevant brand AC Commissioning Notes provided and the Platinum Elite Gateway instruction sheet. In general, to connect the AC to the Zone Control System: Ÿ... -
Page 7: Connecting The Ac
After completing wiring and setting the DIP switches, power up the system. AC unit, Platinum Elite Gateway and Platinum Elite Zone Control System can be powered up at the same time, but if powered up separately, ensure AC unit and Platinum Elite Gateway are on before the Platinum Elite Zone Control System. -
Page 8: Mounting The Tablet
MOUNTING THE TABLET 8. Mounting the Tablet Ÿ Mount the Tablet where the standard AC wall control would normally be mounted, approximately 1.5m above floor level and preferably on an internal wall in the return air flow. Ensure at least a 100mm ‘exclusion zone’ to any other wall mounted item. Ÿ... - Page 9 MOUNTING THE TABLET Tablet Coms Cable Mounting Screw Mounting Plate Plug Coms Cable into socket on the back of the Tablet, then simply push Tablet onto the Mounting Plate and slide down so it clips into place 100mm ‘exclusion zone’ to any other wall mounted items...
-
Page 10: Ac Control - Samsung Nasa
Wiring Diagram F3 F4 AC Indoor Unit PCB 2-core cable (PETCW) supplied with Platinum Elite Cable Kit Gateway Address Setting F3 F4 Gateway No. 1 (Default) Platinum Elite Gateway PEGSN A+ B- 24VDC Tablet Power Cat6 cable 2-core cable (PETCW) Supply... -
Page 11: Commissioning Notes
Platinum Elite Zone Control System. Ÿ To use Platinum Elite Sensors for AC temperature control, during AC setup, tap on the Reference Temp icon labelled ‘AC’, then select ‘Tablet’ or the preferred room Temperature Sensor from the Temperature Reference list. -
Page 12: Ac Control - Samsung No Nasa
Gateway Master/Slave Setting supplied with Platinum Elite Cable Kit Master Slave Down/OFF Up/ON Gateway Address Setting F3 F4 V1 V2 Gateway No. 1 (Default) Platinum Elite Gateway PEGS A+ B- 24VDC Tablet Power Cat6 cable 2-core cable (PETCW) Supply supplied with Platinum... -
Page 13: Commissioning Notes
Platinum Elite Zone Control System. Ÿ To use Platinum Elite Sensors for AC temperature control, during AC setup, tap on the Reference Temp icon labelled ‘AC’, then select ‘Tablet’ or the preferred room Temperature Sensor from the Temperature Reference list. -
Page 14: Ac Control - Daikin
Elite Cable Kit Master Slave (P1P2 connection has no specific polarity) Down/OFF Up/ON Gateway Address Setting P1 P2 Gateway No. 1 (Default) Platinum Elite Gateway PEGD A+ B- 24VDC Tablet Power Cat6 cable 2-core cable (PETCW) Supply supplied with Platinum... -
Page 15: Commissioning Notes
Platinum Elite Zone Control System. Ÿ To use Platinum Elite Sensors for AC temperature control, during AC setup, tap on the Reference Temp icon labelled ‘AC’, then select ‘Tablet’ or the preferred room Temperature Sensor from the Temperature Reference list. -
Page 16: Ac Control - Fujitsu
Platinum Elite Cable Kit Master Slave Down/OFF Up/ON Gateway Address Setting B W R (3 2 1) Gateway No. 1 (Default) Platinum Elite Gateway PEGF A+ B- 24VDC Tablet Power Cat6 cable 2-core cable (PETCW) Supply supplied with Platinum... -
Page 17: Commissioning Notes
Platinum Elite Zone Control System. Ÿ To use Platinum Elite Sensors for AC temperature control, during AC setup, tap on the Reference Temp icon labelled ‘AC’, then select ‘Tablet’ or the preferred room Temperature Sensor from the Temperature Reference list. -
Page 18: Ac Control - Mitsubishi Electric
AC Indoor Unit PCB Cable with plugs, Fan Speed Setting supplied with Gateway 3 or 4 Down/OFF Up/ON Gateway Address Setting Gateway No. 1 (Default) Platinum Elite Gateway PEGME A+ B- 24VDC Tablet Power Cat6 cable 2-core cable (PETCW) Supply... -
Page 19: Commissioning Notes
Platinum Elite Zone Control System. Ÿ To use Platinum Elite Sensors for AC temperature control, during AC setup, tap on the Reference Temp icon labelled ‘AC’, then select ‘Tablet’ or the preferred room Temperature Sensor from the Temperature Reference list. -
Page 20: Ac Control - Mitsubishi Heavy
Gateway Master/Slave Setting Elite Cable Kit Master Slave (XY connection has no specific polarity) Down/OFF Up/ON Gateway Address Setting Gateway No. 1 (Default) Platinum Elite Gateway PEGMHI A+ B- 24VDC Tablet Power Cat6 cable 2-core cable (PETCW) Supply supplied with Platinum... -
Page 21: Commissioning Notes
Platinum Elite Zone Control System. Ÿ To use Platinum Elite Sensors for AC temperature control, during AC setup, tap on the Reference Temp icon labelled ‘AC’, then select ‘Tablet’ or the preferred room Temperature Sensor from the Temperature Reference list. -
Page 22: Ac Control - Panasonic
AC Indoor Unit PCB 2-core cable (PETCW) supplied with Platinum Elite Cable Kit (R1R2 connection has no specific polarity) Gateway Address Setting R1 R2 Gateway No. 1 (Default) Platinum Elite Gateway PEGP A+ B- 24VDC Tablet Power Cat6 cable 2-core cable (PETCW) Supply... -
Page 23: Commissioning Notes
Platinum Elite Zone Control System. Ÿ To use Platinum Elite Sensors for AC temperature control, during AC setup, tap on the Reference Temp icon labelled ‘AC’, then select ‘Tablet’ or the preferred room Temperature Sensor from the Temperature Reference list. -
Page 24: Ac Control - Toshiba
Gateway Master/Slave Setting Elite Cable Kit Master Slave (AB connection has no specific polarity) Down/OFF Up/ON Gateway Address Setting Gateway No. 1 (Default) Platinum Elite Gateway PEGT A+ B- 24VDC Tablet Power Cat6 cable 2-core cable (PETCW) Supply supplied with Platinum... -
Page 25: Commissioning Notes
Platinum Elite Zone Control System. Ÿ To use Platinum Elite Sensors for AC temperature control, during AC setup, tap on the Reference Temp icon labelled ‘AC’, then select ‘Tablet’ or the preferred room Temperature Sensor from the Temperature Reference list. -
Page 26: Zone Setup
SYSTEM SETUP 17. Zone Setup When the system is first powered up, the Tablet will automatically initialise and detect installed components. Once the initialisation process is complete, the Zone setup screen is displayed. If the Zone Dampers have been installed correctly, all Zones should be shown. - Page 27 SYSTEM SET UP Once satisfied with the detected Zones, each Zone can be individually configured. Each room can be named by selecting one of the default names provided, or by entering a custom name. Room colour can also be changed to suit user preference.
- Page 28 SYSTEM SETUP If using Wireless Temperature Sensors, they must be linked to the relevant Zone. To link a Sensor, tap the ‘Add’ button. NOTE: In some extreme circumstances a Wireless Temperature Sensor may not be practical and a Plug-in Temperature Sensor may be required.
- Page 29 SYSTEM SET UP The Zone sensor code will show on the Zone Setup screen when successfully connected. ‘Disconnect’ can be used when it is required to link an alternate Wireless Temperature Sensor or if replacing a Wireless Temperature Sensor with a Plug-in Temperature Sensor.
-
Page 30: Setting Ac Control
18. Setting AC control When using a Platinum Elite Gateway, the Zone Setup screen will show ‘Continue Setup’. The system should automatically detect the brand Gateway and prompt the AC setup screen. - Page 31 SYSTEM SET UP Deselect unsupported AC modes for the installed AC system, then if using external reference sensors, tap on ‘AC’ icon to select an alternate Reference Temperature Sensor. Depending on the installation configuration, this could be the ‘Tablet’ or one of the room Temperature Sensors.
-
Page 32: Wi-Fi Connection
Connecting to Wi-Fi will allow automatic software updates for the Tablet and enable use of the Platinum Elite App on your mobile phone. The connection will stay permanent unless settings on the chosen router change. The... -
Page 33: Software Update
SYSTEM SET UP 20. Software Update Once connected to Wi-Fi, the system may indicate an updated version of the software is available. Follow the onscreen prompts to update. -
Page 34: Downloading And Installing Platinum Elite App
SYSTEM SET UP 21. Downloading and Installing Platinum Elite App on Mobile Device Download and install Platinum Elite App onto device using Google Play or Apple store. Once installed, use the Settings icon to access the Devices tab and tap ‘Add a device’. -
Page 35: Accessing System Setup
SYSTEM SET UP 22. Accessing System Setup After the initial installation, access to Zone Setup and AC Setup functionality can be obtained by tapping the Settings icon. All user access to Software Version, Support, System information, Zones diagnostic information and connected Devices are available from this screen. - Page 36 SYSTEM SET UP Changes to Zone Setup can now be made. To access AC Setup, from the Settings screen, tap the System icon, then tap the box showing the AC name. It will require the 4- digit installer code to access the AC Setup screen.
- Page 37 SYSTEM SET UP If the Tablet is being used as the reference temperature for the AC system and is unable to be mounted in the optimum position, to ensure the best performance of the system it may be necessary to set a temperature offset on the temperature registered by the Tablet.
- Page 38 SYSTEM SET UP The Temperature Reference Sensor can be changed from the Settings screen - this is the Temperature Sensor that is controlling the setpoint of the AC system. If the system has been setup to allow use of an external Temperature Reference Sensor, this setting will normally be the Tablet.
-
Page 39: Adding A Zone
SYSTEM SET UP 23. Adding a Zone To add a Zone to the system, once the new Zone Damper has been installed, access the Zone setup screen and tap the ‘Recheck’ icon - the new Zone should appear in the list on the left and can then be setup using this screen. -
Page 40: Adding An Ac
SYSTEM SET UP 25. Adding an AC If upgrading a system to add a Platinum Elite Gateway to enable AC control, or if the Gateway is added after the initial setup process, on the Zone Setup screen it will be necessary to perform a ‘Recheck’... -
Page 41: Reset Default
SYSTEM SET UP 26. Reset Default This will remove all user/installer saved information and return the system to its original factory settings. Tapping 'Yes, reset' will reset the system, then return to the Zone Setup screen presented during an initial set up. NOTE: It is possible to do a factory reset of the Tablet by using a small pin or paperclip to press the... - Page 42 SYSTEM SET UP INSTALLATION MANUAL...
-
Page 43: Warranty
SYSTEM SET UP WARRANTY 26. Warranty Subject to the conditions below, this product is guaranteed against any defects in materials or workmanship under conditions of normal use for a period of 12 months from date of purchase. The benefits conferred by this warranty are in addition to other warranties and remedies that are implied under the Trade Practices Act and similar State and Territory laws. -
Page 44: Troubleshooting
TROUBLESHOOTING WARRANTY 27. Troubleshooting All service to the Platinum Elite system must be carried out by an approved Air Diffusion Agencies service technician, and must not be done by unqualified personnel. Repairs carried out by unqualified personnel will void warranty. - Page 45 TROUBLESHOOTING Problem Cause Solution Tablet has no display Coms cable not plugged in. Check Coms cable connections at Control Box Assembly and back of Tablet. Power cable not plugged into Control Box Check power cable connection at Control Assembly. Box Assembly and 24V DC Power Supply. Power point not switched on at Control Switch on the power point.
-
Page 46: Zone Setup Sheet
ZONE SETUP SHEET Zone Room Zone Ø Relief Sensor ID INSTALLATION MANUAL INSTALLATION MANUAL... - Page 48 www.platinumzoning.com For the latest version of the Installation Manual, scan the QR code ADAPEI0421...
