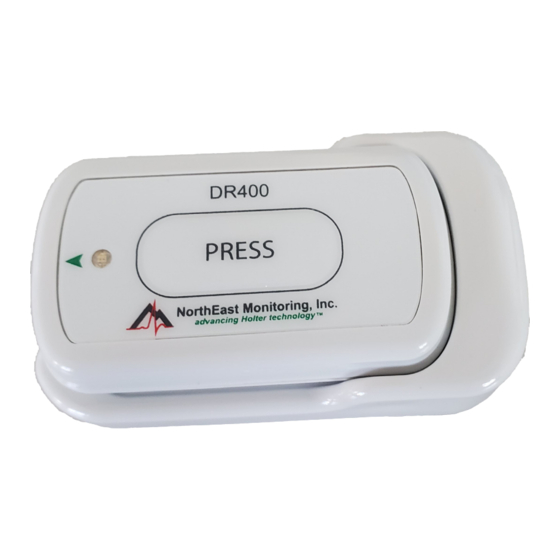

NorthEast Monitoring DR400 User Manual
Patch style holter recorder with event capabilities
Hide thumbs
Also See for DR400:
- User manual (20 pages) ,
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for NorthEast Monitoring DR400
Summary of Contents for NorthEast Monitoring DR400

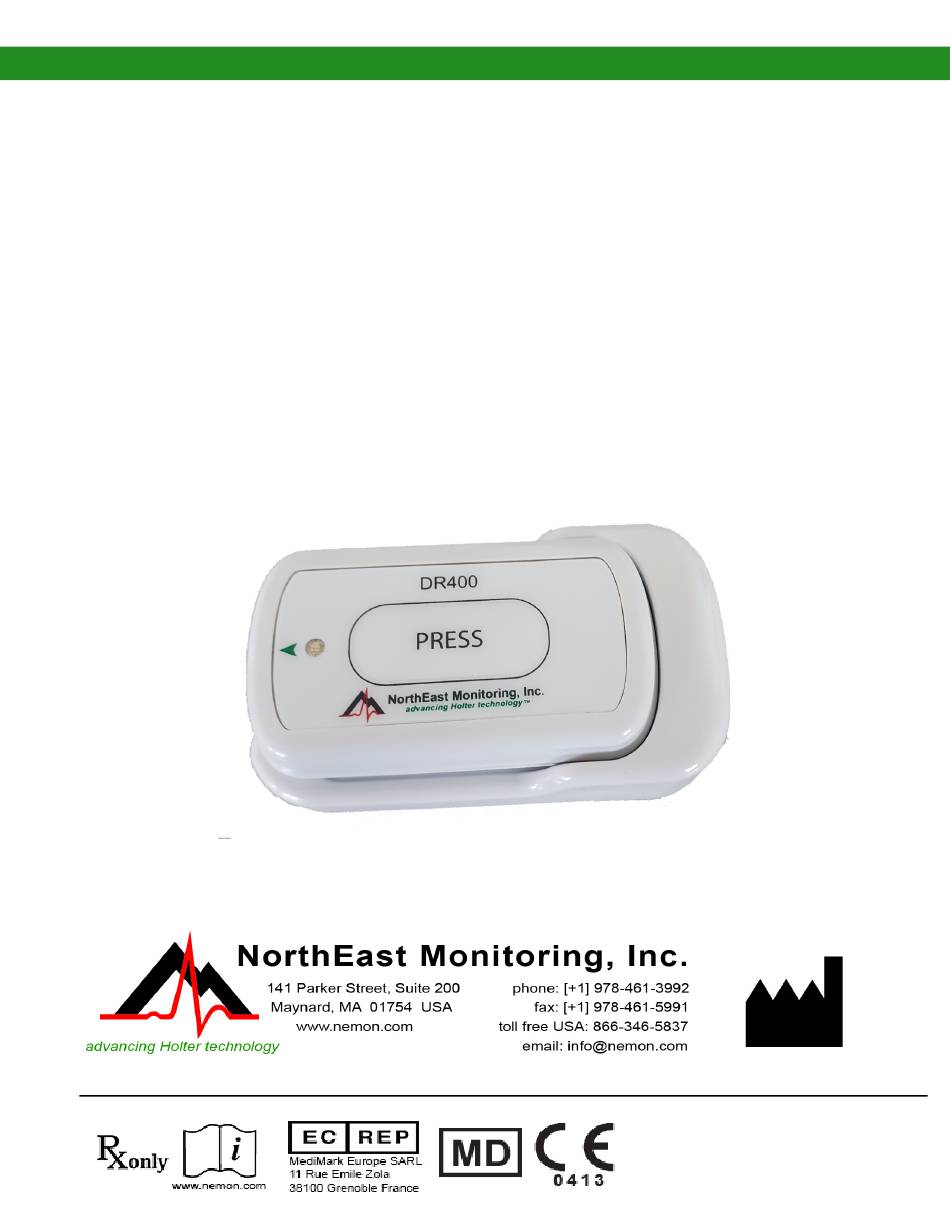

- Page 1 DR400 User Manual patch style Holter recorder with event capabilities DR400 v5.25 PCPatch v1.10 Part number: NEMM048-Rev-G Revision: August 25, 2021 Copyright 2021 All rights reserved...
-
Page 2: Table Of Contents
DR400 User Manual Table of Contents Table of Contents Chapter 1 - About the DR400 ... 3 Specifications ... 3 Intended Use ... 4 Indications for Use ... 4 Device Charging ... 4 LED Display ... 4 Patient Leads ... 4 Storage Capacity ... -
Page 3: Chapter 1 -About The Dr400
Chapter 1 -About the DR400 The NorthEast Monitoring DR400 patch style recorder can be used as either a Holter mon- itor and/or a looping Event recorder. Data obtained by monitoring is not analyzed at the time of recording. After recording is complete, Holter data is uploaded to a compatible ver- sion of NorthEast Monitoring’s Holter Analysis software. -
Page 4: Intended Use
Wireless Specifications cable that attaches to any USB charging source (power adapter) or PC for recharging. The battery The DR400 recorder is equipped with a wireless will take at most, 3 hours to fully recharge between Bluetooth transmitter. The Bluetooth specifica- uses. -
Page 5: Symbols
4 spring pins on the base of the docking station. This product does not contain Once the DR400 is attached to the docking station, lead. the recorder will recharge automatically. Addition- ally, after 2 minutes, the DR400 will stop recording Holter data and end the procedure. -
Page 6: Warranty Repairs
DR400 User Manual About the DR400: Warranty Repairs • The DR400 recorder contains no user-service- Consult the dealer or an experienced radio/TV able parts. Removing the label or opening the technician for help. recorder voids the warranty. This equipment has been certified to comply with... -
Page 7: Chapter 2 -Recording Ecg
DR400 should be charged every 14 days. If the DR400 is used frequently, for example, not left in the charger for more than a day or two, it is fine to keep it plugged in between uses. If you use your DR400 less frequently, for example it might be plugged in for more than a few days, it is best to remove the DR400 from the charger once full charged. -
Page 8: Step 4: Hook Up Patient
PCPatch utility if not already running. Once the PCPatch utility finds the Bluetooth USB and is “waiting for DR400”, the utility is ready for you to start the DR400 recorder. Remove the DR400 from the docking station. -
Page 9: Step 5: Start Recording
You can tell it has started software is installed. when: Note: For Holter, recording stops once the DR400 is plugged into the PC or power for 2 or • The DR400 will flashes green for 30 seconds more minutes. -
Page 10: Chapter 3 -Pcpatch & Wireless
Settings can be updated. • Start DR400 - For DR400 versions 5.22 and greater, this button can be used to start the recorder. The DR400 must be erased and have new Patient ID number to be started. -
Page 11: Dr400 Settings
AF Detect. Turn Atrial Fibrillation detection On/Off. About the DR400 Minimum Time Between AF. For AF events only. The following items are about the DR400 and cannot be The range of 2 - 90 minutes. updated via the PCPatch: Serial No. of DR400 recorder, CC (Customer Code), Version number of firmware on Minimum Peak AF HR. -
Page 12: To View Live Patient Ecg
USB. On the PC where the Bluetooth USB is installed, is unable to see it at all (the mode light on the USB plug in the DR400, open the PCPatch, and go to the is not flashing green), you may need to locate and Settings screen. -
Page 13: Wireless Event Recording
The Gateway field on the Settings screen shows connection. Once a transmission is successful, the which Gateway has been paired with the DR400. DR400 will attempt to send events until all are sent. The Service Transmitting Events Manually URL key,... -
Page 14: Etel - Mobile Cardiac Telemetry (Mct) Monitoring
(MCT). MCT is a feature that can be added to a DR400. DR400 in Event recording mode and allows for bidirectional communication between PC and the If you need to delete a command before it is sent, DR400 without patient interaction. -
Page 15: Chapter 4 -Appendices
Sterilization is not needed. Do not submerge the recorder in water. At the end of their useful lives, all NorthEast Monitoring Inc. products should be disposed of following local ordinances. Appendix B: Pacemaker Detection The recorder has a built-in pacemaker detection capability. This was designed to overcome the problems inherent with the analysis of Holter recordings from patients with pacemakers. -
Page 16: Appendix C: Accessories
NEMH238. Lanyard for 3-lead adapter nation paths for this command can be any other path but spaces are not allowed in the path or file NEMH226. DR400 docking station. name. NEMP00511. USB Power Port Adapter LV Sun with 3’ power cord. -
Page 17: Appendix E: Technical Considerations
Use the PCPatch to erase, update and to pre- pare the DR400 for your next patient, however, you should only use the LX Remote software to copy the file off of the DR400 when the procedure is complete. Network Installations... -
Page 18: Appendix F: Emc Information
Guidance and manufacturer’s declaration – electromagnetic emissions The Northeast Monitoring DR400 Recorder is intended for use in the electromagnetic environment specified below. The customer or user of the Northeast Monitoring DR400 Digital Recorder should ensure that it is used in such an environment. - Page 19 Appendices: Appendix F: EMC Information Guidance and manufacturer’s declaration – electromagnetic immunity The Northeast Monitoring DR400 is intended for use in the electromagnetic environment specified below. The customer or user of the recorder should ensure that it is used in such an environment.
- Page 20 Appendices: Appendix F: EMC Information Guidance and manufacturer’s declaration – electromagnetic immunity The Northeast Monitoring DR400 Recorder is intended for use in the electromagnetic environment specified below. The customer or user of the recorder should ensure that it is used in such an environment.
- Page 21 Recommended separation distances between portable and mobile RF communications equipment and the Northeast Monitoring DR400 Digital Recorder The Northeast Monitoring DR400 Digital Recorder is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer of the user of the recorder can help...
