NorthEast Monitoring DR400 Quick Start Manual
Hide thumbs Also See for DR400:

Advertisement

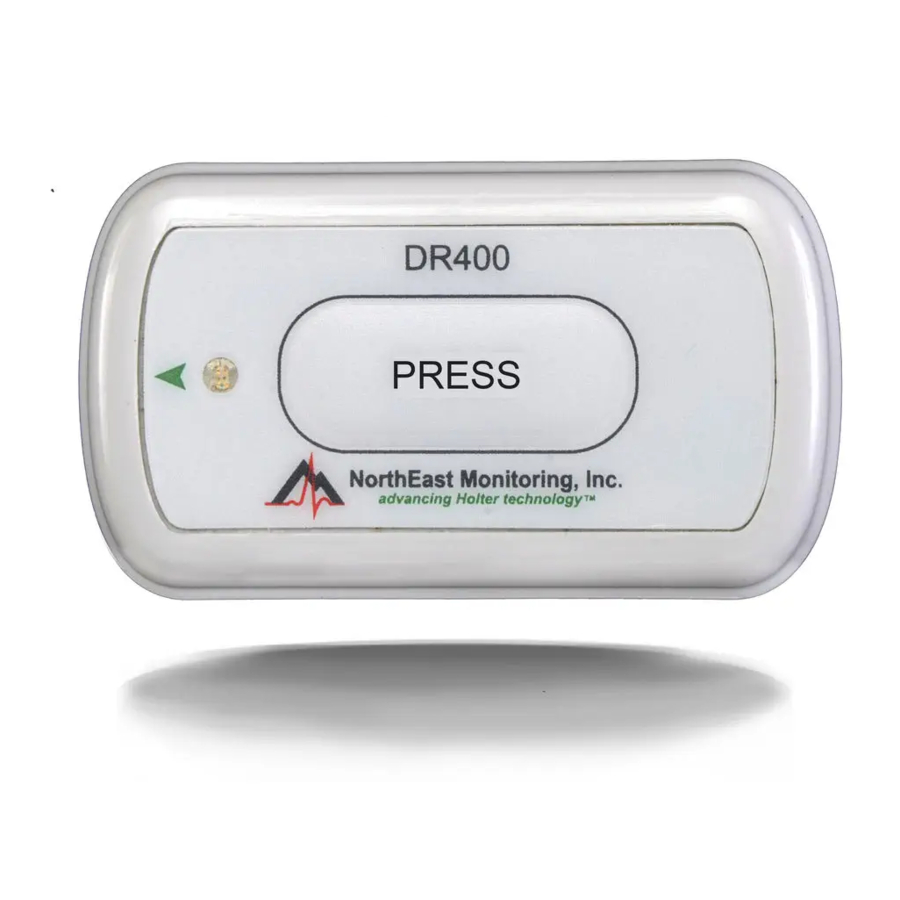

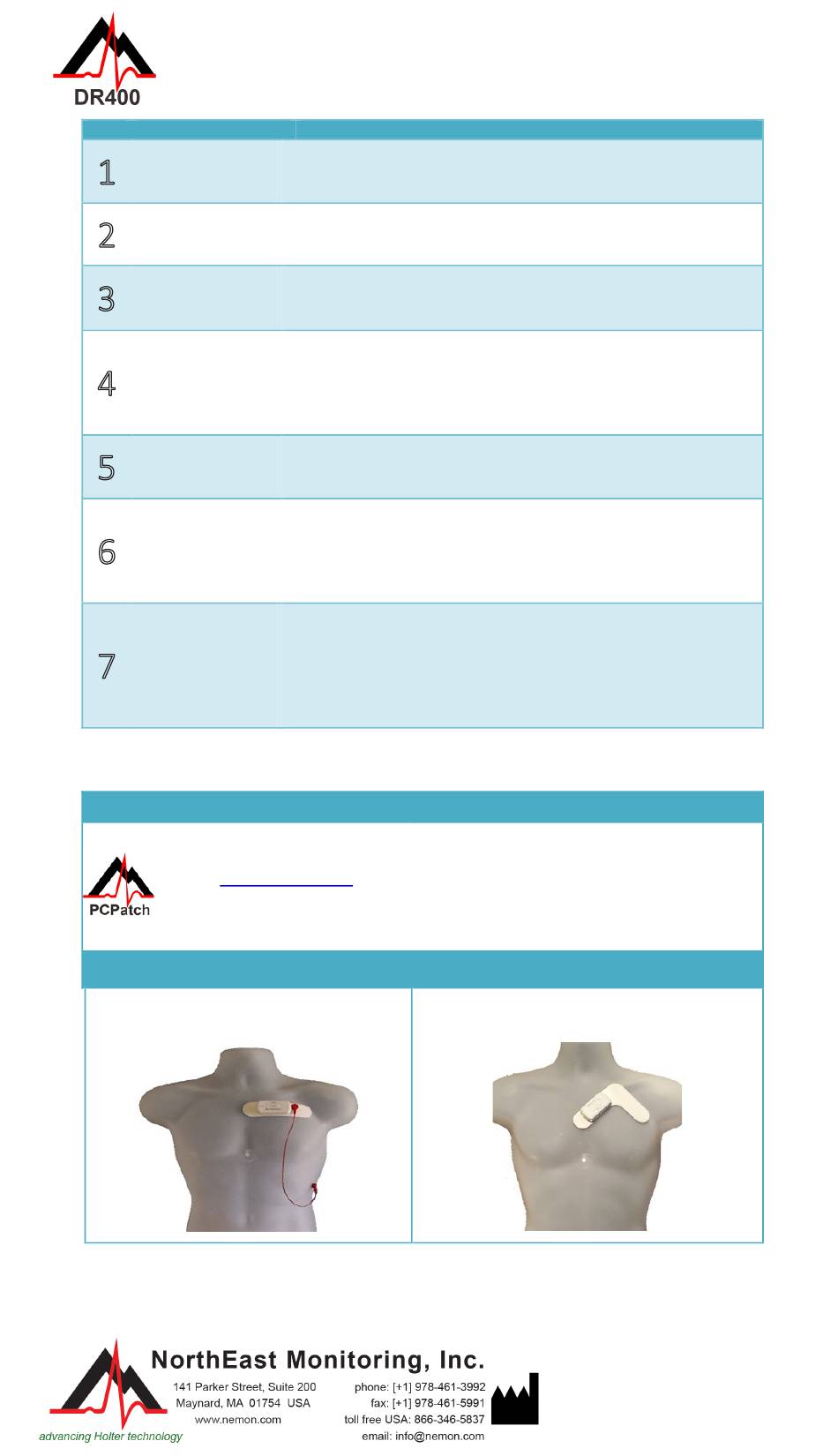

DR400 Quick Start Guide -
STEP
D
ESCRIPTION
1
Fully charge the
DR400
2
Install and run
PCPatch utility
Erase DR400 and
3
enter Patient ID
using PCPatch
4
Prepare patient
Prepare DR400
5
and attach to
patient
Start Recording
by holding DR400
6
PRESS button
down until green
light goes out
For Holter
analysis:
7
Remove DR400
from patient and
upload data via
PCPatch
Download PCPatch at
and install on PC where
analysis software is installed.
1-lead patch (1CH)
shown with optional lead wire (3CH)
To purchase more patch electrodes contact your distributor or go to www.nemon.com
Download and install the PCPatch utility at
www.nemon.com before getting started.
• Use docking station to charge DR400 using power source or PC
• DR400 will flash orange while charging, and flash green every 4
seconds when fully charged
• If you have not already done so, download PCPatch utility at
www.nemon.com and install on PC where analysis or remote software
resides. Run the PC Patch utility
• Place DR400 into docking station and attach to PC
• Erase, Enter Patient ID and Update Settings at this time
• Remove DR400 from docking station when flashing green
• Determine the best location to attach the patch and lead wire
• Before attaching, prepare the patient's skin. If the patient has hair in any
of the patch site, shave it with a safety razor. Use an alcohol pad and
rub the sites briskly until the skin reddens.
• Let the skin air dry before proceeding
• Attach 1-lead electrode patch (1CH), 1-lead electrode patch w/ lead wire
(3CH) or 3-lead electrode patch (3CH) to the DR400 recorder
• Remove backing from leads and attach firmly to patient
• If you have the Bluetooth USB adapter, you can view the hook-up and
ECG quality via the PCPatch utility at start up
• DR400 will flash green, for up to 60 minutes, at start of recording
• At any time, hold down PRESS button until green light starts flashing to
transmit Bluetooth signal to view ECG via PCPatch utility
• Remove from patient and plug DR400 into docking station that is
attached to PC. (The DR400 will stop recording after 2 minutes.)
• Start PCPatch utility to save DR400 Holter data to HE/LX Analysis or LX
Remote patient directory
• Open analysis software to view and analyze patient data or send LX
Remote file at any time

The PCPatch Utility

www.nemon.com

Hook-up Guide

S
/H
TEPS
INTS
Note: You do not need a Bluetooth USB
Adapter to use the DR400. The adapter is only
required to view ECG using the PCPatch utility.
Contact your distributor to find out more about
this feature.
3-lead patch (3CH)
Rev B
Copyright 2020
Last updated: November 23, 2020
NEMM049 - Rev-E - English
