STEP
D
ESCRIPTION
1
Fully charge the
DR400
Enter Patient ID
2
using PCPatch
Utility
3
Prepare patient
Prepare DR400
4
and attach to
patient
Start Recording
by holding the
5
DR400 "EVENT"
button down
until green light
goes out
Stop Recording
6
and Upload data
for analysis
The PCPatch Utility
Download PCPatch at
and install on PC where analysis software
Note: You do not need a Bluetooth USB
Adapter to use the DR400. The adapter is only
required to view ECG using the PCPatch utility. Contact
your distributor to find out more about this feature.
If using the 1-lead electrode patch with the optional
ECG lead wire:
• Attach the ECG lead wire first
• ECG lead wire attaches to
snap closest to USB port
 The lead plastic should cover
the USB port
To attach the 1-lead electrode
patch for 3CH recording:
 Patch goes on diagonally
 Press down firmly so that all
snaps are locked in place
To purchase more patch electrodes contact your distributor or go to www.nemon.com

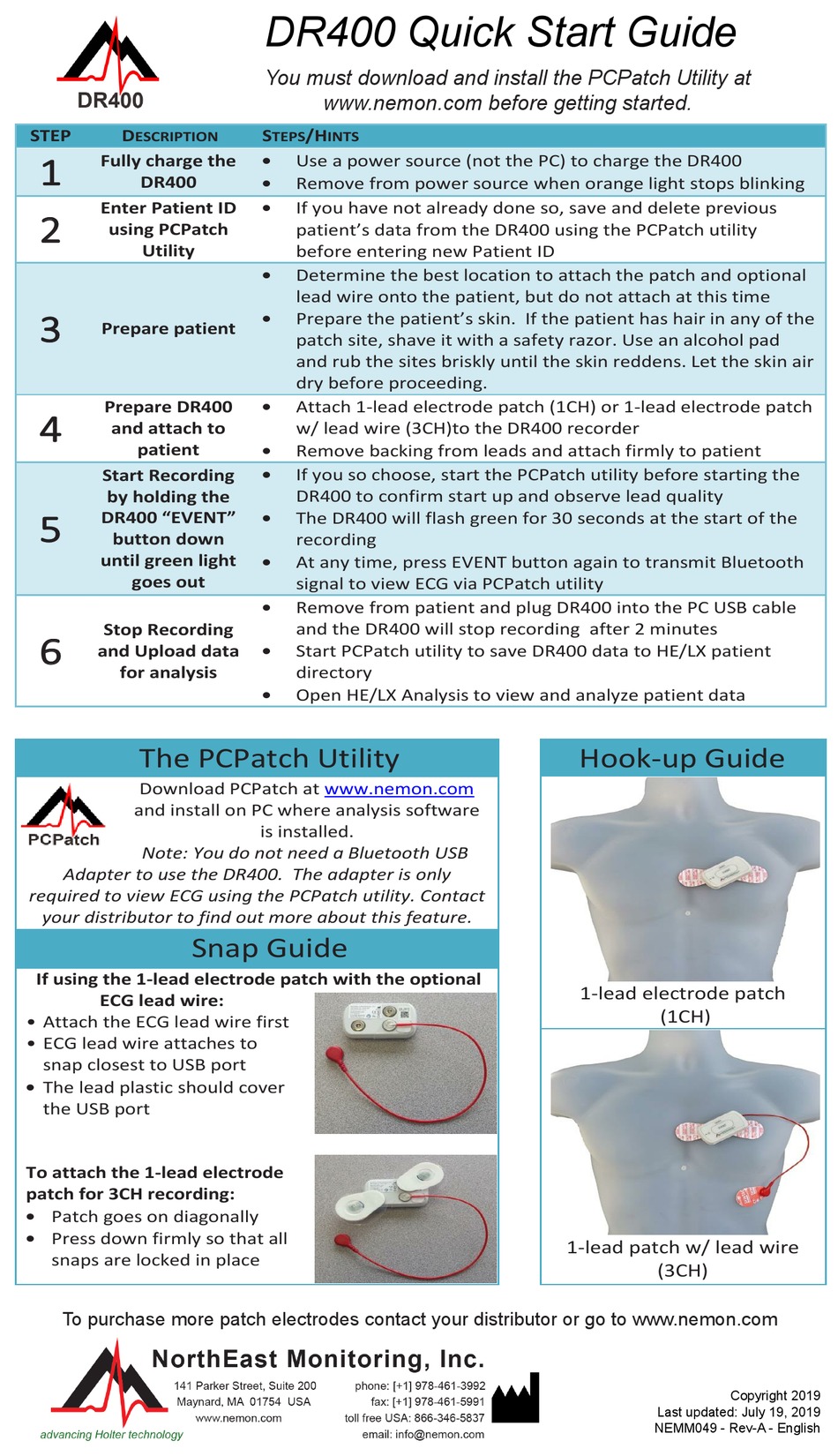

DR400 Quick Start Guide

You must download and install the PCPatch Utility at
www.nemon.com before getting started.
S
/H
TEPS
INTS
Use a power source (not the PC) to charge the DR400
Remove from power source when orange light stops blinking
If you have not already done so, save and delete previous
patient's data from the DR400 using the PCPatch utility
before entering new Patient ID
Determine the best location to attach the patch and optional
lead wire onto the patient, but do not attach at this time
Prepare the patient's skin. If the patient has hair in any of the
patch site, shave it with a safety razor. Use an alcohol pad
and rub the sites briskly until the skin reddens. Let the skin air
dry before proceeding.
Attach 1-lead electrode patch (1CH) or 1-lead electrode patch
w/ lead wire (3CH)to the DR400 recorder
Remove backing from leads and attach firmly to patient
If you so choose, start the PCPatch utility before starting the
DR400 to confirm start up and observe lead quality
The DR400 will flash green for 30 seconds at the start of the
recording
At any time, press EVENT button again to transmit Bluetooth
signal to view ECG via PCPatch utility
Remove from patient and plug DR400 into the PC USB cable
and the DR400 will stop recording after 2 minutes
Start PCPatch utility to save DR400 data to HE/LX patient
directory
Open HE/LX Analysis to view and analyze patient data
www.nemon.com
is installed.
Snap Guide
Hook-up Guide
1-lead electrode patch
(1CH)
1-lead patch w/ lead wire
(3CH)
Last updated: July 19, 2019
NEMM049 - Rev-A - English
Copyright 2019
