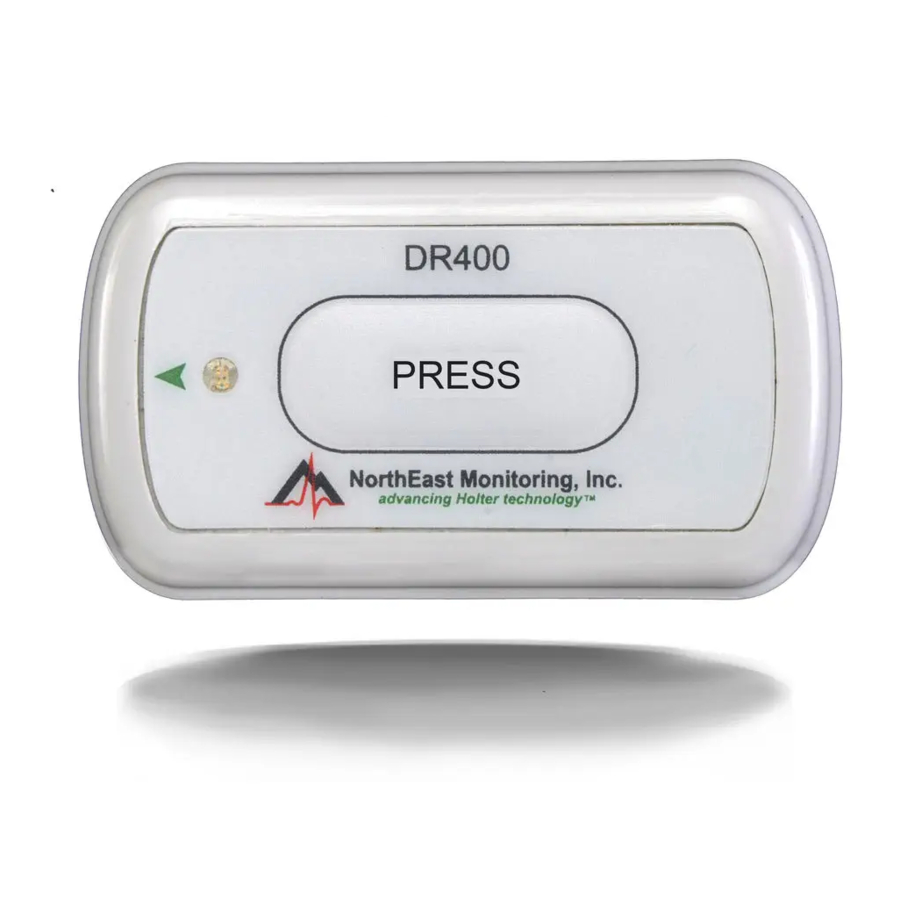

NorthEast Monitoring DR400 Quick Start Manual

DR400 Quick Start Guide -
• Download PCPatch at www.nemon.com and install on PC where analysis
software is installed and/or where patients are hooked up
• Note: You do not need a Bluetooth USB Adapter to use the DR400. The
adapter is only required to view ECG using the PCPatch utility
• Contact your distributor to find out more about this feature
Prepare patient:
• Determine best location to attach the patch and lead wire
• Before attaching, prepare the patient's skin. If patient has hair in any of the patch site, shave it
with a safety razor
• Use an alcohol pad and rub the sites briskly until the skin reddens
Let the skin air dry before proceeding
•
1-lead patch (1CH)
shown with optional lead wire (3CH)

Steps: Description:

1
Fully charge the DR400
Install and run PCPatch
2
utility
Prepare DR400 for
3
patient
Attach patch to DR400
4
and to patient
For Holter analysis,
remove DR400 from
5
patient and upload data
to PC
Contact your NorthEast Monitoring distributor to purchase patches.
Download and install the PCPatch utility at
www.nemon.com before getting started.

The PCPatch Utility

Hook-up Guide

Steps/Hints:
• Use docking station to charge DR400 using power source
• DR400 will flash orange while charging, and flash green
every 4 seconds when fully charged
• If you have not already done so, download PCPatch utility at
www.nemon.com and install on PC where analysis software
or where patients are hooked up. Start the PC Patch utility
• Place DR400 into docking station and attach to PC
• Erase, Enter Patient ID and Update Settings at this time
• New with DR400 v5.22...Start recording by pressing "Start
DR400" and then remove from PC
• Attach 1-lead electrode patch (1CH), 1-lead electrode patch
w/ lead wire (3CH) or 3-lead electrode patch (3CH) to the
DR400 recorder
• Remove backing from leads and attach firmly to patient
• Patient is good to go
• Remove from patient and plug DR400 into docking station
that is attached to PC. (The DR400 will stop recording after 2
minutes.)
• Save DR400 Holter data to HE/LX Analysis or LX Remote
patient directory
• Open Patient folder to view and analyze patient data or send
LX Remote file at any time
