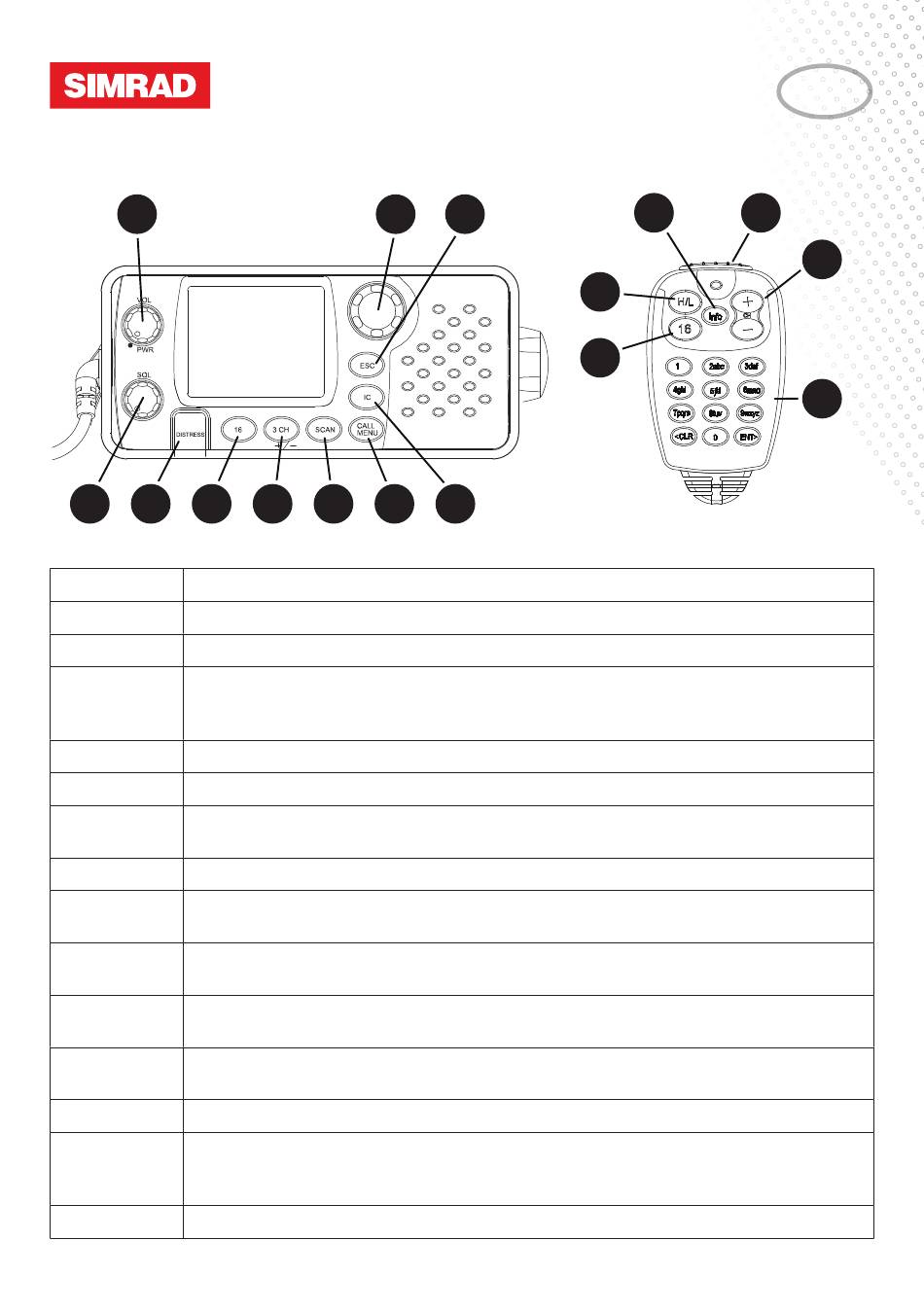

Simrad RS25-E Quick Reference Manual

1
2 3 4
1
Power and volume knob
2 Squelch/treshold level knob
3 DSC Distress calls key
Priority channel key. When pressed all other modes are cancelled, and the
4
unit is tuned in to channel 16 on high power. Pressed again the unit will
return to normal operation
5 Favourite channels key, used to toggle between favorite channels
6 Scan key
Menu key. A short press opens the DSC menu used to make DSC calls. A
7
long press displays the radio menu
8 Intercom key. Used with the optional AHK05E handset
Escape key, used to clear incorrect entries, to exit from a menu without
9
saving changes, and to back up to the previous screen
Rotary key. Turn to select a channel or a menu item, push to activate the
10
Enter function
Transmission Power key. Press to toggle between high or low transmission
11
power
Information key. Press to toggle through the INFO displays for
12
environmental and radio data
13
Push To Talk (PTT) key
Channel select keys. Use single presses to step through available
14 channels one at a time, or hold down to scroll rapidly through available
channels
15 Alpha-numeric keys used to enter the channel numbers and text
RS25-E
Quick Reference Guide
10
5 6 7
9
11
4
8
EN
12 13
14
15
