Disassembly

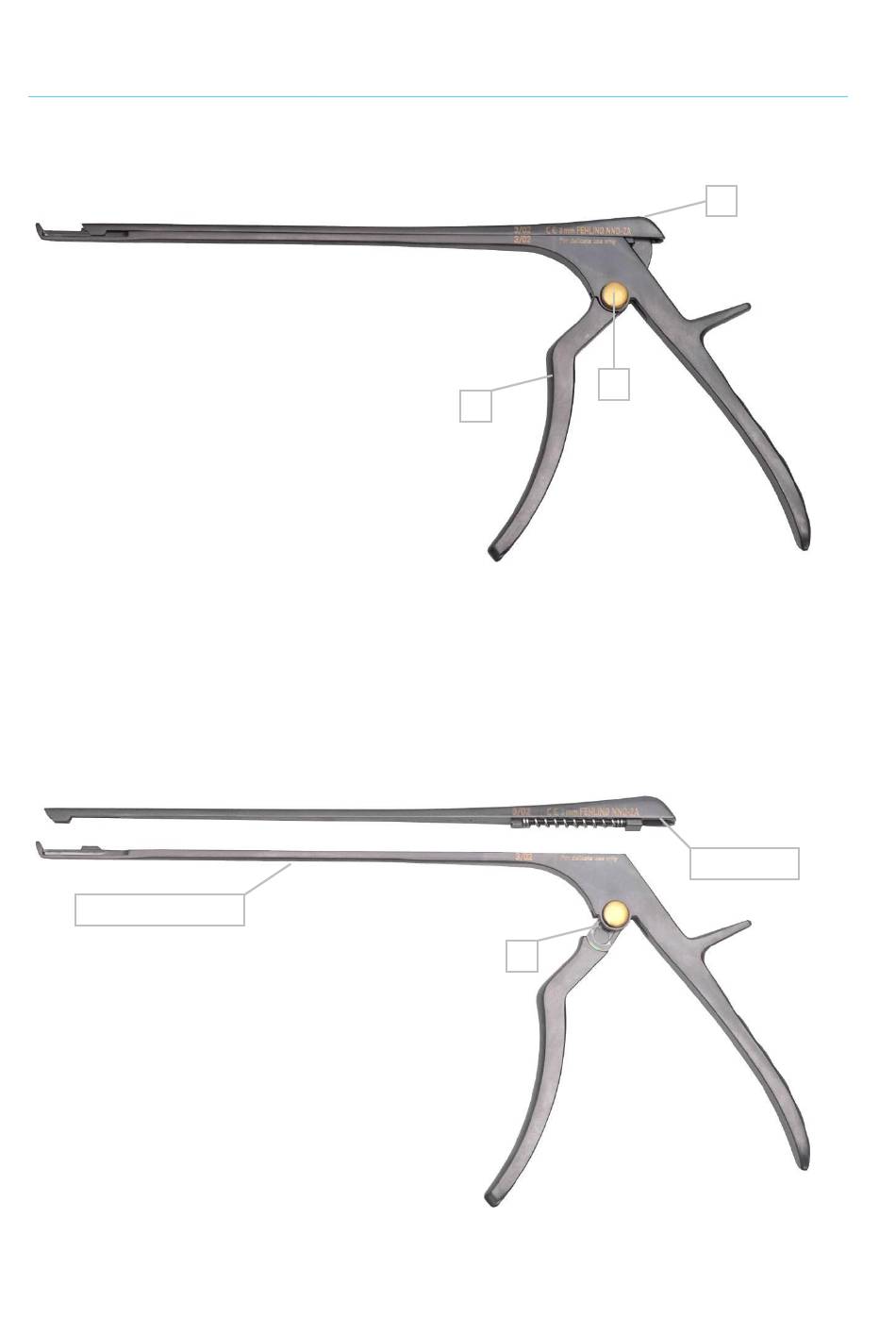

a) Take the punch in both hands with the label showing upward.
b) Firmly depress the golden button (no. 1) to unlock the handle (no. 2).
c) Pull the handle (no. 2) downward in order to be able to remove the slider (no. 3).
ATTENTION: Hold the slider firmly so that it cannot drop out uncontrollably.
d) Now the slider (no. 3) comes off its holder and can be removed easily. Leave the handle
in the completely extended position for processing (cf. no. 4). Now both component parts
(punch body and slider) can be processed.
e) Always process the two component parts in pairs in the same receptacle.
