FEHLING
INSTRUMENTS
®
CERAMO
CONCEPT X PUNCHES
1

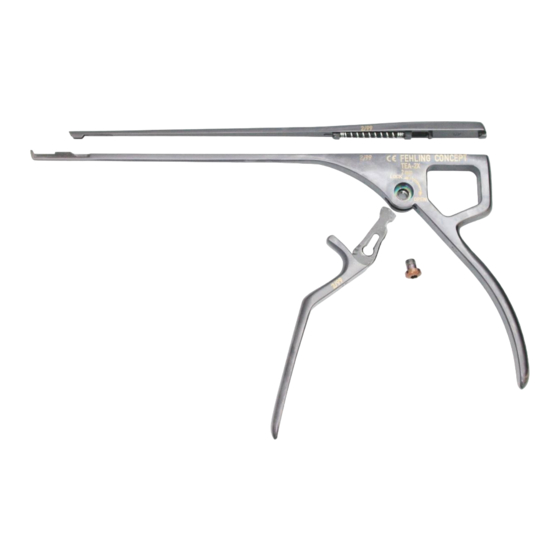

Disassembly

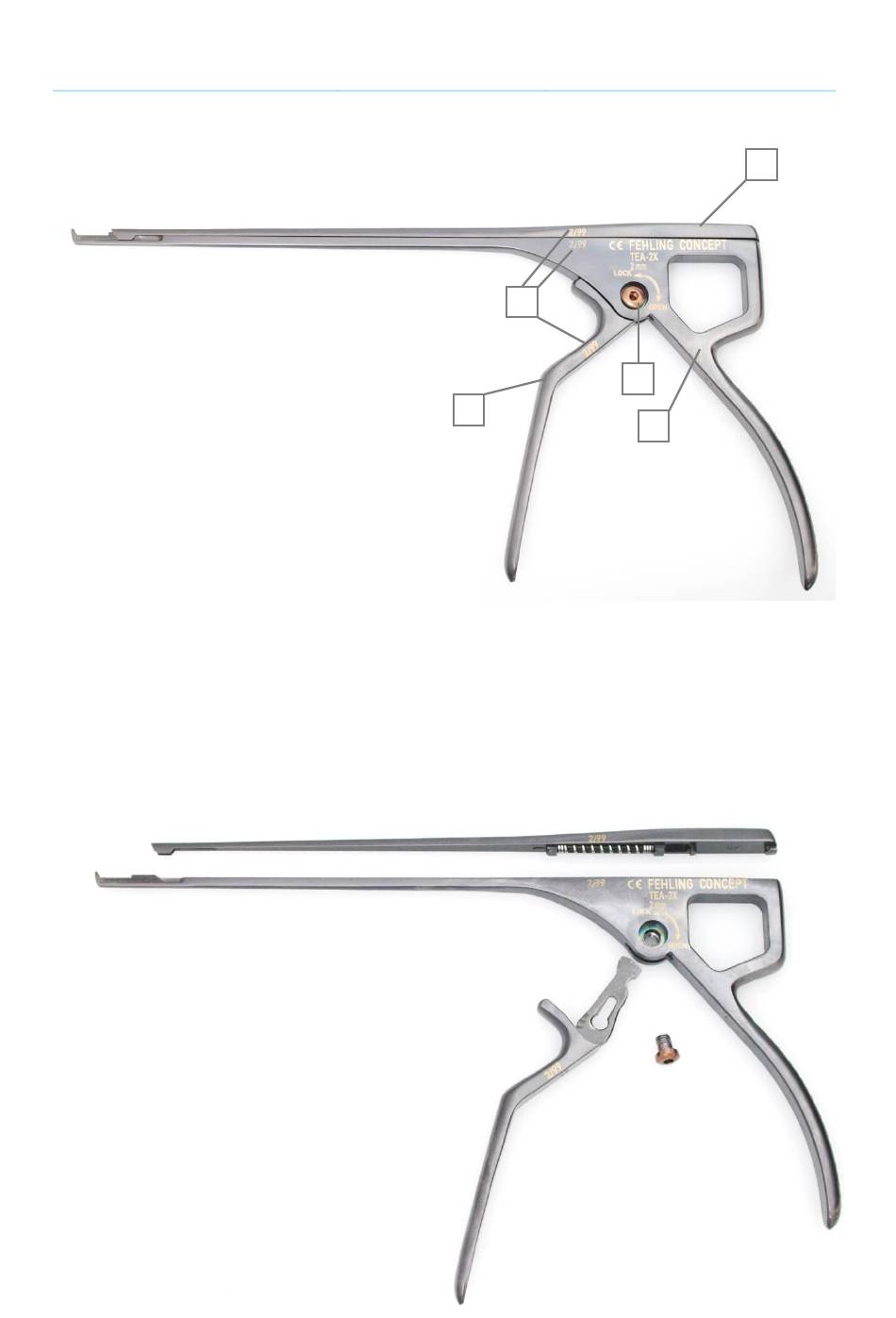

a) For disassembly place the punch on a solid worktop. Unscrew the hex head screw
(pos.1) by turning it clockwise using the supplied screwdriver TXX-0X, and remove.
b) Pull the anterior handle element (pos.2) downward to separate it from the punch body
(pos. 4). To ease the unlocking the slider should be pushed toward punch foot at the
same time. ATTENTION: When removing the handle element, the slider (pos.3) is re-
leased automatically.
c) Now the slider (pos.3) can be easily removed from the punch body.
d) Always clean the four components in the same container.
M06
Assembly INSTRUCTIONS
3-12/13
5
2
3
1
4
1
Advertisement
Table of Contents
Related Manuals for Fehling Instruments CERAMO CONCEPT X PUNCHES
Summary of Contents for Fehling Instruments CERAMO CONCEPT X PUNCHES
- Page 1 FEHLING INSTRUMENTS ASSEMBLY INSTRUCTIONS 3-12/13 ® CERAMO CONCEPT X PUNCHES Disassembly a) For disassembly place the punch on a solid worktop. Unscrew the hex head screw (pos.1) by turning it clockwise using the supplied screwdriver TXX-0X, and remove. b) Pull the anterior handle element (pos.2) downward to separate it from the punch body (pos.
- Page 2 FEHLING INSTRUMENTS ASSEMBLY INSTRUCTIONS 3-12/13 Assembly Each CONCEPT X punch consists of four components: punch body, slider, anterior han- dle element, and screw. Only components belonging to the same unit may be assem- bled, with the exception of the screw which fits all punches. Component compatibility can be verified by means of the identification number (pos.5) that is marked on all compo- nents (except the screw).
