Fehling Instruments CERAMO RICHTER X Assembly Instructions

Rongeurs

FEHLING

INSTRUMENTS

CERAMO

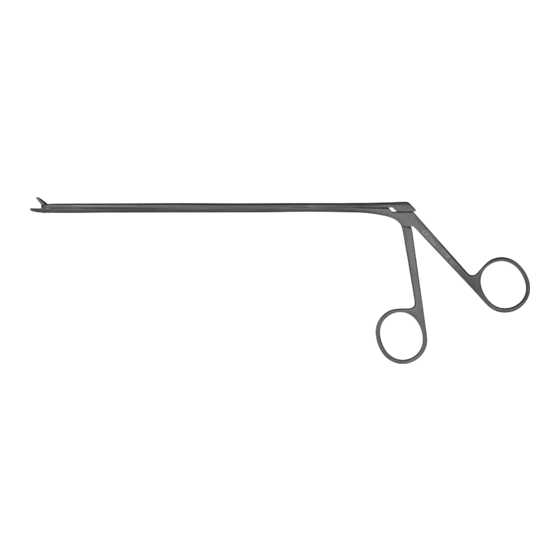

RICHTER X Rongeurs

WARNING:

All components of the RICHTER X rongeur are very delicate. The components may get

bent or break off if they are assembled or disassembled incorrectly. All assembly steps must be exe-

cuted with special care and without applying any force.

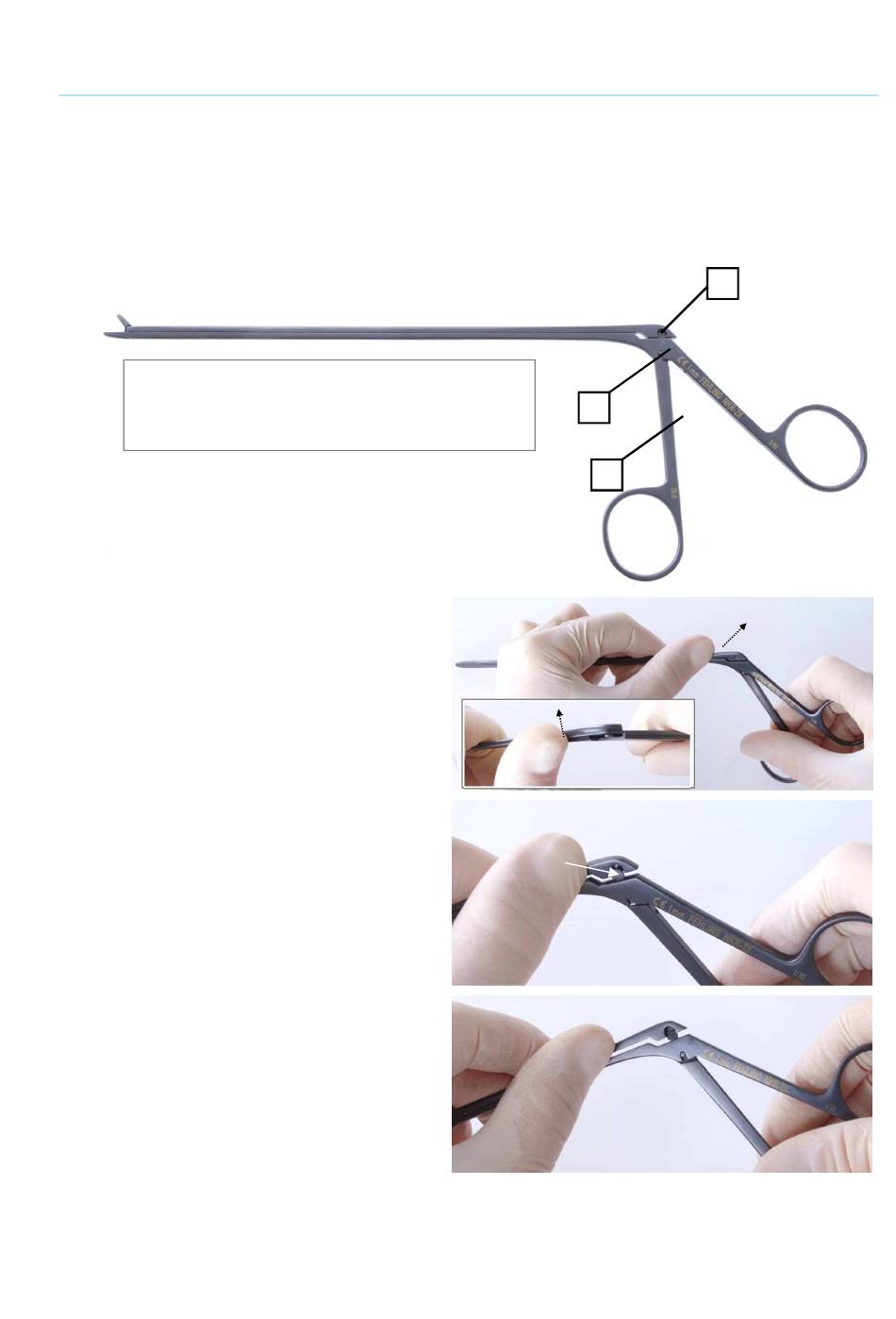

1 Disassembly

1: rongeur body = shaft and fixed handle part

2: moving handle part

3: slider

Take the closed rongeur (mouth is closed) in

both hands, as shown in figure 2, and cautiously

push the slider out of the guiding axle using the

thumb of the left hand.

Figure 3: Push the slider back so far that the

guiding pin of the moving handle part (see white

arrow) is released from its retainer in the slider.

Figure 4: Let the slider slide upward and let it rest

loose on the guiding pin of the moving handle

part.

M 24 EN

2-09/18

Fig. 2

Fig. 3

Assembly INSTRUCTIONS

Fig. 1

Fig. 4

Table of Contents

Do you have a question about the CERAMO RICHTER X and is the answer not in the manual?

Page 1 FEHLING M 24 EN INSTRUMENTS ASSEMBLY INSTRUCTIONS 2-09/18 ® CERAMO RICHTER X Rongeurs WARNING: All components of the RICHTER X rongeur are very delicate. The components may get bent or break off if they are assembled or disassembled incorrectly. All assembly steps must be exe- cuted with special care and without applying any force.
Page 2 FEHLING M 24 EN INSTRUMENTS ASSEMBLY INSTRUCTIONS 2-09/18 Fig. 5 Figure 5: Pull the moving handle part downward out of the rongeur body. Fig. 6 Figure 6: Pull the slider towards the fixed handle part to the stop until the mouth is fully open. Then the connecting pins of the slider are pulled out of their retainers in the shaft, and thus the slider is freely movable within its axle.
Page 3 FEHLING M 24 EN INSTRUMENTS ASSEMBLY INSTRUCTIONS 2-09/18 Take the rongeur in both hands as shown in fig- Fig. 9 ure 9, and fold the slider down towards the shaft. At the same time, pull the slider towards the fixed handle part so that the mouth of the rongeur opens completely.
