The buttons perform the following operations in this mode:
•
EXIT - returns to the Service Menu (figure 4-1).
•
NEXT steps to the next page.
•
PREV steps to the previous page.
•
Softkey (B) is not used.
Page 1 identifies (see figure 4-2):
•
System Model (Model)
•
Main Software Version (Main SW Ver)
•
Main Boot Software Version (Main Boot SW Ver)
•
DSP Software Version (DSP SW Ver)
•
DSP Boot Software Version (DSP Boot SW Ver)
The software version identified on the bottom of the processor represents the system
software configuration (i.e., a collective designator for all software/firmware installed
within the unit).
Page 2 displays (see figure 4-3):
•
Heading Type (XYZ, Step or None)*
•
Heading Valid Flag (Flag, No Flag or N/A)
•
Flag Sense Jumper (Open, Closed or N/A)*
•
Heading Value (XYZ synchro/ stepper relative in degrees, or N/A)
•
State of the Inhibit Line (On or Off)
•
Antenna Mounting (Top or Bottom)*
* As read from the configuration jumpers in the mating connector.
WX-950
Installation Manual
NOTE

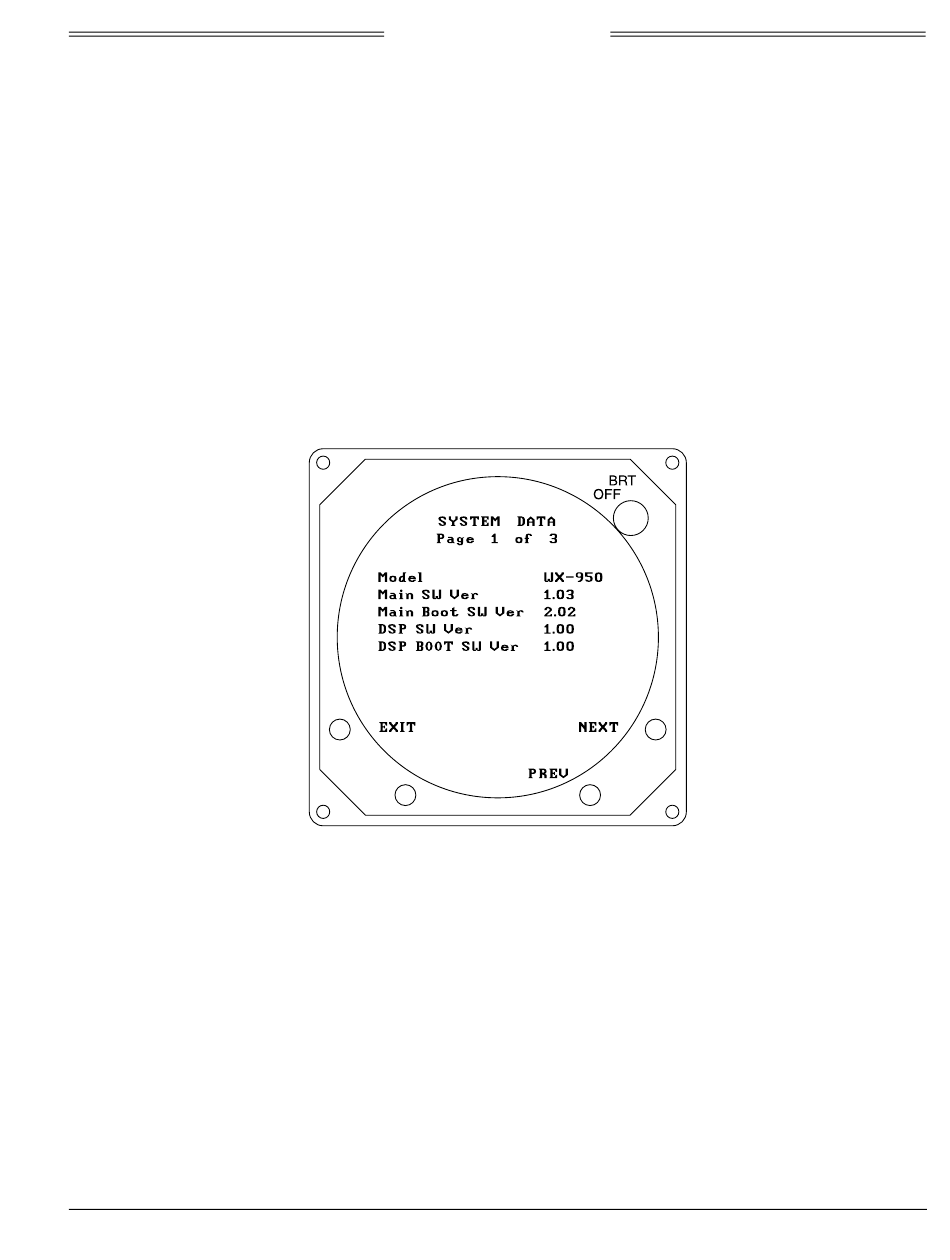

Figure 4-2. System Data, Page 1
