Fault Log displays the results in the following format:
where:
##
HHHHH:MM
The total elapsed run-time is displayed in the lower middle portion of the screen (Run Time
HHHHH:MM).
The run-time clock does not increment when the Service Menu is active.
If fewer than 20 faults have been recorded, the portion of the screen used to display the fault data will be
partially blank.
If the fault log is empty, the following message is displayed:
If, due to a failure of non-volatile memory, the fault log cannot be displayed, the following message is
displayed:
Press the EXIT key to return to the Service Menu. Softkeys (B), (C), and (D) are not used.
4.4.3 CRT Test Pattern
The CRT test pattern screen will display an 8 x 8 grid of squares. The test pattern is used by factory
technicians to verify that the CRT is aligned. The test pattern, as shown in figure 4-6, is displayed by
selecting that option from the Service Menu (i.e., press SELECT with CRT Test Pattern high-lighted).
Installation Manual

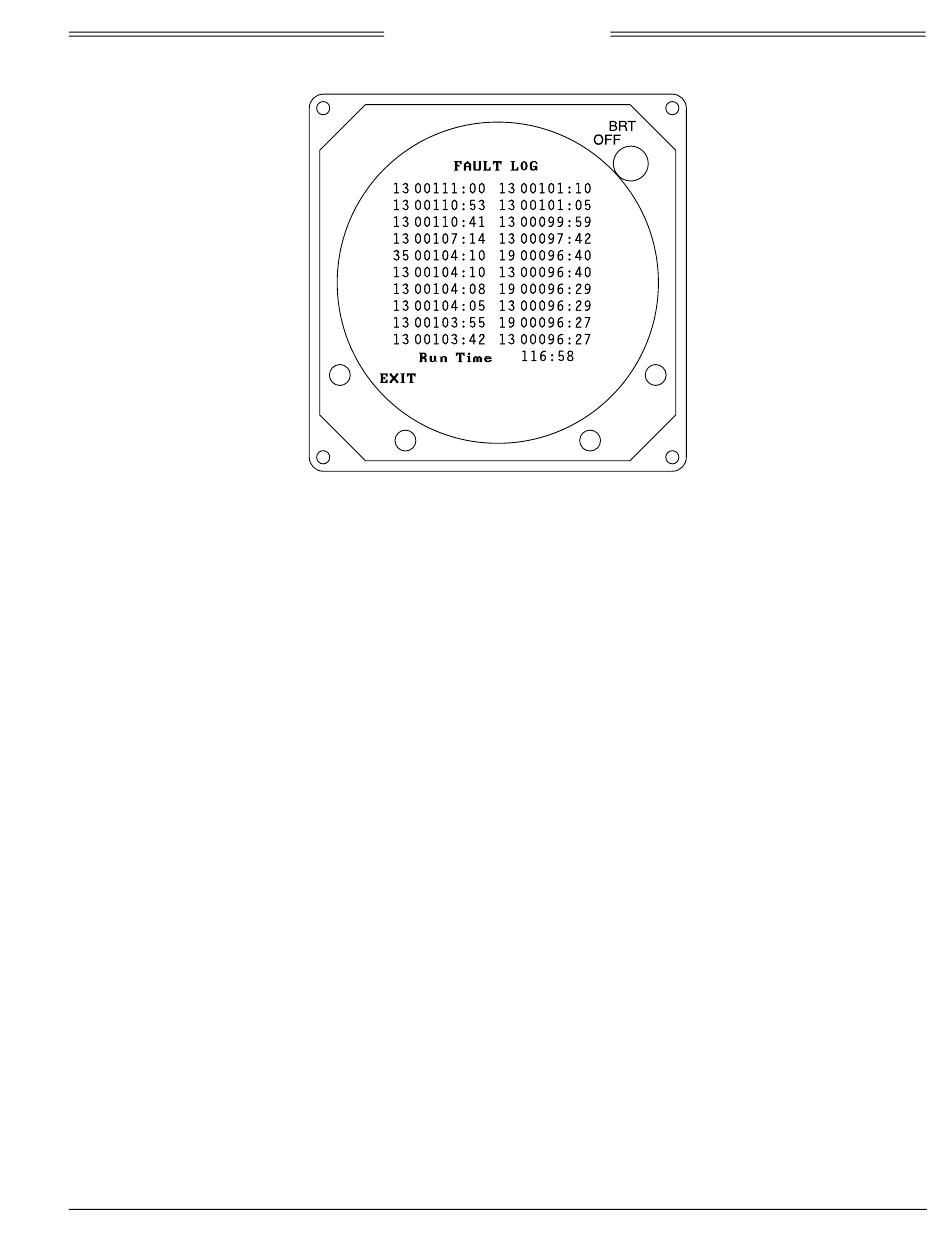

Figure 4-5. Fault Log
## HHHHH:MM
= Fault identifier code.
= Run-time (in hours and minutes) at which fault occurred.
NO FAULTS DETECTED
DATA NOT AVAILABLE
WX-950
NOTE
4-5
Rev. C
