Page 3 displays (see figure 4-4):
•
Avionics Bus Voltage
•
Internal Voltage Values (+5.0 VDC, +15.0 VDC, and -15.0 VDC)
•
Processor Temperature (degrees C)
4.4.2 Fault Log
The 20 most recent errors detected by the system self-test are saved in the Fault Log. For each error, the
corresponding error code and run-time of occurrence are saved. The fault log, as shown in figure 4-5, is
displayed by selecting that option from the Service Menu (i.e., press SELECT with Fault Log high-
lighted). Note that heading errors ( i.e., error 22 (Invalid XYZ Input) and error 23 (Invalid Heading Ref.))
are not logged.
4-4
Rev. C
WX-950
Installation Manual

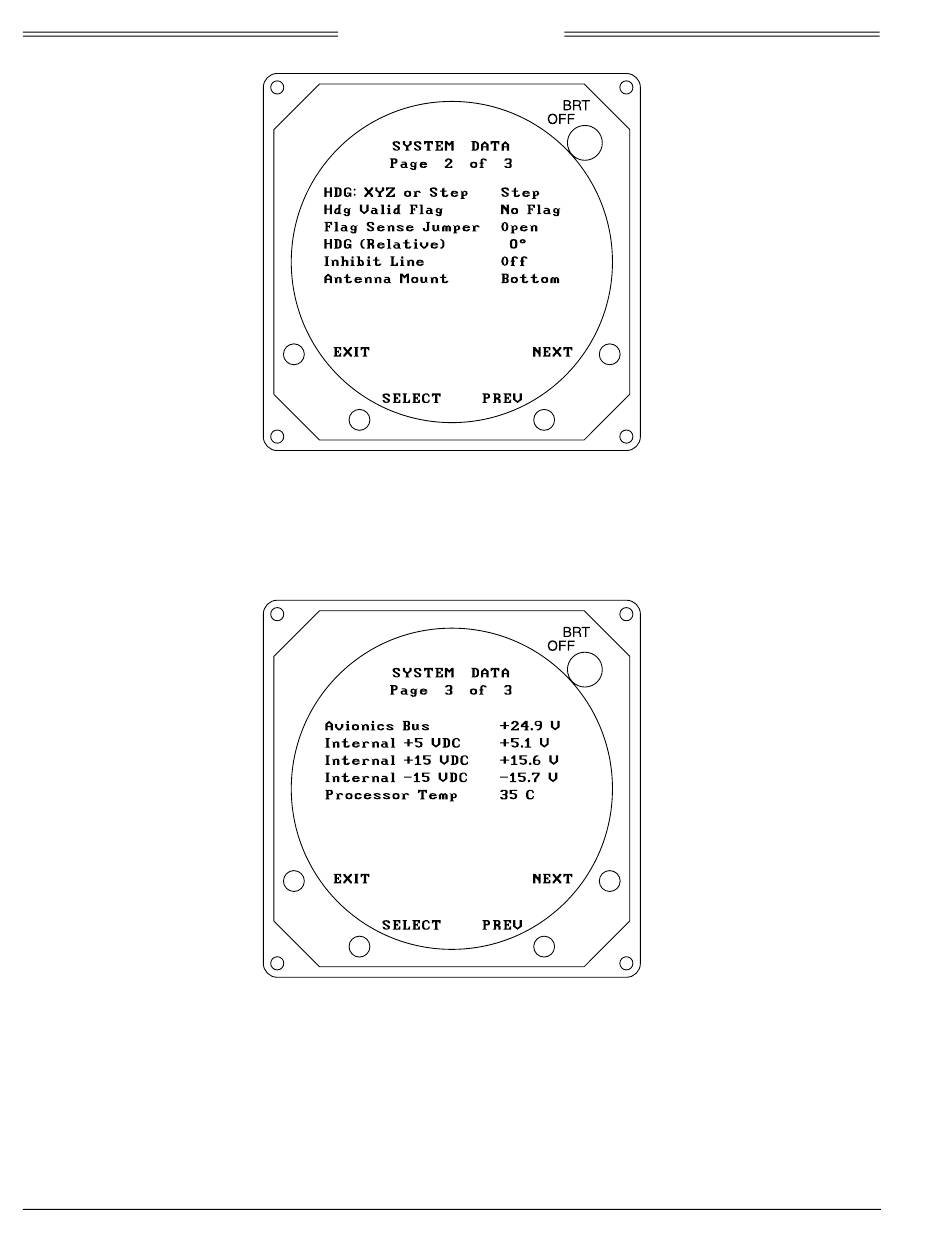

Figure 4-3. System Data, Page 2
Figure 4-4. System Data, Page 3
