3.1 INTRODUCTION

This section contains instructions for post-installation checkout of the WX-950. Complete operating
instructions for the WX-950 are provided in the Pilot's Guide supplied with each system.
The post-installation check procedures in this chapter assume familiarity
with the set-up and operation of the WX-PA Portable Analyzer Kit
(P/N 78-8060-5791-1).

3.2 CONTROLS

All operating controls are located on the front of the indicator. Figure 3-1 shows the location of the controls.
OFF/BRT
Switch
A, B, C, & D
Pushbuttons
Installation Manual
CHAPTER 3

INSTALLATION CHECKOUT

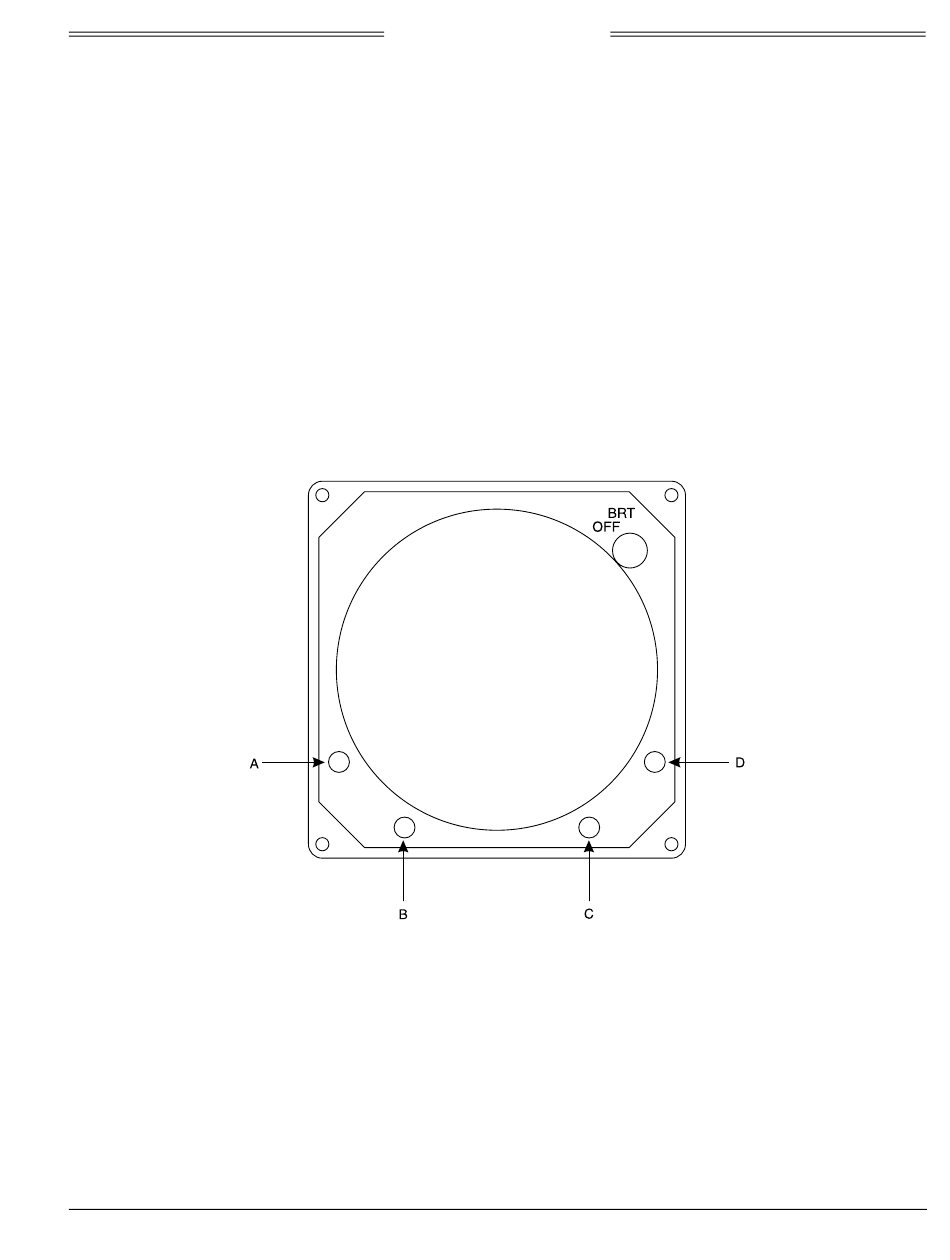

Figure 3-1. Controls
Power is applied by rotating the knob clockwise past the detent. Continued
clockwise rotation increases display brightness.
Also referred to as softkeys (A), (B), (C), and (D). In every operating mode a label
identifying the button function will be displayed next to the button.
WX-950
NOTE
3-1
Rev. C
