WX-950
Installation Manual

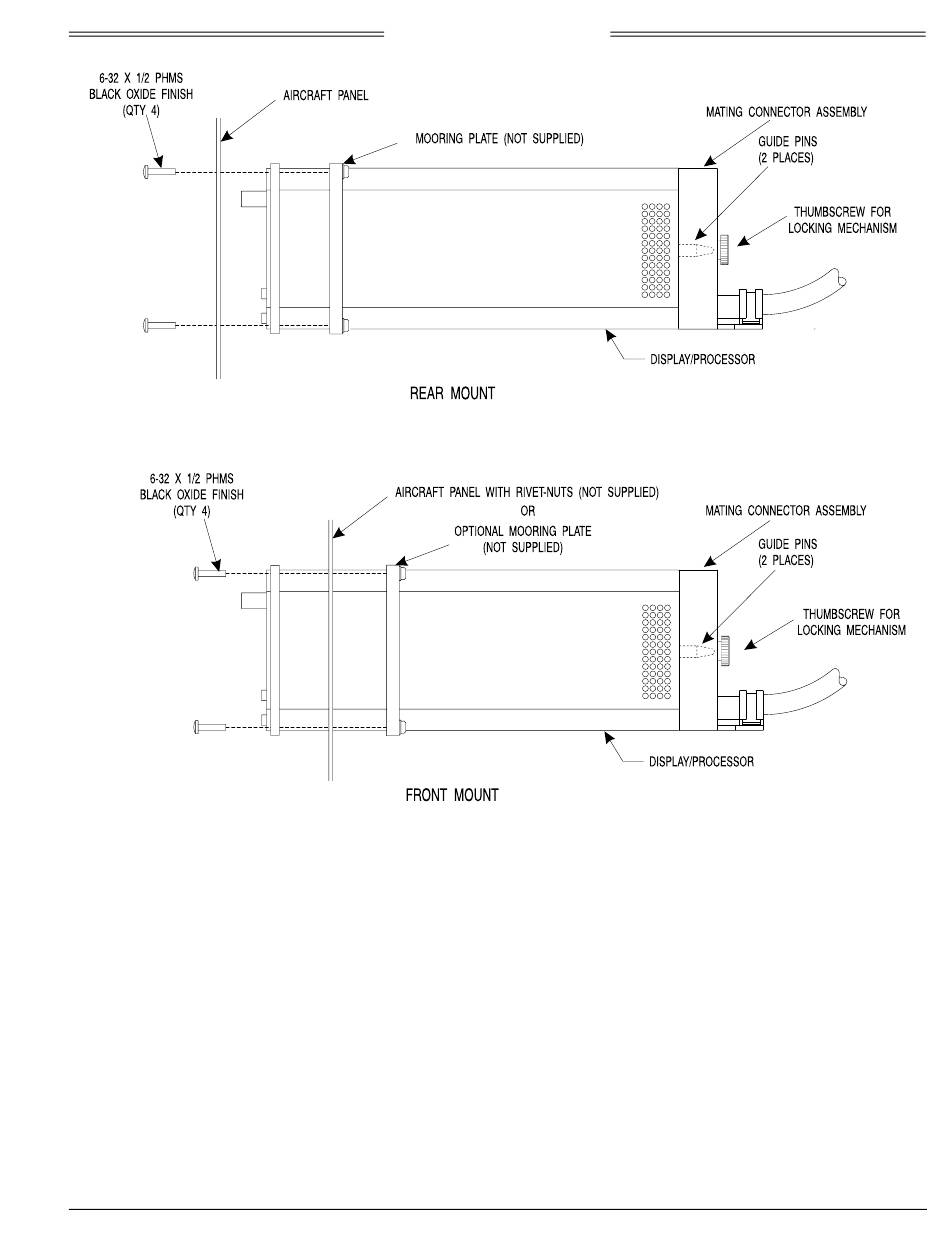

Figure 2-13. Display/Processor Installation
The mating connector assembly has been designed for easy blind mating. Simply align the connector
assembly with the guide pins at the rear of the display/processor and slide it in place. Lock by turning the
thumbscrew in a clockwise direction.
2.10 PERFORMANCE TEST
After the installation is completed do the installation checkout procedures detailed in chapter 3.
2-21
Rev. C
