SECTION 1 −SAFETY PRECAUTIONS FOR GMAW WELDING GUNS − READ BEFORE USING SR7 (MIG) 2018-01 Protect yourself and others from injury — read, follow, and save these important safety precautions and operating instructions. 1-1. Symbol Usage DANGER! − Indicates a hazardous situation which, if Indicates special instructions.
NOISE can damage hearing. READ INSTRUCTIONS. D Read and follow all labels and the Owner’s Noise from some processes or equipment can damage hearing. Manual carefully before installing, operating, or servicing unit. Read the safety information at D Check for noise level limits exceeding those the beginning of the manual and in each specified by OSHA.
SECTION 2 − MESURES DE SÉCURITÉ VISANT LES PISTOLETS DE SOUDAGE GMAW − À LIRE AVANT UTILISATION SR7(MIG)_2018−01_fre Pour écarter les risques de blessure pour vous−même et pour autrui — lire, appliquer et ranger en lieu sûr ces consignes relatives aux précautions de sécurité...
D Avoir recours à des écrans protecteurs ou à des rideaux pour D Utiliser des bouche-oreilles ou des serre-tête antibruit approuvés si protéger les autres contre les rayonnements les éblouissements le niveau de bruit est élevé. et les étincelles ; prévenir toute personne sur les lieux de ne pas D Avertir les personnes à...

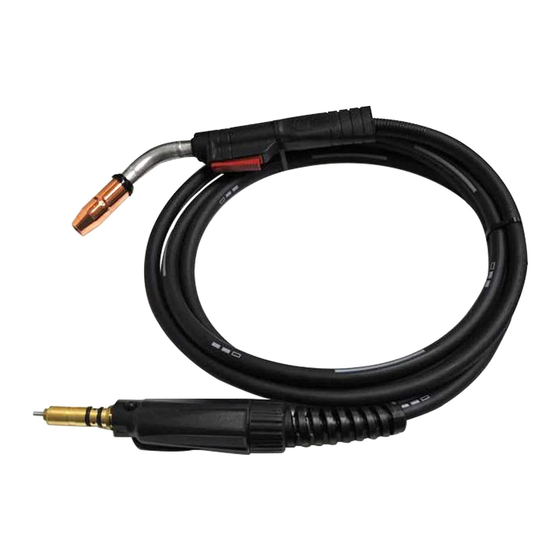

SECTION 3 − INSTALLATION 3-1. Specifications Air-Cooled Welding Gun For GMAW And FCAW Welding Note: Using gasless flux cored wire reduces gun duty cycle. M-25 Feeds .023 To .045 in. (0.6 To 1.1 mm) Hard Or Flux Cored Wires Duty Cycle Rating: 100%: 250 A With CO Shielding Gas;...
3-3. Installing Gun Gun Securing Knob Gun End Loosen knob. Insert gun end until it bottoms against drive assembly. Tighten knob. Gun Trigger Plug Insert into receptacle, and tighten threaded collar. Friction Terminals Some applications will require cutting off trigger plug and installing 0.250 female friction terminals onto end of leads.
SECTION 5 − MAINTENANCE & TROUBLESHOOTING 5-1. Removing Nozzle, Contact Tip, And Adapter, Changing Liner, And Cleaning Gun Casing Turn off welding power source/wire feeder. Nozzle Contact Tip Tip Adapter Head Nozzle Adapter Tube Wire size stamped on tip − check and match wire size.
5-2. Replacing Switch And/Or Head Tube Turn Off welding power source /wire feeder and disconnect gun. Remove handle locking nut. Slide handle. 4 Remove screw. Remove switch housing. Install new switch and connect leads (polarity is not important). Reassemble in reverse order. If replacing head tube, continue to end of figure.
5-3. Routine Maintenance Disconnect power Maintain more often before maintaining. during severe conditions. n = Check Z = Change ~ = Clean l = Replace Reference * To be done by Factory Authorized Service Agent Each Spool Of Wire n~ Nozzle and contact tip ~ Blow out gun casing Every Months...
Page 19
Effective January 1, 2018 (Equipment with a serial number preface of MJ or newer) This limited warranty supersedes all previous Miller warranties and is exclusive with no other guarantees or warranties expressed or implied. Warranty Questions? LIMITED WARRANTY − Subject to the terms and conditions below, 6 Months —...
